EN10253-4 SS304 Stainless Steel Buttwelding Fittings Order

Shanghai Zhucheng Fittings Manufacturing Co., Ltd. is a professional engineering service supplier with years of experience in the industrial piping system. Our product range includes carbon steel, stainless steel, and alloy steel pipes, fittings, and flanges—covering manufacturing, custom solutions, and sales.

European standard stainless steel buttwelding fittings are one of our core products. They reflect our commitment to quality and customer satisfaction. Thanks to this dedication, we have built strong, trust-based relationships with clients both locally and internationally.

One of our long-time customers, based in Singapore, regularly purchases SS304 buttwelding fittings for key European projects. European standards impose strict requirements on dimensional tolerances, wall thickness control, and chemical composition. Our technical team not only understands the subtle differences between various standards but also provides full technical support—from material test certificates to heat treatment processes. This ensures every batch meets the demands of complex industrial piping systems.

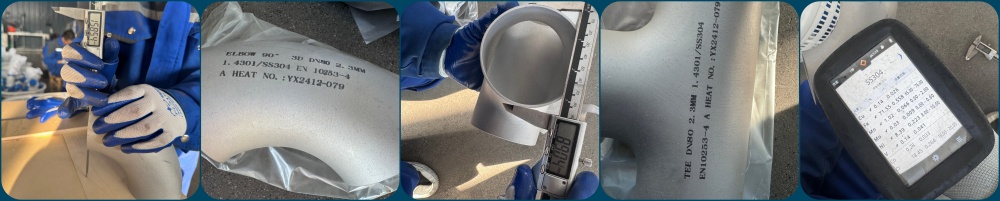

However, what truly strengthens this partnership goes beyond product quality. It is our attention to service that makes the difference. Recently, the client placed a urgent repeat order for SS304 buttwelding fittings. Upon receiving the order, we immediately scheduled production and proactively arranged air freight options to shorten delivery time. This ensured the materials arrived on schedule and kept the client’s project on track.

Purchase Details

These value-added services have shown our client that we are more than just a supplier—we are a reliable partner. This mutual trust has elevated our relationship from simple transactions to strategic collaboration.

What Are European Standard Stainless Steel Buttwelding Fittings?

European standard stainless steel buttwelding fittings are pipe connection components designed, manufactured, and tested according to European Norms (EN). They are widely used in pressure piping systems across industries such as oil & gas, chemicals, food processing, pharmaceuticals, and power generation.

"Buttwelding" means the fitting ends are welded directly to pipes, ensuring a leak-proof and durable connection. These fittings are essential for systems operating under high temperature, high pressure, or corrosive conditions. Unlike ASTM/ASME fittings, EN standard fittings follow different dimensional systems, tolerance levels, and material specifications. Therefore, when exporting to Europe or working on EN-based projects, strict compliance with European standards is a must.

Introduction to EN 10253-4

EN 10253-4 is the European standard for buttwelding fittings. Its full title is: *Butt-welding pipe fittings – Part 4: Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements*. The latest version is EN 10253-4:2025, published in July 2025, replacing the 2008 edition.

Scope

This standard applies to seamless and welded buttwelding fittings made from austenitic and duplex stainless steels. It covers elbows, concentric and eccentric reducers, equal and reducing tees, and caps. These fittings are suitable for pressure applications at room temperature, low temperature, or high temperature, as well as for fluid and gas transmission systems.

Types of Butt Weld Fittings

EN 10253-4 classifies fittings into two types：

Type A fittings: Butt-welding fittings with reduced pressure coefficients—suitable for lower pressure applications.

Type B fittings: Butt-welding fittings suitable for full working pressure—used in critical high-pressure systems.

Key Technical Requirements

The standard specifies:

Steel grades and chemical composition

Mechanical properties

Dimensions and tolerances

Inspection and testing requirements

Inspection documents (e.g., EN 10204 3.1/3.2 material certificates)

Marking rules

Protection and packaging requirements

EN 10253-4 is a harmonized standard linked to the EU Pressure Equipment Directive (PED 2014/68/EU). Compliance with this standard provides a "presumption of conformity" with PED essential safety requirements—making it a key entry requirement for the European market.

Types and Properties of SS304 Stainless Steel Butt Weld Fittings

SS304 Material Properties

SS304 (European grade 1.4301) is the most widely used austenitic stainless steel. Its chemical composition includes 17.5%–19.5% chromium and 8%–10.5% nickel, offering:

Excellent corrosion resistance in atmospheric, fresh water, and mild corrosive environments

Good mechanical strength: Tensile strength ≥ 520 MPa, Yield strength ≥ 210 MPa, Elongation ≥ 40%

Outstanding workability: Easy to cold form and weld

Low-temperature toughness: Maintains good impact resistance at sub-zero temperatures

Chemical Composition

Mechanical Properties

Types of EN10253-4 Stainless Steel Butt welding Fittings

According to EN 10253-4, SS304 buttwelding fittings include:

Elbows: 45°, 90°, and 180°

Bending radius: 2D, 3D, 5D—for changing flow direction

Reducers:

Concentric and Eccentric Reducer—for smooth diameter transitions

Tees:

Equal and reducing—for branch connections

Caps:

For pipe end closures

Manufacturing and Inspection

Manufacturing methods:

Seamless fittings: Made from seamless pipes by hot or cold forming

Welded fittings: Made from welded pipes or formed from plates/strips and welded

Inspection and testing:

Chemical analysis

Mechanical tests (tensile, hardness, impact)

Dimensional checks (strict tolerances)

Non-destructive testing (RT/UT as required)

Hydrostatic testing (if specified)

Test categories: The standard defines two test categories with different inspection levels, allowing buyers to choose based on service conditions.

Dimensional Accuracy

EN 10253-4 sets tight tolerances on end diameters, wall thickness, and ovality—ensuring precise fit with pipes, better weld quality, and reliable system performance.

Applications

EN 10253-4 SS304 buttwelding fittings are used across diverse industries:

• Petrochemical: Conveying corrosive media like organic acids, salts, and alkalis in refineries and chemical plants

• Food & Pharma: Hygienic piping systems in dairy, beverage, brewery, and biopharma—meeting strict cleanliness standards

• Energy & Power: Auxiliary systems in nuclear and thermal power plants, solar thermal systems—handling cooling water and heat transfer fluids up to 200–300°C

• Marine & Offshore: Seawater pipelines, fire-fighting systems, freshwater lines on ships and platforms

• Cryogenic Service: LNG storage and transport, refrigeration systems—thanks to SS304’s low-temperature toughness

• General Industry: Steam, compressed air, pure water, and wastewater systems in textile, paper, water treatment, and semiconductor plants

EN 10253-4 SS304 stainless steel buttwelding fittings are critical components in European-standard piping systems. Their quality directly affects project safety and service life. Choosing a supplier with deep standard knowledge, full traceability, and proven experience is key to project success.

With our strong understanding of EN 10253-4, precise control over SS304 material performance, and experience gained from countless projects, we deliver fittings that truly meet European requirements. Whether for standard sizes or custom developments, we are committed to supporting our partners with professionalism and craftsmanship.
