SMO 254 flange is a high-performance pipe connector forged from super austenitic stainless steel. It delivers outstanding corrosion resistance in seawater, chemical processing, and flue gas desulfurization (FGD). The material contains roughly 6% molybdenum. That single factor redefines reliability in chloride-rich service.
To specify SMO 254 flange correctly, you must understand its parent family: super austenitic stainless steel. This is not a marketing label. It is a defined alloy system built for extreme corrosion.
Download the SMO 254 WN flange data sheet now. Get full chemistry, pressure ratings, and delivery options in one file.
Super austenitic stainless steel has a quantified threshold. The industry standard is a Pitting Resistance Equivalent Number (PREN) of 40 or higher.
PREN = Cr + 3.3Mo + 16N
This value far exceeds 316L (PREN ≈ 25) and 904L (PREN ≈ 35). The result is a step-change in resistance to pitting and crevice corrosion in chloride environments.
Super austenitic grades fill the performance gap between standard austenitic stainless steel and nickel-based alloys. Before these grades existed, engineers had two choices. Accept rapid corrosion of standard stainless. Or pay the high cost of nickel alloys such as Hastelloy C-276. Super austenitic stainless steel delivers intermediate corrosion performance at moderate alloying cost.
The technical route moved through three clear stages.
Stage 1 — Early exploration (1930s–1950s). France's Uranus B6 (20Cr-25Ni-4.5Mo-1.5Cu) and the US Alloy 20 first tested high-molybdenum austenitic concepts. These laid the groundwork for later commercialization.
Stage 2 — 6Mo maturity (1970s–1980s). In 1976, Sweden's Avesta (now Outokumpu) developed 254 SMO (UNS S31254). It was a milestone. It introduced systematic nitrogen alloying. Roughly 0.2% nitrogen was added to a 6% molybdenum base. PREN rose above 42. Other grades from this period include AL-6XN (N08367) from Allegheny and Cronifer 1925 hMo (N08926) from VDM.
Stage 3 — 7Mo and high nitrogen (1990s–present). To approach nickel alloy performance, Avesta launched 654 SMO (S32654) in 1992. Molybdenum rose to about 7%. Nitrogen reached 0.5%. PREN exceeded 56. Corrosion resistance in halide environments became comparable to some nickel alloys. Later grades include B66 (S31266, tungsten substituted for molybdenum), Incoloy 27-7Mo (S31277), and NAS 254N (S32053).
About 11 grades are widely recognized. The table below lists the most representative ones.
Grade | UNS No. | Key Feature | PREN | Typical Application |
254 SMO | S31254 | 6Mo, nitrogen alloying baseline | ≥42 | Seawater systems, FGD, pulp bleaching |
AL-6XN | N08367 | 6Mo, high Ni and Mo | ≈44 | Offshore platforms, nuclear seawater piping |
Cronifer 1925 hMo | N08926 | 6Mo, Cu-bearing | ≈43 | Chemical, oil and gas piping |
904L | N08904 | 4.5Mo, high Ni, Cu-bearing | ≈35 | Sulfuric acid service (often grouped as predecessor) |
654 SMO | S32654 | 7Mo, 0.5% N | ≥56 | Nickel alloy replacement, desalination |
B66 | S31266 | 6Mo + W, stable structure | ≈50 | Heavy-wall components, FGD |
Incoloy 27-7Mo | S31277 | 8Mo, high N | ≈50 | Chemical processing, seawater |
S34565 | S34565 | High Mn, high N | ≈47 | Thin-wall condenser tubes, pulp and paper |
NAS 254N | S32053 | Optimized Cr and Mo | ≈45 | Marine engineering, pollution control |
Note: 904L has a PREN below 40. Strictly speaking, it is not a super austenitic grade. It is included here because of its historical role and performance profile.
Buyers often face a naming conflict. The drawing says ASTM A182 F44. The supplier quote says SMO 254. These are two naming dimensions for the same material.
ASTM A182 F44 is the US standard designation for forged flanges. "F44" points to alloy grade UNS S31254. SMO 254 is the commercial name. It is also called 254 SMO or 6Mo stainless steel. The core feature is the synergy of high molybdenum (about 6%) and high nitrogen (about 0.2%).
PREN is the key indicator for chloride resistance. For SMO 254, PREN falls between 42 and 44. Standard 316L sits at only about 25. In chloride-bearing media, SMO 254 flange resists pitting and crevice corrosion far beyond standard stainless.
Selection must not rely on guesswork. The two tables below show the material data for SMO 254 flange.
Element | Cr | Ni | Mo | N | Cu | C |
Content | 19.5–20.5 | 17.5–18.5 | 6.0–6.5 | 0.18–0.25 | 0.5–1.0 | ≤0.020 |
Low carbon (≤0.02%) preserves intergranular corrosion resistance after welding. This matters for flanges, which are welded into piping systems.
Property | Yield Strength Rp0.2 | Tensile Strength Rm | Elongation A |
Typical | ≥305 MPa | ≥650 MPa | ≥35% |
SMO 254 yield strength is roughly 50% higher than 304/316 austenitic stainless steel. At equal pressure class, SMO 254 flange can sometimes use a more compact design. Or it can hold a higher safety margin in high-pressure service.

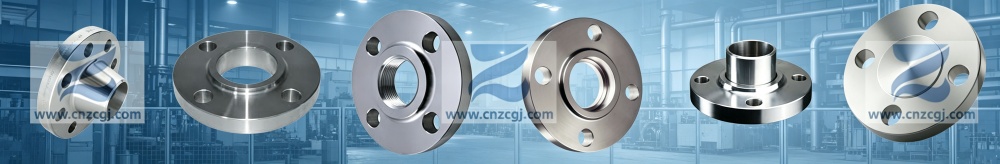

A flange looks simple. But SMO 254 can be forged into many configurations. Each serves a different connection need, pressure class, and installation scenario. The table below summarizes common types for fast comparison.
Flange Type | Abbr. | Connection | Service | Key Feature |
Weld Neck | WN | Butt weld | High temperature, high pressure, wide temperature/pressure swings | Best sealing, most widely used, requires bolts and gasket |
Slip-On | SO | Fillet weld | Medium and low pressure piping | Easy installation, moderate cost, medium sealing |
Plate | PL | Fillet weld | PN ≤2.5 MPa, non-toxic media | Simple installation, relatively lower sealing performance |
Socket Weld | SW | Socket fillet weld | Small bore (usually DN≤50), high pressure | Fillet weld, good sealing, suits severe media |
Threaded | Threaded | Threaded | Piping where welding is not permitted | Non-welded, easy maintenance, sealing below weld neck |
Lap Joint | Lapj | Stub end + loose flange | Frequent disassembly and maintenance | Easy bolt hole alignment, good sealing, easy installation |
Blind | Blind | Bolted | Pipe end sealing or physical isolation | Removable seal, face options include flat, raised, male-female |
Sealing face type — raised face (RF), flat face (FF), or ring joint (RTJ) — must match the gasket and media pressure.
Size range typically covers DN15–DN600 (1/2 IN–24 IN) under ASME B16.5. Pressure classes cover Class150 through Class2500, seven classes in total.
Engineers face a crowded stainless steel catalogue. The logic below simplifies the decision by media and temperature.
Seawater and high-chloride environments. Cooling water systems, desalination units, offshore platform firewater lines. When chloride exceeds 500 ppm and temperature exceeds 60°C, 316L corrosion risk rises sharply. SMO 254 critical pitting temperature (CPT) is far higher.
Halide-bearing acid media. Mixed acid service with sulfuric, phosphoric, or acetic acid. In some cases, SMO 254 corrosion resistance rivals Hastelloy or titanium. Cost is significantly lower.
Flue gas desulfurization (FGD) systems. Absorbers, spray layers, slurry piping flanges. Wet FGD carries high chloride and fluoride. pH fluctuates widely. Material demands are severe.
Pulp bleaching stages. Equipment and piping exposed to chlorine and chlorine dioxide.
SMO 254 is not universal. One key limit is structural stability at high temperature. Between 600°C and 1000°C, intermetallic phases such as sigma phase can precipitate. Toughness and corrosion resistance drop. If service temperature stays above 550°C, re-evaluate the material. Consider heat-resistant stainless steel or nickel-based alloys.
One practical detail deserves attention. Field cases show 254 SMO can rust in chloride environments above 35°C. On a North Sea platform crude cooler outlet, flanges and threaded nozzles suffered severe corrosion when temperature exceeded 70°C. Selection must consider media concentration, temperature, and structural details such as crevices. Grade alone is not enough.
Both are super austenitic or near-super austenitic grades. Their strengths differ. 904L has higher nickel (about 25%) and contains copper. It performs better in reducing acids such as dilute sulfuric acid. SMO 254 has higher molybdenum (6% vs 4.5%). It wins in chloride pitting and crevice corrosion resistance. Simple rule: pure sulfuric acid service favors 904L. Chloride-bearing service favors SMO 254.
No. F44 maps to SMO 254 (super austenitic). F55 maps to 2507 (super duplex). F55 has much higher strength (yield strength typically ≥550 MPa). F44 offers a better balance of weldability and toughness. Always follow the material grade on the approved drawing.
ASTM A182 is the standard. Dimensions follow ASME B16.5 (DN15–DN600) or B16.47 for larger sizes. Pressure classes cover Class150 through Class2500. The material also holds NACE MR0175 certification for sour oil and gas service.
SMO 254 flange (ASTM A182 F44) is not an isolated choice. It is the pipe connection expression of the super austenitic stainless steel family. That family started with 6Mo grades. Nitrogen alloying pushed performance higher. 7Mo and higher-alloy grades followed. The goal is always the same: balance corrosion resistance against cost.
When your service involves seawater, high chloride, or acid media — and the budget does not allow Hastelloy — SMO 254 is a top candidate. Understanding its position in the material map helps you choose precisely among 904L, AL-6XN, 654 SMO, and other close relatives.
