On April 2, 2025, an old customer of our company sent us an inquiry for 20# Steel 45 Degree Elbow, which is a common material and product. After the quotation was completed, the customer placed an order with us on the same day.
ZIZI is a company specializing in the production and processing of pipes and fittings. The pipes and pipe fittings we produce are mainly used in chemical, petroleum, natural gas, water conservancy, electric power, marine engineering and other fields. The products mainly include seamless pipes, welded pipes, butt-welded pipe fittings, high-pressure forged pipe fittings and flanges of various sizes. The materials include carbon steel, stainless steel, alloy steel, low-temperature steel, duplex steel, base alloy, etc.
Size Range | 1/2"- 80" / DN15 - 2000 |
Thickness Schedule | SCH 10, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS |
Standard | GB/T12459, GB/T13401, HG/T21635/21631, SH3408/3409, ANSI / ASME B16.9, MSS SP 43, JIS B2311/2312/2313, EN10253, DIN2605/2615/2616/2617, EN10253 |
Carbon Steel Grades | ASTM A234 WPB/WPC, A420 WPL6, A860 WPHY 42 / 46 / 56 / 60 / 65 |
Alloy Steel Grades | ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92, 15CrMoG, |
12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5 | |
Stainless Steel Grades | ASTM A403 WP304/304L/304H, 316/316L, 310S, 317, 347, 904L |
Duplex Stainless Steel Grades | ASTM A815 S32205, S31803, 32750, 32760 |

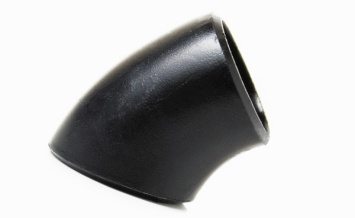

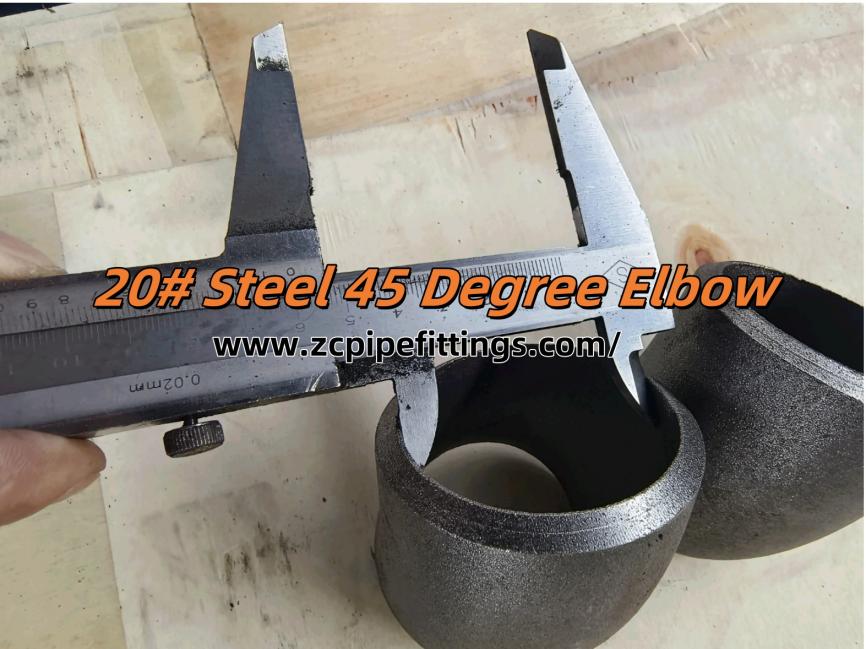

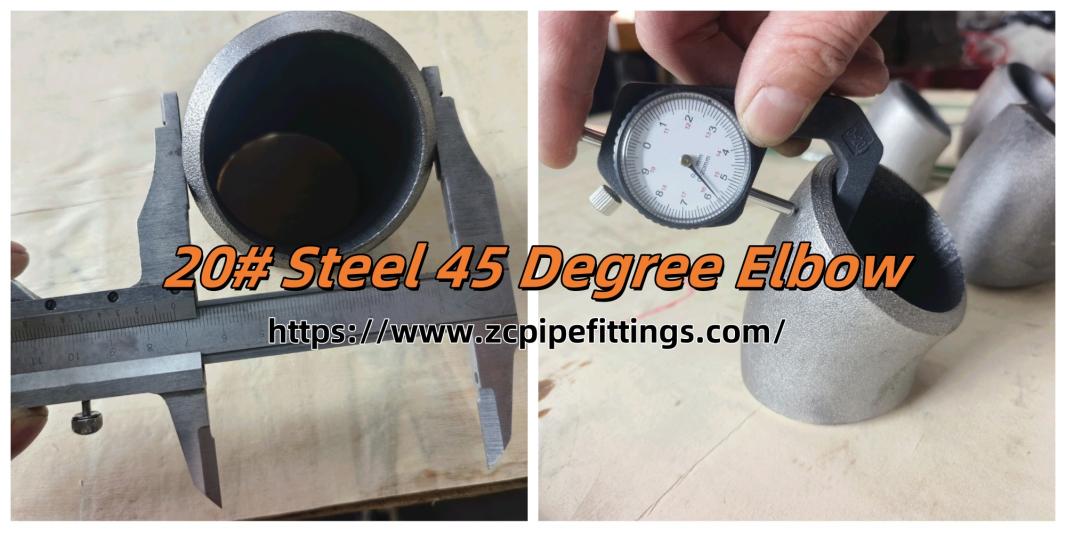

A 20# Steel 45 Degree Elbow refers to a pipe fitting made from 20# carbon steel that changes the direction of the piping system by 45 degrees.
45 Degree Elbow: This indicates the fitting is bent at a 45-degree angle, used to change the direction of a pipeline.
Steel: The material of the fitting is steel. The specific type of steel isn't fully defined by "20#".
20#: This likely refers to the nominal pipe size (NPS) of 20 inches. The "#" symbol is often used to denote NPS.
Long Radius (LR): The centerline radius of the bend is 1.5 times the nominal pipe size (1.5D). Long radius elbows offer less friction loss.
Short Radius (SR): The centerline radius of the bend is equal to the nominal pipe size (1D). Short radius elbows are more compact.
Grade | LIMITS | C | Si | Mn | P | S | Cr | Ni | Cu |
20# | MIN | 0.17 | 0.17 | 0.35 | - | - | - | - | - |
MAX | 0.23 | 0.37 | 0.65 | 0.035 | 0.035 | 0.25 | 0.3 | 0.25 |
Grade | Tensile Strength(MPa) | Tensile Strength(Mpa | Elogation(L/T) | HBW |
20# | ≥410 | ≥245 | ≥25 | ≤156 |
GB | ISC | CNS | JIS | KS | ASTM/AISI | UNS | DIN EN/DIN | W-Nr. | NF EN/NF | GOST | SS | BS EN/BS |
20# | U20202 | S20C | S20C | SM20C | 1020 | G10200 | C22E | 1.1151 | C22E | 20 | 1435 | C22E |
Ck22 | XC18 | 070M20 |
DN | NPS | OD |
| SCH 40 WEIGHT |
LR | KG | |||
15 | 1/2 | 21.3 | 16 | 0.04 |
20 | 3/4 | 26.7 | 19 | 0.06 |
25 | 1 | 33.4 | 22 | 0.08 |
32 | 1-1/4 | 42.2 | 25 | 0.14 |
40 | 1-1/2 | 48.3 | 29 | 0.20 |
50 | 2 | 60.3 | 35 | 0.36 |
65 | 2-1/2 | 73.0 | 44 | 0.71 |
80 | 3 | 88.9 | 51 | 1.11 |
90 | 3-1/2 | 101.6 | 57 | 1.56 |
100 | 4 | 114.3 | 64 | 2.11 |
125 | 5 | 141.3 | 79 | 3.56 |
150 | 6 | 168.3 | 95 | 5.6 |
200 | 8 | 219.1 | 127 | 11.4 |
250 | 10 | 273.0 | 159 | 20.0 |
300 | 12 | 323.8 | 190 | 31.5 |
350 | 14 | 355.6 | 222 | 43.6 |
400 | 16 | 406.4 | 254 | 65 |
450 | 18 | 457.0 | 286 | 92.5 |
500 | 20 | 508.0 | 318 | 121 |
550 | 22 | 559.0 | 343 | - |
600 | 24 | 610.0 | 381 | 201.5 |
650 | 26 | 660.0 | 406 | - |
700 | 28 | 711.0 | 438 | - |
750 | 30 | 762.0 | 470 | - |
800 | 32 | 813.0 | 502 | 361 |
850 | 34 | 864.0 | 533 | 409 |
900 | 36 | 914.0 | 565 | 499 |
950 | 38 | 965.0 | 600 | - |
1000 | 40 | 1016.0 | 632 | - |
1050 | 42 | 1067.0 | 660 | - |
1100 | 44 | 1118.0 | 695 | - |
1150 | 46 | 1168.0 | 727 | - |
1200 | 48 | 1219.0 | 759 | - |
1300 | 52 | 1321.0 | 821 | - |
1400 | 56 | 1422.0 | 883 | - |
1500 | 60 | 1524.0 | 947 | - |
1600 | 64 | 1626.0 | 1010 | - |
1700 | 68 | 1727.0 | 1073 | - |
1800 | 72 | 1829.0 | 1137 | - |
1900 | 76 | 1930.0 | 1199 | - |
2000 | 80 | 2032.0 | 1263 | - |
1. Oil & Gas Industry (Non-corrosive conditions)
2. General Industrial Piping
3. Water Supply & Drainage
4. Boiler and Pressure Vessel Systems
5. Construction and HVAC
6. Chemical & Petrochemical Industry
