On March 22, 2025, a valued long-term client of our company sent us an inquiry for 304 stainless steel tees. This client has purchased pipe fittings from us multiple times in the past. After we completed the quotation, the client placed an order with us one week later.
ZIZI is a professional enterprise engaged in the production and processing of pipes and pipe fittings. Our produced pipes and pipe fittings are mainly used in fields such as chemical, petroleum, natural gas, water conservancy, power, and marine engineering. Our products mainly include seamless pipes, welded pipes, butt-welding pipe fittings, high-pressure forged pipe fittings, and flanges in various sizes. The materials include carbon steel, stainless steel, alloy steel, low-temperature steel, duplex steel, nickel-based alloys, etc.
Shape Type | Equal and Reducing Cross Tee |
Size Range | 1/2” - 80” / DN15 - 2000 |
Thickness Schedule | SCH 10, SCH 40, SCH 80, SCH 160, XXS |
Stainless Steel Material | ASTM A403 WP304/304L/304H, 316/316L, 310S, 317, 347, 904L, A815 S32205, S31803, 32750, 32760 |

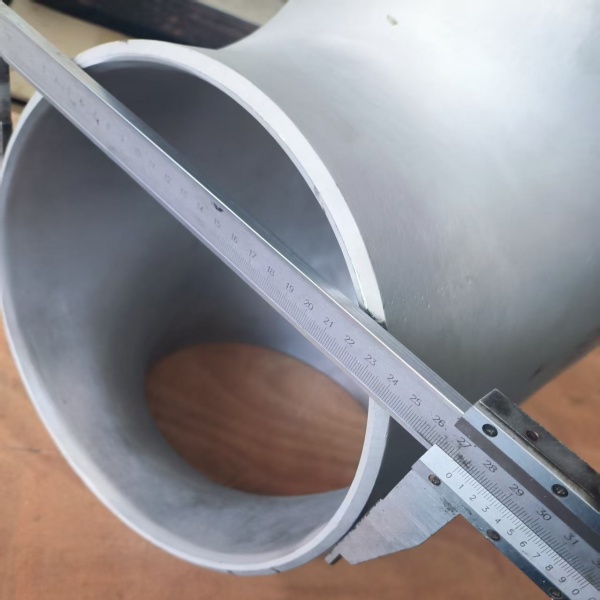

Outer Diameter :
Use an outside caliper to measure the outer diameter of each port. For butt welding cross, the outer diameter is a critical dimension for butt-welding with the main pipe and branch pipes. This ensures that the manufactured cross can be smoothly connected with other pipes, fittings, or equipment, avoiding issues like inability to connect, misalignment, or interference during on-site installation.

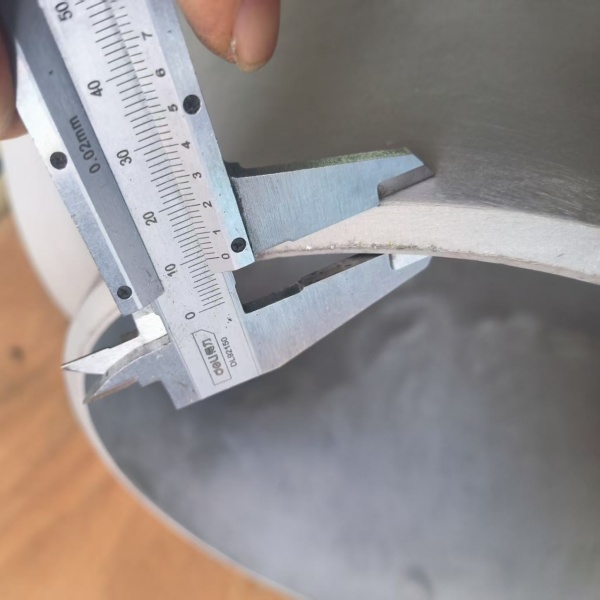

Wall Thickness :
Use a wall thickness caliper or ultrasonic thickness gauge to measure the wall thickness of each port. This ensures that the cross can withstand the pressure generated during the operation of the piping system. The wall thickness should comply with design requirements and relevant standards, directly affecting the pressure-bearing capacity of the cross.

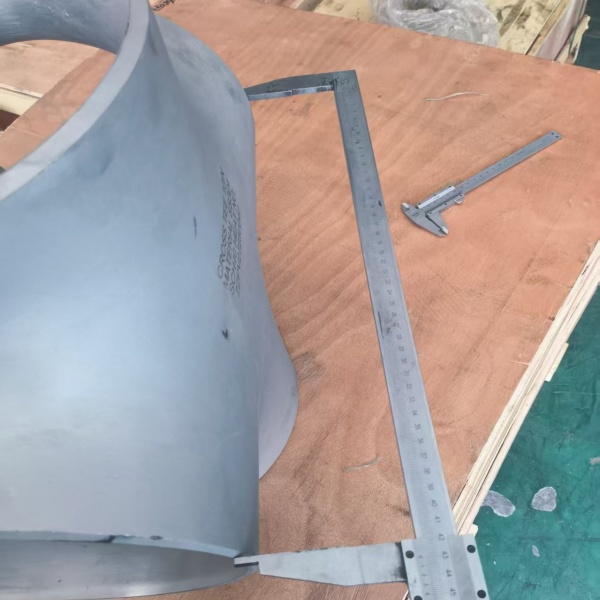

Overall Height/Length:
Measure the largest dimension of the cross to ensure adequate installation space.

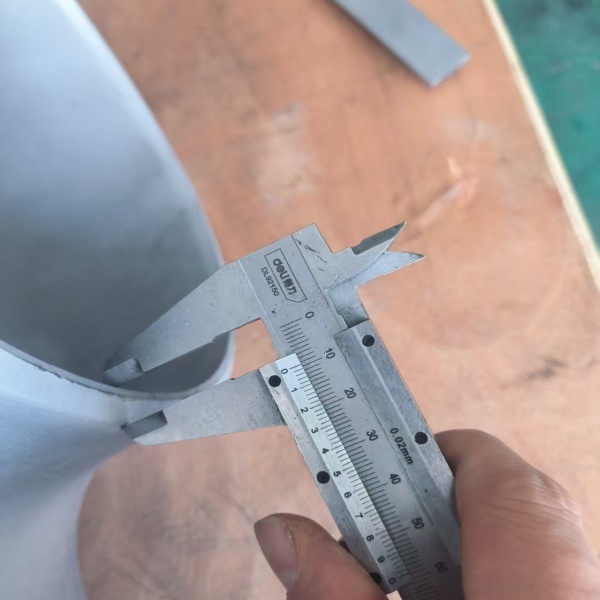

Wall Thickness
Length

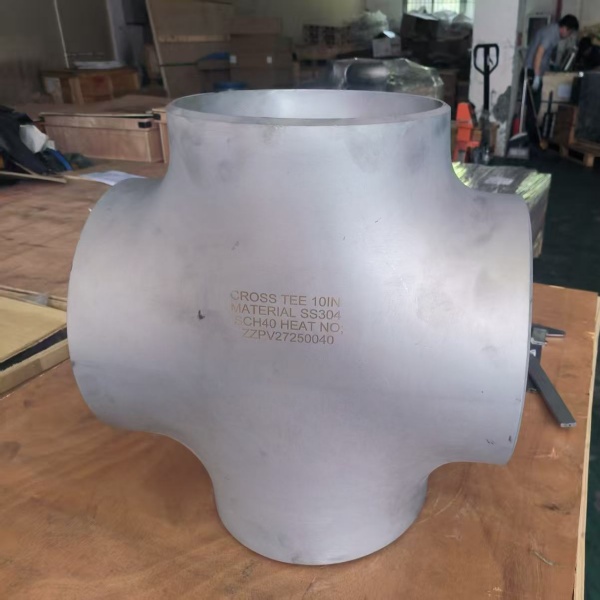

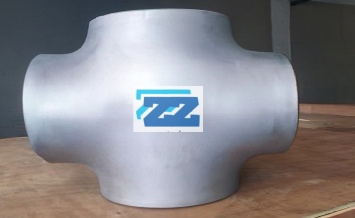

Stainless Steel Cross
Wall Thickness
Outer Diameter
CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr |
ASTM A403 WP304 | MIN | 8.0 | 18.0 | |||||
MAX | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 11.0 | 20.0 |
MATERIAL | T.S (MPA) | Y.S (MPA) | EL % |
ASTM A403 WP304 | 515 min | 205 min | 28 min |
Material: 304 Stainless Steel (typically contains 18-20% Chromium and 8-10.5% Nickel)
Corrosion Resistance: Excellent resistance to a wide range of corrosive environments.
Weldability: Good weldability using common welding techniques.
Strength and Ductility: Offers a good balance of strength and formability.
Hygiene: Non-reactive and easy to clean, making it suitable for sanitary applications.

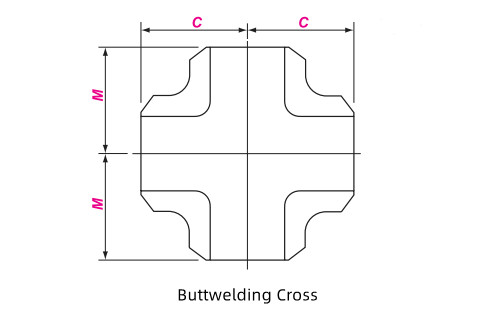

Nominal Size | Outside Diameter at Bevel | Center to End | ||
DN | NPS | OD1×OD2 | C | M |
15 | 1/2 | 21.3 | 25 | 25 |
20 | 3/4 | 26.7 | 29 | 29 |
25 | 1 | 33.4 | 38 | 38 |
32 | 11/4 | 42.2 | 48 | 48 |
40 | 11/2 | 48.3 | 57 | 57 |
50 | 2 | 60.3 | 64 | 64 |
65 | 21/2 | 73.0 | 76 | 76 |
80 | 3 | 88.9 | 86 | 86 |
90 | 31/2 | 101.6 | 95 | 95 |
100 | 4 | 114.3 | 105 | 105 |
125 | 5 | 141.3 | 124 | 124 |
150 | 6 | 168.3 | 143 | 143 |
200 | 8 | 219.1 | 178 | 178 |
250 | 10 | 273.0 | 216 | 216 |
300 | 12 | 323.8 | 254 | 254 |
350 | 14 | 355.6 | 279 | 279 |
400 | 16 | 406.4 | 305 | 305 |
450 | 18 | 547.0 | 343 | 343 |
500 | 20 | 508.0 | 381 | 381 |
550 | 22 | 559.0 | 419 | 419 |
600 | 24 | 610.0 | 432 | 432 |
650 | 26 | 660.0 | 495 | 495 |
700 | 28 | 711.0 | 521 | 521 |
750 | 30 | 762.0 | 559 | 559 |
800 | 32 | 813.0 | 597 | 597 |
850 | 34 | 864.0 | 635 | 635 |
900 | 36 | 914.0 | 673 | 673 |
950 | 38 | 965.0 | 711 | 711 |
1000 | 40 | 1016.0 | 749 | 749 |
1050 | 42 | 1067.0 | 762 | 711 |
1100 | 44 | 1118.0 | 813 | 762 |
1150 | 46 | 1168.0 | 851 | 800 |
1200 | 48 | 1219.0 | 889 | 838 |
1300 | 52 | 1321.0 | 965 | 914 |
1400 | 56 | 1422.0 | 1041 | 965 |
1500 | 60 | 1524.0 | 1118 | 1016 |
1600 | 64 | 1626.0 | 1194 | 1092 |
1700 | 68 | 1727.0 | 1270 | 1168 |
1800 | 72 | 1829.0 | 1320 | 1245 |
1900 | 76 | 1930.0 | 1422 | 1320 |
2000 | 80 | 2032.0 | 1499 | 1397 |
Plumbing Systems
Chemical Processing
Food and Beverage Industry
Pharmaceutical Industry
Water Treatment Plants
Some Hydraulic and Pneumatic Systems
Low to Medium Pressure Industrial Applications
Excellent Corrosion Resistance: Ensures longevity and prevents contamination of the media.
Durability: Can withstand moderate pressures and temperatures.
Hygienic: Easy to clean and non-reactive, crucial for sanitary applications.
Versatility: Suitable for various connection types and sizes.
Cost-Effective: Offers a good balance of performance and price compared to more specialized alloys.
