ASME B16.9 Carbon Steel Elbow Order

ASME B16.9 carbon steel elbow is one of our main products. Over the years, our company has maintained a stable market share in both domestic and international markets by strictly adhering to the American standard ASME B16.9 production standards, excellent product quality, and professional service concepts. Our annual sales continue to rise, and we have provided reliable butt welding elbow solutions for many industry customers. At the beginning of this year, we successfully signed a contract with a Bolivian client in South America, which opened up an opportunity for our company to cooperate in the South American market.

In the information rich world of the internet, customers find us through precise searches and conduct in-depth research on our company's official website. It is this professional and comprehensive presentation of our products that allows customers to feel our level of expertise and recognize us as a high-quality supplier that meets their needs. Subsequently, the customer initiated multiple inquiries, and each communication became an opportunity for us to demonstrate our professional competence. Whether it is detailed answers to product parameters, material certification, inspection standards in email correspondence, or timely responses to customer inquiries during telephone communication, we always treat every communication with professional product knowledge and dedicated service attitude. This focus and responsibility gradually dispelled customers' concerns and laid a solid foundation for the fulfillment of orders.

Purchasing List

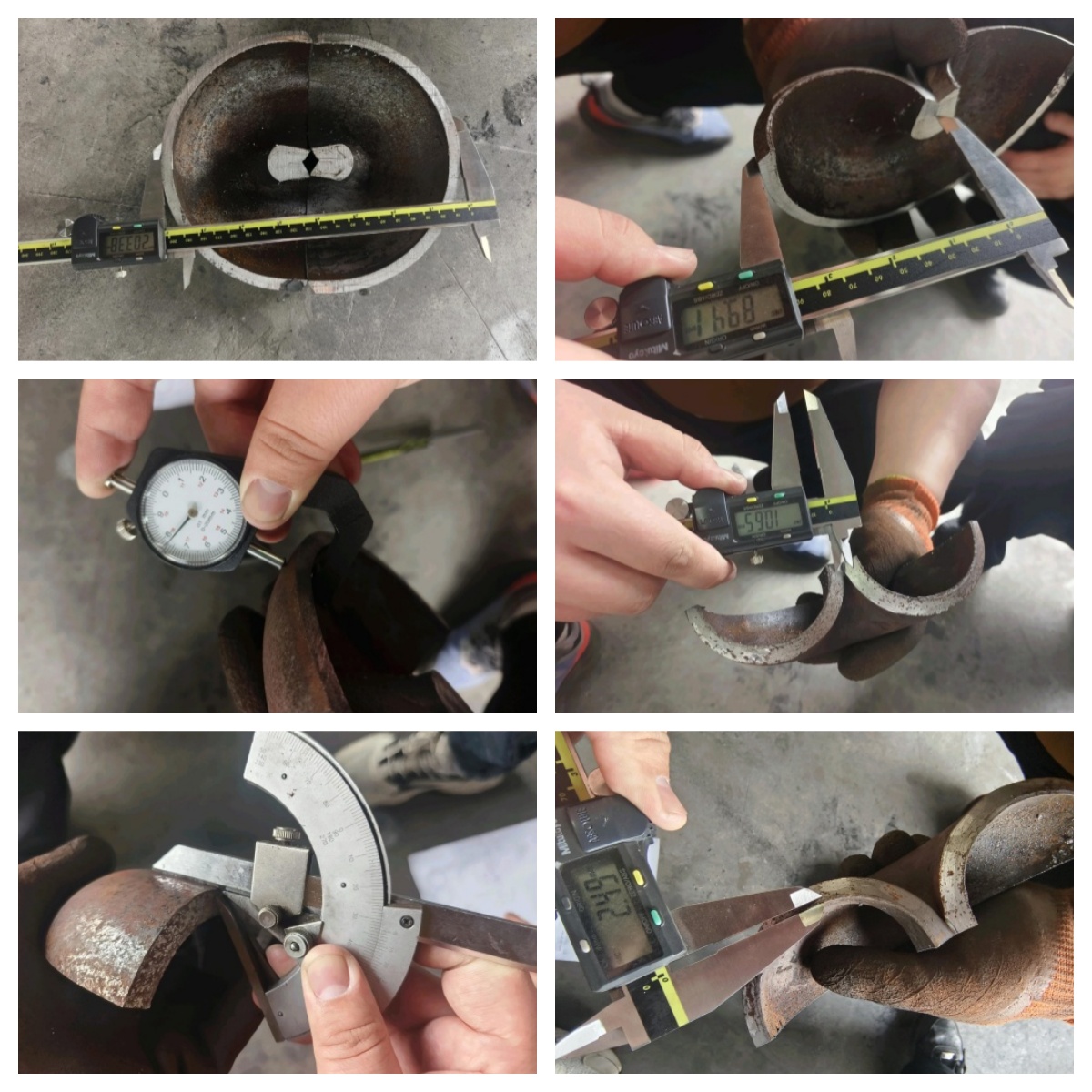

The above is the purchase order details, and the product requirements are clearly for 90 degree and 180 degree ASME B16.9 carbon steel elbow. Although the specifications are conventional, the customer's inspection requirements are extremely strict - they require cutting the elbow along the center line, measuring each internal parameter one by one, and providing detailed inspection photos. This is undoubtedly a test of the intrinsic quality of the product. To ensure that customer requirements are met, we have produced several samples in advance and strictly processed them according to the inspection methods specified by the customer.

During the cutting process, we are careful to avoid affecting the measurement accuracy due to improper operation; In the measurement process, technicians use high-precision detection tools to accurately measure key internal parameters such as wall thickness uniformity, weld quality, and curvature radius of the elbow, and record data synchronously; When taking photos, we present the internal state and measurement details of the product clearly from multiple angles, ensuring that customers can intuitively understand the product quality. After receiving the sample inspection photos and data reports, the customer highly recognized the precision manufacturing and stable quality of the product.

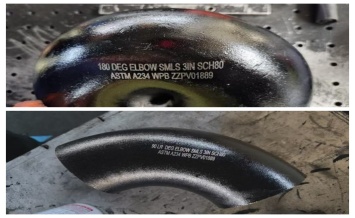

Inspection of 180 Degree Elbow

Due to the small size but large quantity of elbows in the order, protection during transportation becomes crucial. To ensure that the goods are not damaged during long-distance transportation (especially cross-border transportation), we have customized wooden box packaging solutions for our customers. The wooden box is made of sturdy materials, and the interior is reasonably divided according to the shape and quantity of bends. Each bend has independent buffer protection, effectively avoiding collisions and compression during transportation.

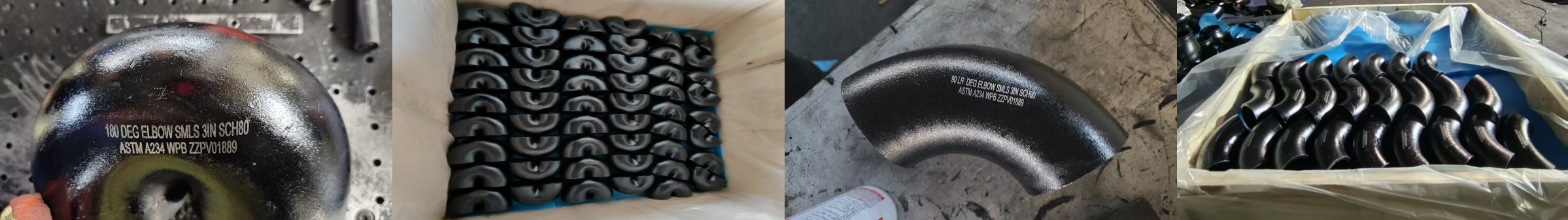

Package of ASME B16.9 Carbon Steel Elbow

 We track logistics information throughout the entire process from product production, inspection, packaging to final shipment, and provide timely feedback to customers on the status of goods. After receiving the goods smoothly, the customer once again expressed their appreciation for our professional service.

What is ASME B16.9 Carbon Steel Elbow

ASME B16.9 carbon steel elbow is a butt welded elbow made of carbon steel material manufactured according to the American standard ASME B16.9. It is widely used in industrial fields, including petroleum, natural gas, chemical, power and other industries.

Types of Carbon Steel Butt Weld Elbow

1. According to the bending radius, it can be divided into long radius elbows (LR ELBOW) and short radius elbows (SR ELBOW).

2. According to the bending angle, it can be divided into 45 degree elbows, 90 degree elbows, and 180 degree elbows.

3. According to the production method, it can be divided into seamless elbows and straight seam elbows.

Dimension

Tolerances for ASME B16.9 Carbon Steel Elbow

Application

Petroleum, natural gas, and chemical pipeline systems: suitable for transporting high-temperature, high-pressure, and corrosive media.

Power and boiler industry: used for elbow connections in high-temperature steam or high-pressure systems.

Food, beverage, and pharmaceutical industries: Made of stainless steel material that meets hygiene standards.

Water treatment and environmental engineering: used for transporting fluids with high corrosion resistance requirements.

Shipbuilding and ocean engineering: resistant to salt spray, corrosion-resistant, and suitable for marine climate and environment.
