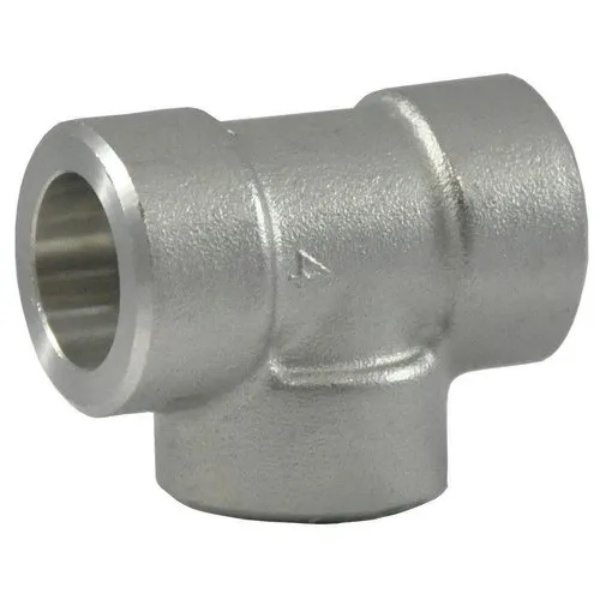

What is Socket Weld Tee
ASTM A182 socket weld tee is a type of high-pressure pipe fitting connection accessory mainly formed by pressing and forging blanks from round steel or steel ingots, and then processed by lathe machine. It can be divided into equal tee and reducing tee according to its shape.
Socket weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a valve, fitting or flange. In contrast to butt weld fittings, they are not need to do beveling for welding preparation and have lower construction cost.
Shanghai Zhicheng Pipe Fitting Manufacturing Co., Ltd. specializes in producing and selling socket tees in accordance with the American standard ASME B16.11. The commonly used materials are ASTM A105 carbon steel and A182 stainless steel.
Specification of ASTM A182 Socket Weld Tee
| Shape | Straight and Reducing Fittings |
| Size Range | 1/8″- 4″ / DN6 – DN100 |
| Pressure Rating | Class 3000LBS, 6000Lbs, 9000lbs. |
Material Grades
Alloy Steel | ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 |
Stainless Steel | ASTM A182 F304/304L/304H, 316/316L, 310S, 317,347,904L |
Duplex stainless steel | ASTM A182 F51, F53, F44 |
Dimension of ASME B16.11 Socket Weld Tee
| DN | NPS | B | C | A | G | |||||||||
| 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | ||||||
| 6 | 1/8 | 10.9 | 3.18 | 3.18 | 3.96 | 3.43 | - | - | 11.0 | 11.0 | - | 2.41 | 3.15 | - |
| 8 | 1/4 | 14.3 | 3.78 | 3.30 | 4.60 | 4.01 | - | - | 11.0 | 13.5 | - | 3.02 | 3.68 | - |
| 10 | 3/8 | 17.7 | 4.01 | 3.5 | 5.03 | 4.37 | - | - | 13.5 | 15.5 | - | 3.20 | 4.01 | - |
| 15 | 1/2 | 21.9 | 4.67 | 4.09 | 5.97 | 5.18 | 9.53 | 8.18 | 15.5 | 19 | 25.5 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 27.3 | 4.09 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 19 | 25.5 | 28.5 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 34.0 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 | 22.5 | 27.0 | 32.0 | 4.55 | 6.35 | 9.09 |
| 32 | 11/4 | 42.8 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 | 27.0 | 32.0 | 35.0 | 4.85 | 6.35 | 9.70 |
| 40 | 11/2 | 48.9 | 6.35 | 5.54 | 8.92 | 7.80 | 12.7 | 11.12 | 32.0 | 38.0 | 38.0 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 61.2 | 6.93 | 6.04 | 10.92 | 9.50 | 13.84 | 12.12 | 38.0 | 41.0 | 54.0 | 5.54 | 8.74 | 11.07 |
| 65 | 21/2 | 73.9 | 8.76 | 7.62 | - | - | - | - | 41.0 | - | - | 7.01 | - | - |
| 80 | 3 | 89.9 | 9.52 | 8.30 | - | - | - | - | 57.0 | - | - | 7.62 | - | - |
| 100 | 4 | 115.5 | 10.69 | 9.35 | - | - | - | - | 66.5 | - | - | 8.56 | - | - |
Socket Weld Tee Weight Reference
DN | NPS | 3000 | 6000 | 9000 |
6 | 1/8 | 0.13 | 0.22 | - |
8 | 1/4 | 0.13 | 0.22 | - |
10 | 3/8 | 0.16 | 0.45 | - |
15 | 1/2 | 0.35 | 0.55 | 1.15 |
20 | 3/4 | 0.48 | 0.90 | 1.80 |
25 | 1 | 0.66 | 1.46 | 2.25 |
32 | 1¼ | 1.00 | 1.90 | 3.95 |
40 | 1½ | 1.40 | 2.80 | 4.87 |
50 | 2 | 2.00 | 3.70 | 8.89 |
65 | 2½ | 4.10 | - | - |
80 | 3 | 5.55 | - | - |
100 | 4 | 15.6 | - | - |
Application
ASTM A182 socket weld tee is mainly suitable for high-pressure pipelines, and various other high-pressure fields that require high pressure resistance.
Petrochemicals
Medicine and Health
Electricity
Aerospace
Military
Fire Protection
Metallurgy
Shipbuilding
Nuclear Power
Environmental Protection
However another feature of ASTM A182 socked weld tee is only connected to ASME pipes which with the same diameter. They are board of used for long-term operation of pipelines and providing good flow characteristics.
