This customer first sent mail to us and contacted me on Whatsapp immediately after that. From him, I got the information that this list is for a project under construction in Uzbekistan, there was some lack of these lines in the project. After knowing those, I checked with our stock and offered the shortest time we can make , made the very detailed offer including the stock items, total weight and dimension, several different plans to do the transportation to the customer. Soon the customer decide to place the order, and he told me there will be following orders from the same project.
ITEM | DESCRIPTION | QTY | UNIT | |
1 | Stainless steel pipe / | 15 mm / S-10S , ASME B36.19 , Plain End , ASTM A312 Grade TP304/TP304L , Seamless | 16.96 | M |
2 | Stainless steel pipe / | 25 mm / S-10S , ASME B36.19 , Plain End , ASTM A312 Grade TP304/TP304L , Seamless | 7.82 | M |
3 | Stainless steel pipe / | 40 mm / S-10S , ASME B36.19 , Plain End , ASTM A312 Grade TP304/TP304L , Seamless | 3.76 | M |
4 | Stainless steel pipe / | 50 mm / S-10S , ASME B36.19 , Beveled End , ASTM A312 Grade TP304/TP304L , Seamless | 11.30 | M |
5 | Stainless steel pipe / | 80 mm / S-10S , ASME B36.19 , Beveled End , ASTM A312 Grade TP304/TP304L , Seamless | 11.30 | M |

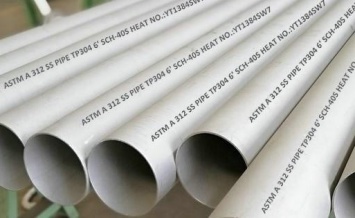

ASTM A312 TP304/304L Pipe Specification
ASTM A312 TP304/304L Stainless Steel Pipe specifications are mainly applicable to sizes ranging from 1/8” to 30” (DN6 to DN750). The wall thickness of these steel pipes must comply with ASME B36.19 standards, and the wall thickness grades are SCH 10, SCH 20, SCH 40, STD, XS, SCH 100, SCH 120, SCH 160, XXS.
Processing Method | Seamless and Welded |
Size Range | 1/8” - 30” / DN6 - 750 |
Thickness Schedule | SCH 10S- SCH 160, XXS |
Length | 6m or 12 m or Random |
Standard | ASME B36.19 |
Surface Treatment | Polish , Mirror , Epoxy Powder FBE, 2PE, 3PE Coating |
Material Grade | ASTM A312 TP304/304L/304H, 316/316L, 310S, 317, 347, 904L, S32205, S31803, 32750, 32760, S32550 |
Chemical Composition of ASTM A312 Stainless Steel 304 Pipe
Grade | UNS | Composition | ||||||
Designation | Carbon | Manganese | Phosphorous | Sulfur | Silicon | Chromium | Nickel | |
TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0 – 20.00 | 8.0-11.0 |
TP304L | S30403 | 0.035 D | 2 | 0.045 | 0.03 | 1 | 18.0 – 20.00 | 8.0-113.0 |
TP304H | S30409 | 0.04 – 0.10 | 2 | 0.045 | 0.03 | 1 | 18.0 – 20.00 | 8.0-11.0 |
Mechanical Properties of ASTM A312 Stainless Steel 304 Pipe
Grade | UNS | Tensile Strength | Yield Strength, |
Designation | min, ksi [MPa] | min, ksi [MPa] | |
TP304 | S30400 | 75[515] | 30[205] |
TP304L | S30403 | 70[485] | 25[170] |
TP304H | S30409 | 75[515] | 30[205] |
A312 TP304L Equivalent
GRADE | UNS | EN | JIS | AFNOR | BS | WERKSTOFF NR. | GOST | SS |
USA | EUROPE | JAPAN | RUSSIAN | BRITISH | GERMAN | RUSSIAN | SWEDISH | |
SS 304L | S30403 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | Z3CN18‐10 | 304S11 | 1.4306/1.4307 | 03Х18Н11 | 2332 |
Stainless Steel 304/304L Pipe Dimension
Stainless Steel Pipe (ASME B 36.19M) | ||||||||||
Nominal Size | OD | Sch5s | Sch10s | Sch40s | Sch80s | |||||
DN | NPS | 0 | T | kg/m | T | kg/m | T | kg/m | T | kg/m |
6 | 1/8 | 10.3 | 1.24 | 0.28 | 1.73 | 0.37 | 2.41 | 0.47 | ||
8 | 1/4 | 13.7 | 1.65 | 0.49 | 2.24 | 0.63 | 3.02 | 0.8 | ||
10 | 3/8 | 17.1 | 1.65 | 0.63 | 2.31 | 0.84 | 3.2 | 1.1 | ||
15 | 1/2 | 21.3 | 1.65 | 0.82 | 2.11 | 1 | 2.77 | 1.27 | 3.73 | 1.62 |
20 | 3/4 | 26.7 | 1.65 | 1.04 | 2.11 | 1.28 | 2.87 | 1.69 | 3.91 | 2.2 |
25 | 1 | 33.4 | 1.65 | 1.33 | 2.77 | 2.09 | 3.38 | 2.5 | 4.55 | 3.24 |
32 | 1 1/4 | 42.2 | 1.65 | 1.68 | 2.77 | 2.7 | 3.56 | 3.39 | 4.85 | 4.47 |
40 | 1 1/2 | 48.3 | 1.65 | 1.95 | 2.77 | 3.11 | 3.68 | 4.05 | 5.08 | 5.41 |
50 | 2 | 60.3 | 1.65 | 2.44 | 2.77 | 3.93 | 3.91 | 5.44 | 5.54 | 7.48 |
65 | 2 1/2 | 73.0 | 2.11 | 3.77 | 3.05 | 5.26 | 5.16 | 8.63 | 7.01 | 11.41 |
80 | 3 | 88.9 | 2.11 | 4.6 | 3.05 | 6.45 | 5.49 | 11.29 | 7.62 | 15.27 |
90 | 31/2 | 101.6 | 2.11 | 5.29 | 3.05 | 7.4 | 5.74 | 13.57 | 8.08 | 18.63 |
100 | 4 | 114.3 | 2.11 | 5.96 | 3.05 | 8.36 | 6.02 | 16.07 | 8.56 | 22.32 |
125 | 5 | 141.3 | 2.77 | 9.67 | 3.4 | 11.57 | 6.55 | 21.77 | 9.53 | 30.97 |
150 | 6 | 168.3 | 2.77 | 11.55 | 3.4 | 13.48 | 7.11 | 28.26 | 10.97 | 42.56 |
200 | 8 | 219.1 | 2.77 | 15.09 | 3.76 | 19.96 | 8.18 | 42.55 | 12.7 | 64.64 |
250 | 10 | 273.1 | 3.4 | 23.08 | 4.19 | 27.78 | 9.27 | 60.31 | 12.7 | 96.01 |
300 | 12 | 323.9 | 3.96 | 31.89 | 4.57 | 36 | 9.53 | 73.88 | 12.7 | 132.08 |
350 | 14 | 355.6 | 3.96 | 35.06 | 4.78 | 41.3 | ||||
400 | 16 | 406.4 | 4.19 | 42.41 | 4.78 | 47.29 | ||||
450 | 18 | 457.2 | 4.19 | 47.77 | 4.78 | 53.26 | ||||
How to inspect ASTM A312 TP304/304L pipe?
Appearance inspection

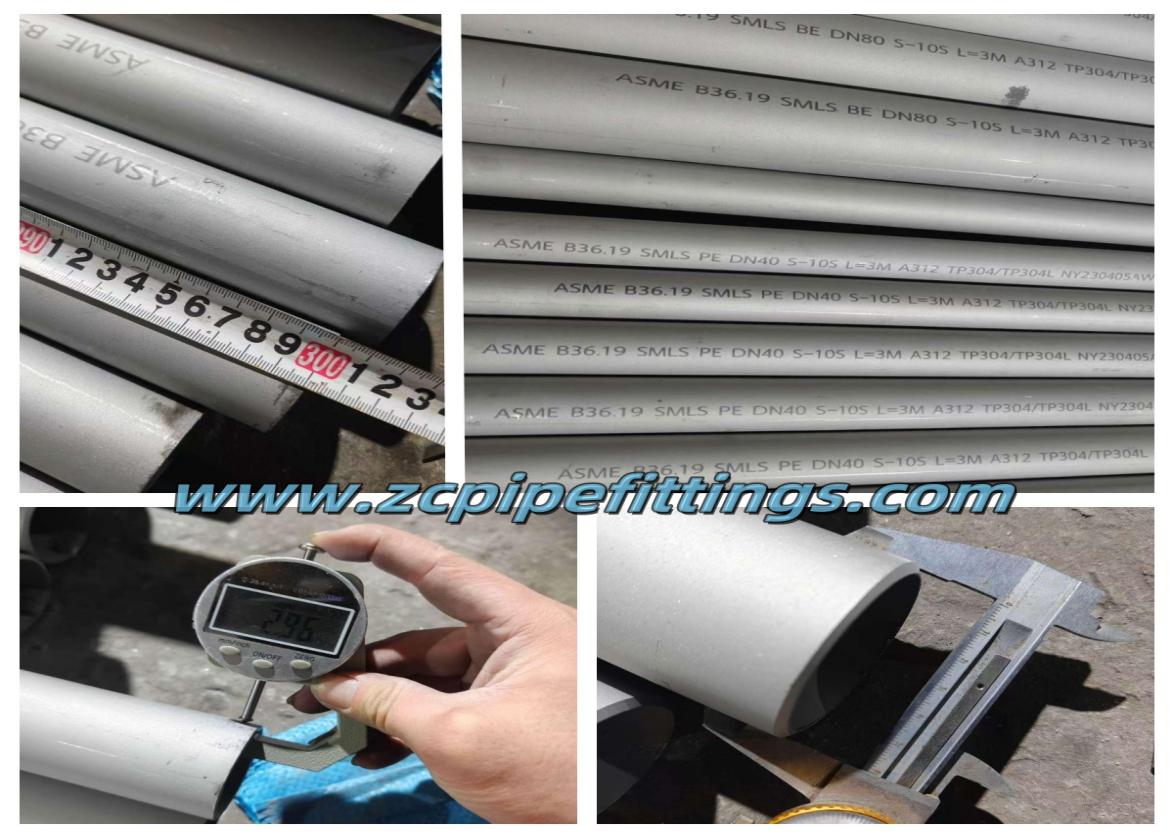

Dimensional deviation: Check whether the wall thickness, outer diameter, length and other dimensions of the stainless steel pipe meet the standards or contract requirements. You can use tools such as vernier calipers and tape measures to measure.
Surface quality: Check whether there are cracks, pitting, pores, slag inclusions, oxide scale, rust and other defects on the inner and outer surfaces of the stainless steel pipe. The surface of high-quality stainless steel pipes should be smooth and flat without obvious defects.
Welding quality: For welded stainless steel pipes, check the weld formation, size, mechanical properties of the welded joint, etc. The weld should be free of cracks, lack of fusion, pores, slag inclusions and other defects.
Chemical composition inspection

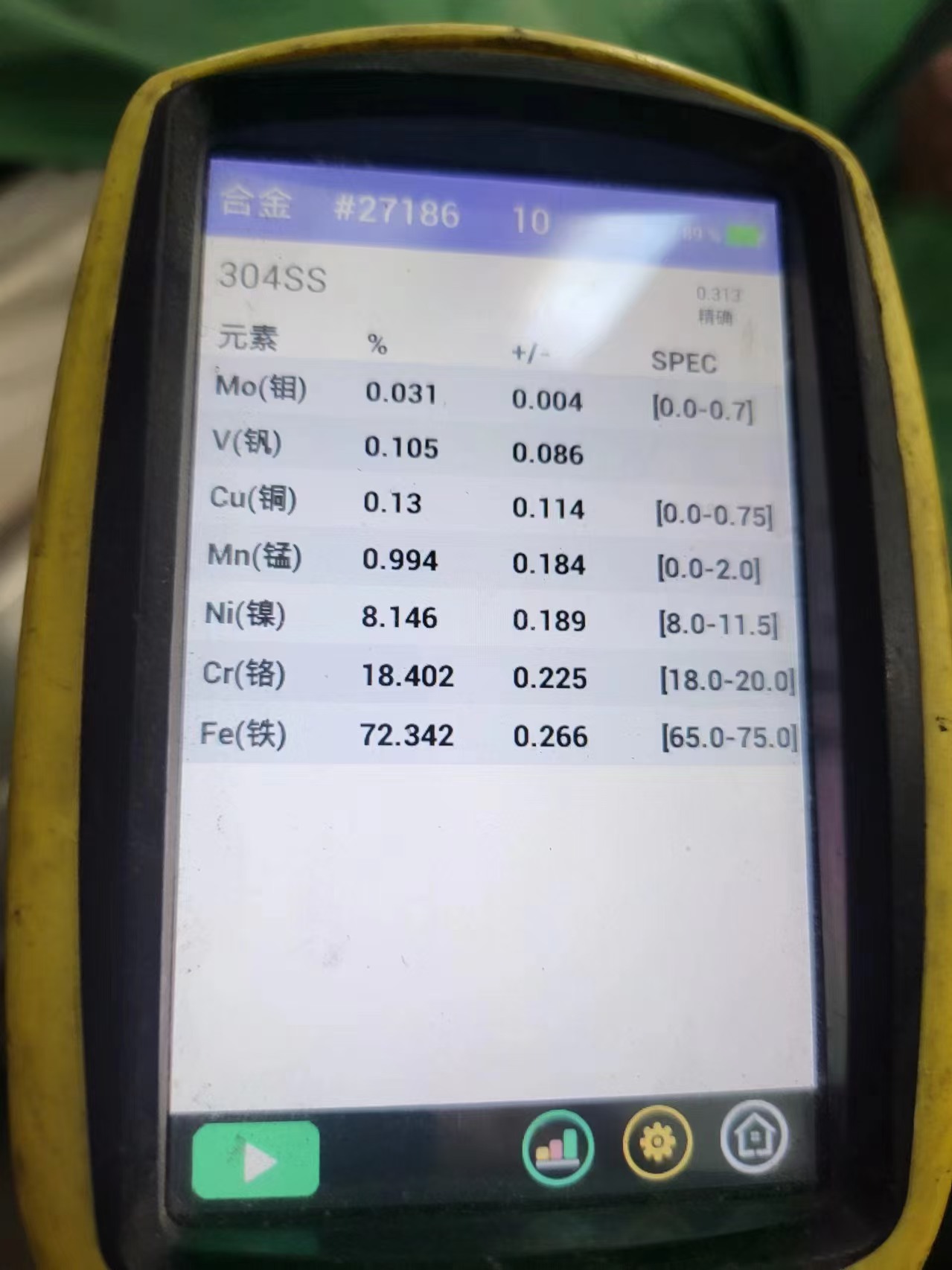

Spectral analysis: The chemical composition of stainless steel pipes is tested by a spectrometer to ensure that they meet the relevant standards or grade requirements. This is an important means of identifying stainless steel materials.
Stainless Steel Pipe Application
◆ Trailers
◆ Heat Exchangers
◆ Food processing equipment
◆ Kitchen benches, sinks, troughs, equipment and appliances
◆ construction materials
◆ Threaded fasteners
◆ Chemical containers, including for transport
◆ Automotive trim
◆ Architectural applications
◆ Railway cars
◆ Woven or welded screens for mining, quarrying & water filtration
