ASTM A312 TP316L Stainless Steel Pipe Order

During a construction project for a Singaporean client, there was a sudden shortage of ASTM A312 TP316L stainless steel pipe. The customer urgently requested assistance from us, hoping that we could find stock and ship quickly. As a key pipeline material for the project, the customer's requirements are clear and urgent: firstly, TP316L stainless steel pipe that comply with ASTM A312 standards need to be provided to ensure that the material and mechanical properties meet the standards; Secondly, the steel pipe needs to be cut to a fixed length according to the installation dimensions on the construction site; The third requirement is to control the quality throughout the entire process and use protective packaging to avoid damage during transportation.

After receiving the customer's order, the business quickly connects the order details with the procurement department, clarifying the specifications (outer diameter, wall thickness, customized length), quality requirements, and delivery time nodes of the stainless steel pipe; The procurement personnel coordinate the source of goods in a timely manner, and arrange quality inspection personnel to conduct on-site inspections, measure the outer diameter and wall thickness to meet the order requirements. The chemical composition is verified to comply with ASTM A312 TP316L standard requirements through spectral analysis.

Order Details

After the quality inspection is completed, according to the installation dimensions provided by the customer, ASTM A312 TP316L stainless steel pipe is cut to length using CNC cutting equipment to avoid wasting time on secondary processing on site and ensure that the steel pipe can be directly installed upon arrival; To ensure transportation safety, we use wooden boxes for packaging, and plastic caps are added to each steel pipe end to protect the groove.

With efficient promotion, we finally delivered this batch of ASTM A312 TP316L stainless steel pipe to the construction site in Singapore according to the delivery time agreed by the customer, timely filling the material gap of the customer, and the project was able to resume construction smoothly. This emergency delivery not only saved the customer from the loss of project schedule, but also won the customer's deep trust with professional services and reliable product quality.

ASTM A312 standard

ASTM A312 is a seamless and welded austenitic stainless steel pipe standard developed by the American Society for Testing and Materials (ASTM), covering steel pipes produced by cold and hot working processes. It is an authoritative technical basis in the global industrial pipeline field, with core contents including:

Scope of application: Suitable for pipelines transporting corrosive fluids (such as chemical acid and alkali media, seawater), high-temperature gases, or low-temperature fluids, with a working temperature range of -196 ℃ to 650 ℃, and can be adapted to multiple scenarios such as deep cold, medium high temperature, etc;

Material requirements: Clearly specify the chemical composition (such as Cr, Ni, Mo content of TP316L) and mechanical properties (tensile strength, yield strength, elongation) of each grade of stainless steel to ensure that the basic performance of the material meets the standard;

Manufacturing and Inspection: Standardize the forming process of steel pipes (seamless pipe hot extrusion/cold rolling, welded pipe TIG/MIG welding), heat treatment requirements (solution treatment temperature 1010-1150 ℃), and mandatory requirements for hydrostatic testing and non-destructive testing (ultrasonic/eddy current testing) to ensure pipeline safety and stability;

Dimensional tolerance: Clearly define the tolerance range for the outer diameter, wall thickness, and length of steel pipes, such as seamless pipe outer diameter tolerance ± 0.5% and wall thickness tolerance ± 12.5%, to ensure installation compatibility.

ASTM A312 TP316L Stainless Steel Pipe Material Properties

As a typical "ultra-low carbon molybdenum containing austenitic stainless steel" in ASTM A312 standard, TP316L optimizes its composition on the basis of conventional stainless steel and has outstanding performance advantages:

Super corrosion resistance: containing 16% -18% Cr (chromium), 10% -14% Ni (nickel), 2% -3% Mo (molybdenum), and carbon content ≤ 0.03% - chromium forms a dense oxide film to resist oxidation corrosion, molybdenum significantly improves the ability to resist chloride ion pitting corrosion and crevice corrosion, and reduces carbon content to avoid intergranular corrosion. It can withstand strong corrosive media such as seawater, hydrochloric acid, sulfuric acid, etc;

Chemical Composition

Excellent mechanical properties: tensile strength ≥ 485MPa, yield strength ≥ 170MPa, elongation ≥ 40%, strong toughness at room temperature, no risk of brittle fracture at low temperature (-196 ℃), stable strength at high temperature (below 600 ℃), able to withstand certain pressure and impact loads;

Excellent processing performance: The austenitic crystal structure endows it with excellent cold bending, stamping, and welding properties. After welding, there is no need for complex heat treatment (mild corrosive environment), and customized processing can be achieved through CNC cutting, drilling, and other processes to meet complex installation requirements;

Mechanical Properties

Health and safety: The surface of ASTM A312 TP316L stainless steel pipe is smooth and easy to clean, with no risk of coating peeling, which can meet the requirements of the food and pharmaceutical industries for sanitary grade pipelines and comply with FDA, GMP and other certification standards.

Inspection Methods for Stainless Steel Pipe

To ensure that the product meets material standards and customer usage requirements, ASTM A312 TP316L stainless steel pipe need to undergo multiple rigorous inspections, with key inspection methods including:

Chemical composition inspection: Use a spectrometer to detect the content of elements such as Cr, Ni, Mo, C, etc., to ensure compliance with the composition standards of TP316L (such as Mo ≥ 2%, C ≤ 0.03%), and avoid performance defects caused by non-compliance with the composition standards;

Mechanical performance testing: Sampling for tensile testing (testing tensile strength, yield strength, elongation), bending testing to verify whether the mechanical properties of the material meet the requirements for use;

Non destructive testing:

Ultrasonic testing (UT): detects whether there are cracks, inclusions, and other defects inside the steel pipe, covering the entire length of the seamless pipe and the weld area of the welded pipe;

Eddy current testing (ET): detects surface and near surface defects (such as scratches and pinholes) in steel pipes, suitable for thin-walled steel pipes;

Water pressure test: Conduct a water pressure test on each pipe (the test pressure is calculated according to the standard, usually 1.5 times the design pressure) to ensure that there is no leakage in the pipeline;

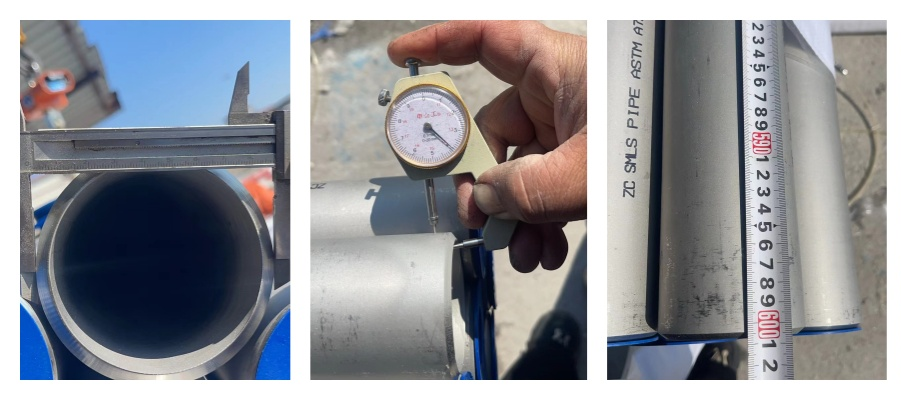

Appearance and dimensional inspection: visually inspect the surface for cracks, dents, and rust, use calipers and micrometers to measure the outer diameter, wall thickness, and length, and verify whether the dimensional tolerances meet the standards.

Advantages of SS316L Stainless Steel Pipe

Compared to ordinary stainless steel pipes (such as TP304) or other pipeline materials, TP316L stainless steel pipes have obvious competitive advantages:

Good corrosion resistance: It contains more molybdenum than TP304 and has 3-5 times higher resistance to chloride ion corrosion. It can be used in strong corrosion scenarios in marine engineering and chemical industry for a long time, reducing pipeline replacement frequency and maintenance costs;

Longer service life: The stability of corrosion resistance and mechanical properties makes its service life 8-10 times longer than carbon steel pipes and 5-6 times longer than ordinary plastic pipes, making it more cost-effective for long-term use;

Excellent high-temperature performance: TP316L can still maintain good strength and oxidation resistance in high-temperature environments, and can withstand continuous high temperatures above 650 ℃. It is suitable for high-temperature conditions such as petroleum refining and thermal power generation, effectively ensuring the safe operation of pipeline systems.

Excellent hygiene performance: The surface is smooth and not prone to scaling or bacterial growth, meeting the strict standards of hygiene industries such as food and pharmaceuticals, and there is no risk of heavy metal precipitation, ensuring the safety and purity of fluid transportation processes.

Application

With comprehensive performance advantages, ASTM A312 TP316L stainless steel pipe is widely used in multiple industrial fields:

Marine Engineering

Chemical Industry

Food and Medicine

New Energy
