ASTM A694 F65 Weldolet Order From Malaysia

Views: 0 Author: Site Editor Publish Time: 2025-02-24 Origin: Site

On February 18, 2025, a new customer from Malaysia sent us an inquiry for ASTM A694 F65 weldolet, which is our company's flagship product. After the quotation was completed, the customer placed an order with us a week later.

ZIZI is a company specializing in the production and processing of pipes and fittings. The pipes and pipe fittings we produce are mainly used in chemical, petroleum, natural gas, water conservancy, electric power, marine engineering and other fields. The products mainly include seamless pipes, welded pipes, butt-weld pipe fittings, high-pressure forged pipe fittings and flanges of various sizes. The materials include carbon steel, stainless steel, alloy steel, low-temperature steel, duplex steel, base alloy, etc.

ITEM	DESCRIPTION
1	WELDOLET PIPE BW ASTM A694 F65 MSS SP 97 OUTLET 4" WT=XXS RUNPIPE 20" -36"
2	WELDOLET PIPE BW ASTM A694 F65 MSS SP 97 OUTLET 6" WT=XXS RUNPIPE 36"
3	WELDOLET PIPE BW ASTM A694 F65 MSS SP 97 OUTLET 2" WT=XXS RUNPIPE 20" -36"

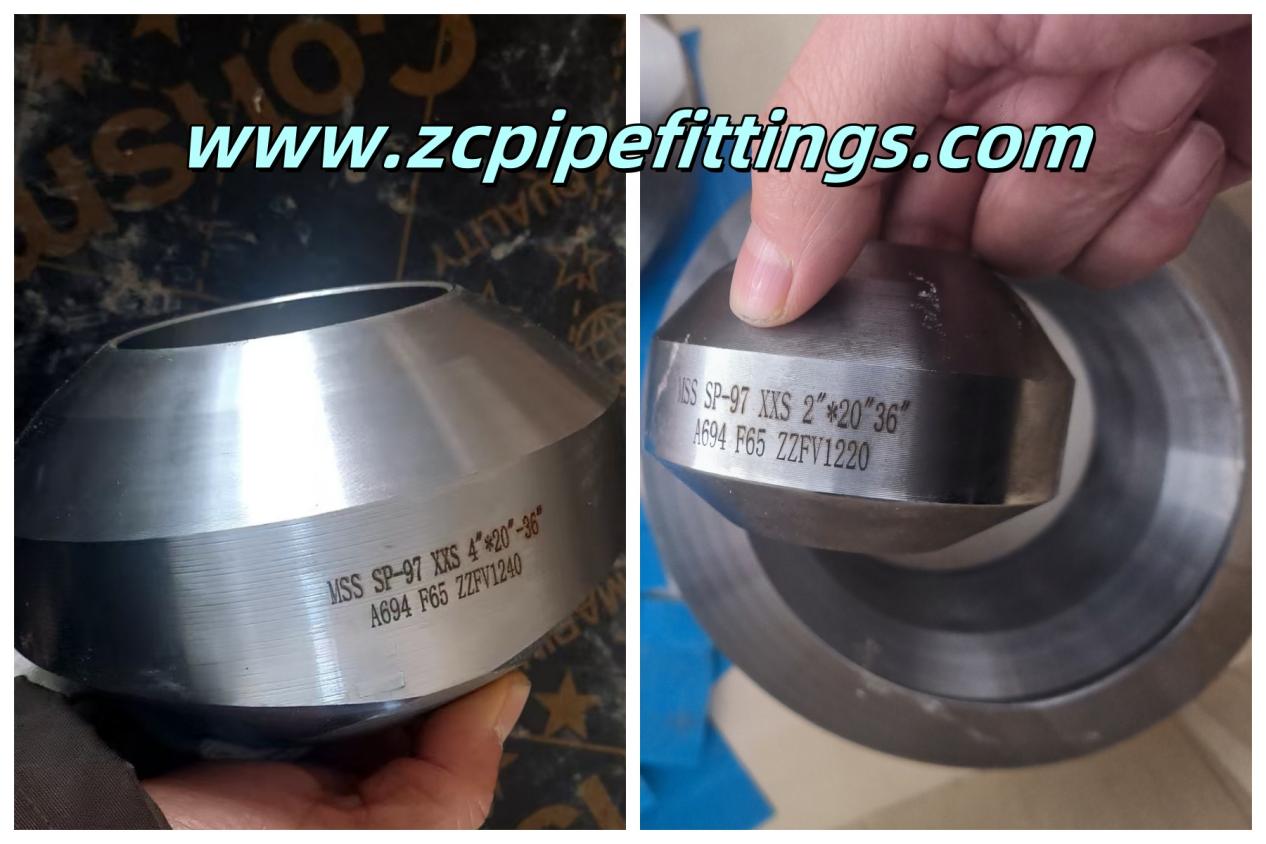

ASTM A694 F65 Weldolet Inspection photos

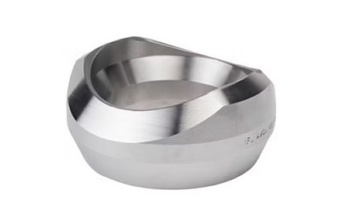

What Is a Weldolet?

A Weldolet is a type of "Olet" fitting designed to create a 90° branch connection from a main (header) pipe to a smaller branch pipe. It's butt-welded on both ends (to the run pipe and to the branch).

It's preferred in high-pressure applications due to its smooth flow path and high structural strength.

Specification of MSS SP-97 Weldolet Fittings

An ASTM A694 F65 weldolet is a type of pipe fitting used for creating a branch connection from a main pipe (run pipe) at a 90-degree angle. It is specifically made from forged carbon steel or alloy steel that conforms to the ASTM A694 grade F65 specification.

Size Range	1/8" - 24" / DN6 - DN600
Schedule Chart	STD, XS, SCH 160
Standard	MSS SP-97
Carbon Steel	ASTM A105 / A105N
Low Temp Carbon Steel	ASTM A350 LF2 / LF3
Pipeline Steel	ASTM A694 F42 / 46 / 56 / 60 / 65
Alloy Steel	ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Stainless Steel	ASTM A182 F304/304L/304H, 316/316L, 310S, 317, 347, 904L, 321
Duplex Stainless Steel	ASTM A182 F51, F53, F44

ASTM A694 F65 Chemical composition

C	≤0.30
Mn	≤1.60
P	≤0.025
S	≤0.025
Si	0.15-0.35

ASTM A694 F65 Mechanical Property

Yield Strength min.	450 MPa [65 ksi]
Tensile Strength min.	530 MPa [77 ksi]
Elongation min.	20

MSS SP-97 Weldolet Dimensions

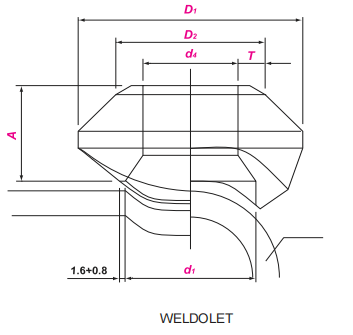

MSS SP-97 Weldolet

Run pipe Nominal Size		Branch Nominal Size		Length			OD of Fitting			Cut hole Dia.
Run pipe Nominal Size		A			D			d
DN	NPS	DN	NPS	STD	XS	SCH160	STD	XS	SCH	STD	XS	SCH160
8~900	1/4~36	6	1/8	16	16	-	24	24	-	16	16	-
10~900	3/8~36	8	1/4	16	16	-	26	16	-	16	16	-
15~900	1/2~36	10	3/8	19	19	-	30	30	-	19	19	-
20~900	3/4~36	15	1/2	19	19	28	36	36	36	24	24	14
25~900	1~36	20	3/4	22	22	32	43	43	46	30	30	19
32~900	11/4~36	25	1	27	27	38	55	55	51	36	36	25
40~900	11/2~36	32	11/4	32	32	44	66	66	63	45	45	33
50~900	2~36	40	11/2	33	33	51	74	74	71	51	51	38
65~900	21/2~36	50	2	38	38	55	90	90	82	65	65	43
80~900	3~36	65	21/2	41	41	62	104	104	98	76	76	54
90~900	31/2~36	80	3	44	44	73	124	124	122	93	93	73
100~900	4~36	90	31/2	48	48	-	138	138	-	113	113	-
125~900	5~36	100	4	51	51	84	154	154	154	120	120	98
150~900	6~36	125	5	57	57	94	187	187	188	141	141	122
200~900	8~36	150	6	60	78	105	213	227	222	170	170	146
250~900	10~36	200	8	70	99	-	265	292	-	220	220	-
300~900	12~36	250	10	78	94	-	323	325	-	275	265	-
350~900	14~36	300	12	86	103	-	379	381	-	325	317	-
400~900	16~36	350	14	89	10	-	411	416	-	257	361	-
450~900	18~36	400	16	94	106	-	465	468	-	408	403	-
500~900	20~36	450	18	97	111	-	522	525	-	459	455	-
550~900	22~36	500	20	102	119	-	573	584	-	508	509	-
650~900	26~36	600	24	116	140	-	690	708	-	614	612	-

ASTM A694 F65 Weldolet Applications

Oil & gas pipelines

Compressor stations

Manifolds and headers

Petrochemical plants

High-pressure transmission lines
