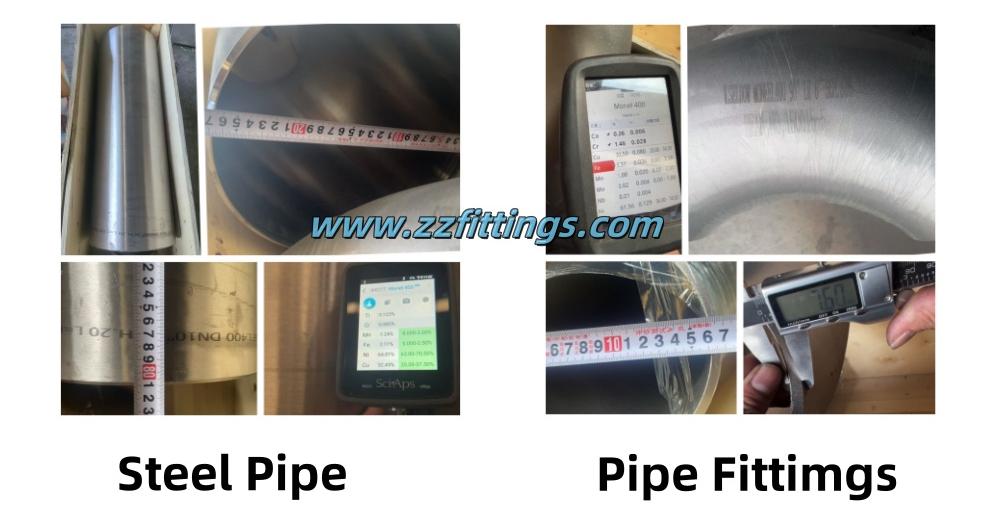

On January 5, 2025, we received an inquiry from an old customer from Italy. This customer had placed orders with our company many times and was particularly satisfied with the quality of our products. This time he needed to purchase a batch of monel 400 steel pipes and fittings. After a series of communications, the customer placed an order with us on January 10.

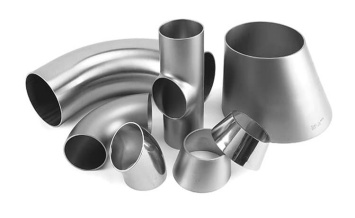

Monel 400 is a nickel-copper alloy renowned for its exceptional corrosion resistance in a wide array of aggressive environments. It's a solid solution alloy composed primarily of nickel (at least 63%) and copper (28-34%), with small amounts of iron, manganese, silicon, and carbon. This unique composition gives Monel 400 a set of properties that make it highly valuable for pipes and fittings in demanding applications.
NI | C | AL | MN | SI | FE | CU | S |
63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 - 2.5 | 28.0 - 34.0 | 0.02 max |
DENSITY | MELTING RANGE | YIELD STRESS (0.2%OFFSET) | TENSILE STRESS | ELONGATION |
8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40% |
ALLOY | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
MONEL 400 | N04400 | 2.436 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |

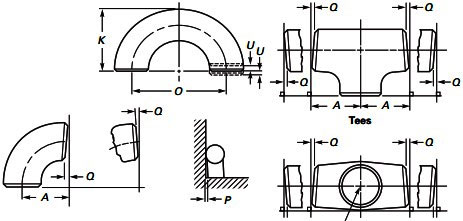

NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
(inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
(millimeter/ MM) | (inch./ Inches) | Center to Face | Center to Face | Center to Face | Radius | Center to Center | Back to face | |
(Inches) | (Inches) | (Inches) | (Inches) | (Inches) | (Inches) | |||
1/2 | 21.3 | 0.84 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.05 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.66 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.9 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.5 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.5 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.75 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.75 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
NPT/ ISO Pipe Size in. | Monel 400 | |
Male | Female | |
psig (bar) | psig (bar) | |
1/16 | 9 900 (682) | 6 000 (413) |
1/8 | 9 000 (620) | 5 800 (399) |
1/4 | 7 200 (496) | 5 900 (406) |
3/8 | 7 000 (482) | 4 700 (323) |
1/2 | 6 900 (475) | 4 400 (303) |
3/4 | 6 500 (447) | 4 100 (282) |
1 | 4 700 (323) | 3 900 (268) |
1 1/4 | 5 400 (372) | 4 500 (310) |
1 1/2 | 4 500 (310) | 4 100 (282) |
2 | 3 500 (241) | 3 500 (241) |
Welding:Use gas tungsten arc welding (GTAW/TIG) or shielded metal arc welding (SMAW).
Filler metals: Monel 60 or 61 (AWS A5.14 ERNiCu-7).
Avoid sulfur-containing materials to prevent cracking.
Joining: Threading, flaring, or compression fittings (for smaller pipes).
Thermal Expansion: Account for thermal growth in high-temperature systems.
Superior corrosion resistance compared to stainless steel (e.g., 316L) in chloride-rich environments.
Excellent resistance to stress-corrosion cracking.
Long service life in extreme conditions (e.g., offshore, chemical plants).
Non-magnetic and retains toughness at cryogenic temperatures.
Marine and offshore (resists seawater corrosion)
Chemical processing
Heat exchangers and condensers
Pump and valve components
Power generation
