On 14th, November, 2024, We received an inquiry from an Australian customer who needed a batch of 2 1/2” threaded caps The threads are required to be BSPP, the European standard thread. We manage to offer goods in various standard as required, so this demand can be fulfilled definitely.
After confirming the exact production standard and thread form in need, our client placed this order on 15th, November. After 10 days, goods are delivered by express to
Australia successfully.
Purchase Order List

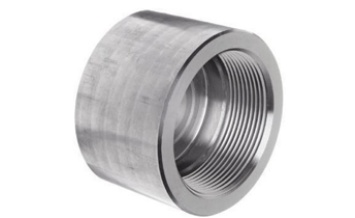

Specification of Threaded Caps for Pipe
Size | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" |
Pressure | Class 3000, 6000, 3M, 6M |
Standard | ASME B16.11, BS3799 |
Material | Carbon Steel, Alloy Steel, Stainless Steel, Duplex and Super Duplex Steel. |
ASTM A182 F304\304L Chemical Composition
CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo | N |
ASTM A182 F304 | MIN | 8.0 | 18.0 | |||||||
MAX | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 11.0 | 20.0 | 0.10 | ||
ASTM A182 F304L | MIN | 8.00 | 18.00 | |||||||
MAX | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 13.00 | 20.00 | 0.10 |
Stainless Steel 304\304L Mechanical Property
MATERIAL | ASTM A182 F304 | ASTM A182 F304H | ASTM A182 F304L |
T.S (MPA) | 515 min | 515 min | 485 min |
Y.S (MPA) | 205 min | 205 min | 170 min |
EL % | 30 min | 30 min | 30 min |
R/A % | 50 min | 50 min | 50 min |

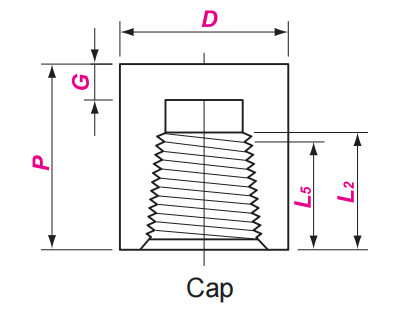

Class 3000 Threaded Cap Fitting Dimensions
Nominal Size | End-to-End | Outside Diameter | End Wall | Length of Thread | |||||
DN | NPS | P | D | Gmin | L 5 min | L 2 min | |||
3000 | 6000 | 3000 | 6000 | 3000 | 6000 | ||||
6 | 1/8 | 19 | - | 16 | 22 | 4.8 | - | 6.4 | 6.7 |
8 | 1/4 | 25 | 27 | 19 | 25 | 4.8 | 6.4 | 8.1 | 10.2 |
10 | 3/8 | 25 | 27 | 22 | 32 | 4.8 | 6.4 | 9.1 | 10.4 |
15 | 1/2 | 32 | 33 | 28 | 38 | 6.4 | 7.9 | 10.9 | 13.6 |
20 | 3/4 | 37 | 38 | 35 | 44 | 6.4 | 7.9 | 12.7 | 13.9 |
25 | 1 | 41 | 43 | 44 | 57 | 9.7 | 11..2 | 14.7 | 17.3 |
32 | 1 1/4 | 44 | 46 | 57 | 64 | 9.7 | 11.2 | 17 | 18 |
40 | 1 1/2 | 44 | 48 | 64 | 76 | 11.2 | 12.7 | 17.8 | 18.4 |
50 | 2 | 48 | 51 | 76 | 92 | 12.7 | 15.7 | 19 | 19.2 |
65 | 2 1/2 | 60 | 64 | 92 | 108 | 15.7 | 19 | 23.6 | 28.9 |
80 | 3 | 65 | 68 | 108 | 127 | 19 | 22.4 | 25.9 | 30.5 |
100 | 4 | 68 | 75 | 140 | 159 | 22.4 | 28.4 | 27.7 | 33 |
ASME B16.11 Threaded End Cap Weight Chart in KG
NOMINAL SIZE | WEIGHT | ||
DN | NPS | 3000 | 6000 |
6 | 1/8 | 0.03 | / |
8 | 1/4 | 0.05 | 0.11 |
10 | 3/8 | 0.07 | 0.17 |
15 | 1/2 | 0.14 | 0.29 |
20 | 3/4 | 0.24 | 0.42 |
25 | 1 | 0.41 | 0.76 |
32 | 1 1/4 | 0.71 | 0.96 |
40 | 1 1/2 | 0.88 | 1.42 |
50 | 2 | 1.25 | 2.24 |
65 | 2 1/2 | 2.29 | 3.8 |
80 | 3 | 3.29 | 5.43 |
100 | 4 | 5.65 | 9.26 |
How to inspect threaded caps?
Appearance Inspection

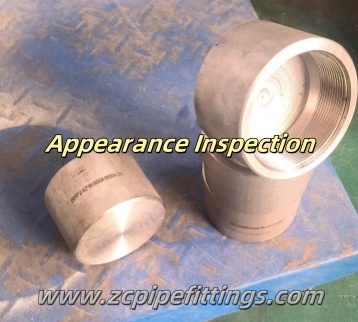

Surface defects: Use visual inspection to observe whether there are cracks, sand holes, pores, slag inclusions, folds and other defects on the surface of the pipe cap.
Surface color: The surface color of a normal pipe cap should be uniform. If there is a significant color difference, it may indicate that the pipe cap has problems such as improper heat treatment or uneven surface treatment during the manufacturing process.
Dimension Inspection

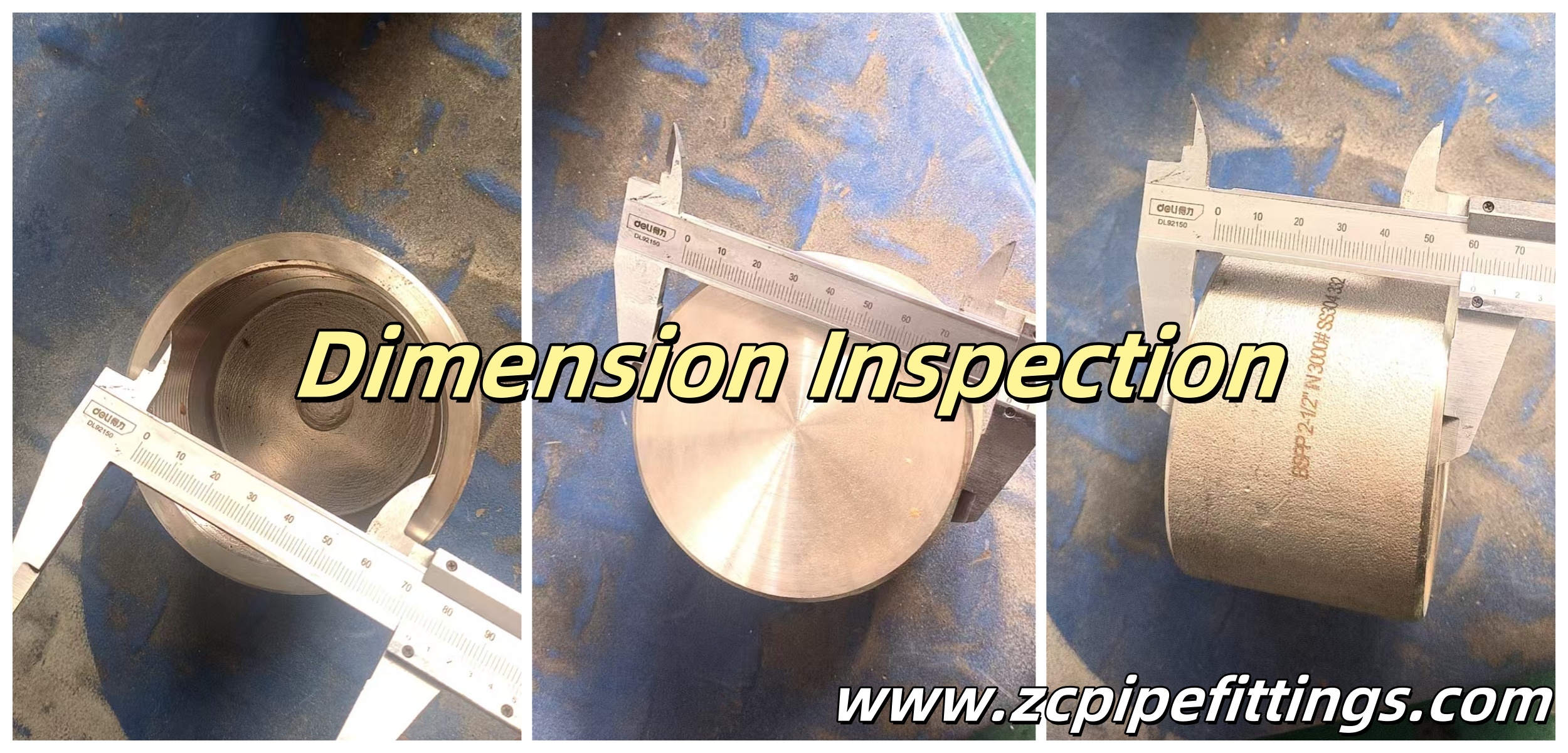

Outer diameter and inner diameter: Use measuring tools such as calipers and micrometers for measurement. When measuring the outer diameter, it is necessary to measure multiple times at different positions of the pipe cap to ensure that the outer diameter size is within the specified tolerance range. The accuracy of the inner diameter size is crucial for the fit between the pipe cap and the pipeline. If the inner diameter is too large or too small, it will affect the tightness and stability of the connection.
Length: Use a steel ruler or vernier caliper to measure the length of the pipe cap to ensure that its length meets the design requirements. Failure to meet the standard length may cause the pipe cap to be unable to be properly installed on the pipeline or to provide sufficient sealing length after installation.
Advantages of Stainless Steel Threaded Cap
Stainless steel threaded pipe cap is a pipe fitting used to seal the end of a pipe. It is usually made of stainless steel and has a threaded structure for connection with the pipe. It has the following significant advantages:
- Strong corrosion resistance
- Good mechanical properties
- Excellent sealing performance
- Easy to install and disassemble
- Beautiful and durable
- Strong versatility
