904L stainless steel buttweld pipe fittings are widely used connection components in piping systems, primarily joining two pipe sections by welding. These fittings are expertly designed to ensure stable and leak-proof pipe connections, playing a crucial role in various industrial environments.
Buttweld pipe fittings are widely used connection components in piping systems, primarily joining two pipe sections by welding. These fittings are expertly designed to ensure stable and leak-proof pipe connections, playing a crucial role in various industrial environments.
Butt weld fittings are mainly suitable for high-pressure pipelines that require high pressure resistance and precision dimensions, as well as other high-pressure applications in industries such as petrochemical, pharmaceutical and healthcare, power generation, aerospace, military, fire protection, metallurgy, shipbuilding, natural gas, nuclear power, and environmental protection.
Specifications | ASTM A403 |
Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
Type | Seamless / Welded / Fabricated |
CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo |
ASTM A403 WP904L | MIN | 23.00 | 19.00 | 4.000 | |||||
MAX | 0.02 | 2.00 | 0.045 | 0.035 | 1.00 | 28.00 | 23.00 | 5.000 |
MATERIAL | T.S (MPA) | Y.S (MPA) | EL % |
ASTM A403 WP904L | 490 min | 220 min | 28 min |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
Stainless Steel 904L Pipe Fittings | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
High Strength: Butt weld fittings connect to pipes through welding, forming a robust, integral unit that boasts high connection strength.
Excellent Sealing: The welding method creates an almost seamless connection between the fitting and the pipe, ensuring superior sealing performance.
Corrosion Resistance: Depending on the specific environment and medium, butt weld fittings can be made from various materials to enhance their corrosion resistance.

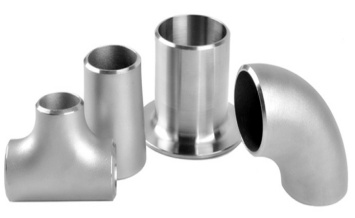

Stainless Steel buttweld fittings come in various types, such as elbows, tees, crosses, reducers, and caps. Each of these different types plays a crucial role in piping systems.

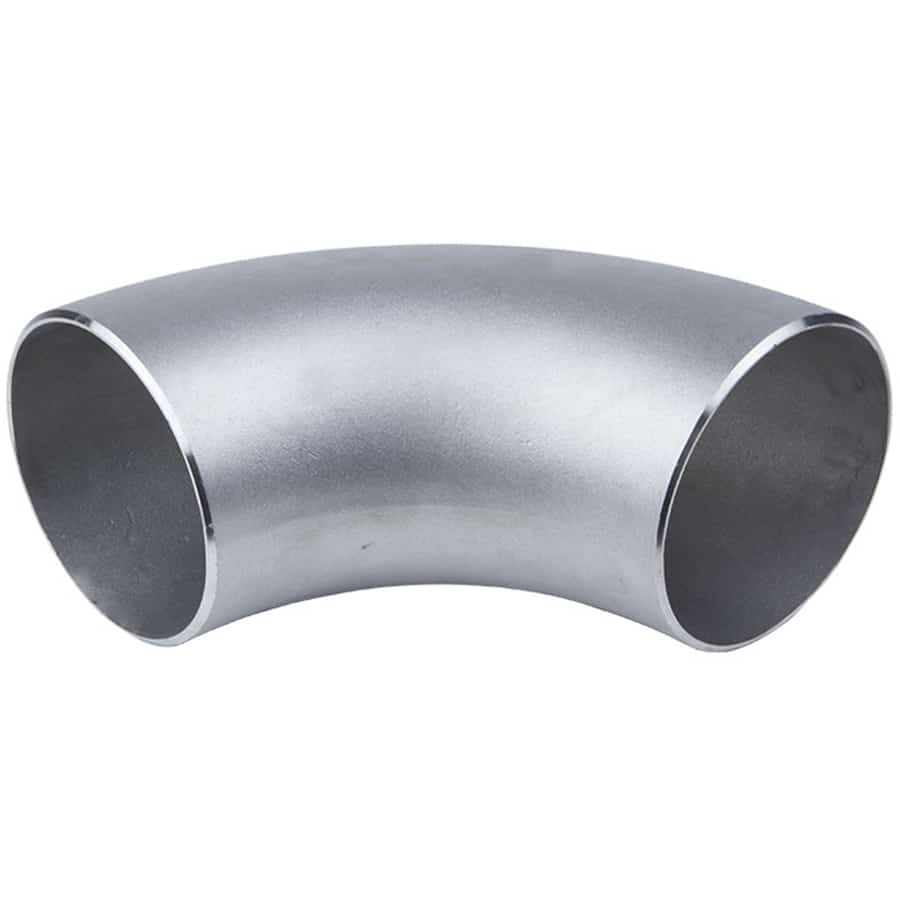

| Buttweld elbow is a common pipe connector, used to change the flow direction of the medium in the pipeline system. It is connected to the pipeline by butt welding.. |

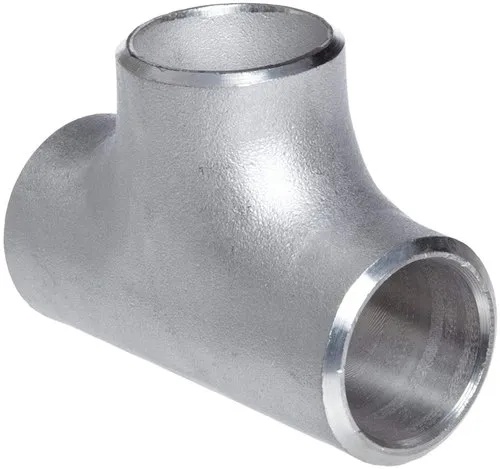

| Tees are used for branch connections in pipelines. They are fittings with three ports, available in T-shapes and Y-shapes, with both equal and reducing outlets, and are used where three pipes of the same or different sizes converge. The primary function of a tee is to change the direction of fluid flow. |

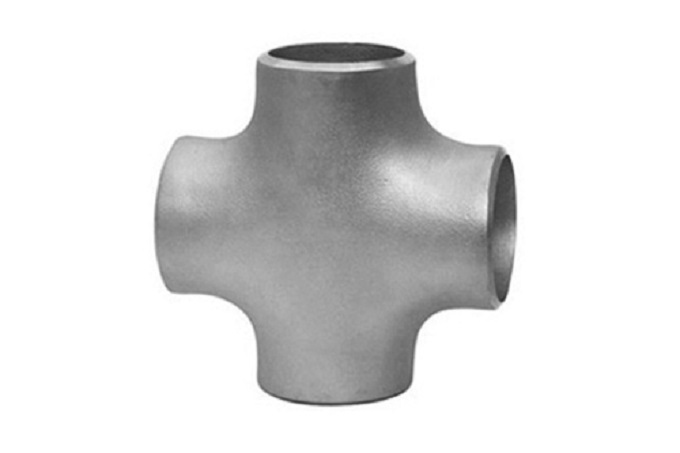

| Butt weld crosses are fittings with four ports. They can divide one main pipeline into three branch pipelines, or converge three branch pipelines into one main pipeline. |

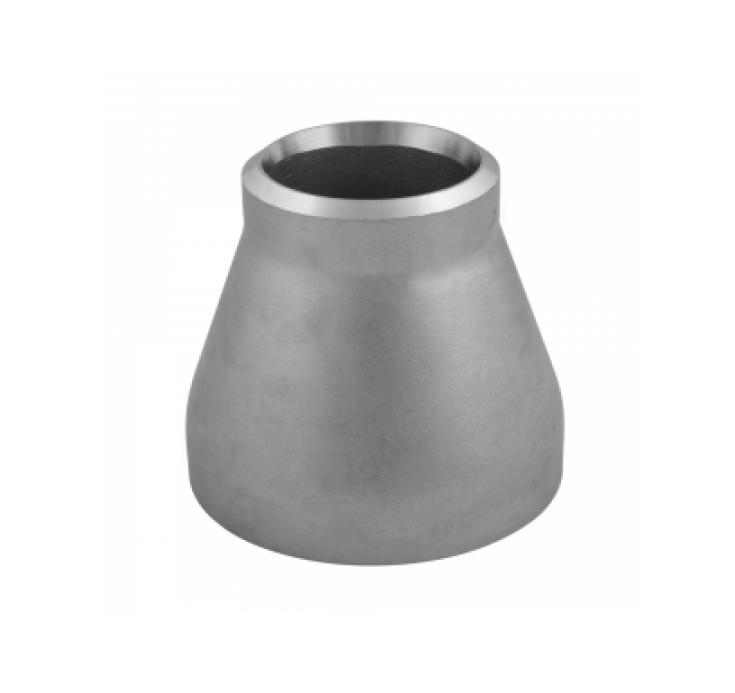

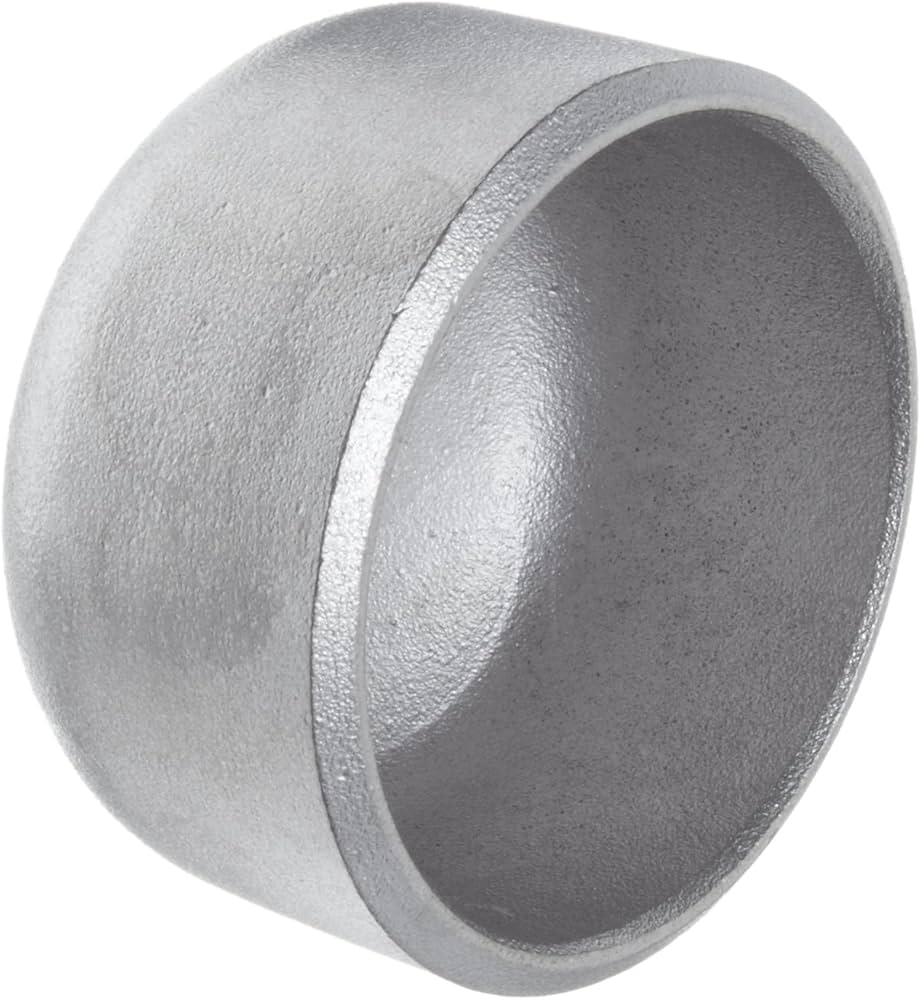

| Reducers are mainly used to connect two pipes of different diameters. Reducers are primarily categorized into concentric reducers and eccentric reducers. Concentric reducers have their central axes of both ends aligned, while eccentric reducers have their central axes offset. |
| Caps are pipe fittings primarily used to seal the end of a pipeline, preventing the leakage of media (such as gases or liquids) from within the pipe, and also serving to protect the pipe end. |
Nominal Size | Outside Diameter at Bevel | Center to End | Center to Center | Back to Face | ||||
90° Elbows | 45° Elbows | 180 Returns | ||||||
DN | NPS | OD | A | B | O | K | ||
3D | 3D | LR | SR | LR | SR | |||
15 | 1/2 | 21.3 | 76 | 48 | ||||
20 | 3/4 | 26.7 | 57 | 24 | 76 | 51 | ||
25 | 1 | 33.4 | 76 | 31 | 76 | 51 | 56 | 41 |
32 | 1 1/4 | 42.2 | 95 | 39 | 95 | 64 | 70 | 52 |
40 | 1 1/2 | 48.3 | 114 | 47 | 114 | 76 | 83 | 62 |
50 | 2 | 60.3 | 152 | 63 | 152 | 102 | 106 | 81 |
65 | 2 1/2 | 73 | 190 | 79 | 190 | 127 | 132 | 100 |
80 | 3 | 88.9 | 229 | 95 | 229 | 152 | 159 | 121 |
90 | 3 1/2 | 101.6 | 267 | 111 | 267 | 178 | 184 | 140 |
100 | 4 | 114.3 | 305 | 127 | 305 | 203 | 210 | 159 |
125 | 5 | 141.3 | 381 | 157 | 381 | 254 | 262 | 197 |
150 | 6 | 168.3 | 457 | 189 | 457 | 305 | 313 | 237 |
200 | 8 | 219.1 | 610 | 252 | 610 | 406 | 414 | 313 |
250 | 10 | 273 | 762 | 316 |
| 508 | 518 | 391 |
300 | 12 | 323.8 | 914 | 378 | 914 | 609 | 619 | 467 |
350 | 14 | 355.6 | 1067 | 441 | 1067 | 711 | 711 | 533 |
400 | 16 | 406.4 | 1219 | 505 | 1219 | 813 | 813 | 610 |
450 | 18 | 457 | 1372 | 568 | 1372 | 914 | 914 | 686 |
500 | 20 | 508 | 1524 | 632 | 1524 | 1016 | 1016 | 762 |
550 | 22 | 559 | 1676 | 694 | 1676 | 1118 | 1118 | 838 |
600 | 24 | 610 | 1829 | 757 | 1829 | 1219 | 1219 | 914 |
650 | 26 | 660 | 1981 | 821 | ||||
700 | 28 | 711 | 2134 | 883 | ||||
750 | 30 | 762 | 2286 | 964 | ||||
800 | 32 | 813 | 2438 | 1010 | ||||
850 | 34 | 864 | 2591 | 1073 | ||||
900 | 36 | 914 | 2743 | 1135 | ||||
950 | 38 | 965 | 2896 | 1200 | ||||
1000 | 40 | 1016 | 3048 | 1264 | ||||
1050 | 42 | 1067 | 3200 | 1326 | ||||
1100 | 44 | 1118 | 3353 | 1389 | ||||
1150 | 46 | 1168 | 3505 | 1453 | ||||
1200 | 48 | 1219 | 3658 | 1516 | ||||
All Fittings [Notes(1)and (2) | Center | Overall | Overall | 180 deg Returns | Lap Joint Ends | Angularity | ||||||||
Nominal | Outside | Inside | Center-to-Center | Back- | Align- | Outside | Fllet | Lap | Nominal | Off | Off | |||
1/2% to2 1/2 % | +0.06, | 0.03 | 0.06 | 0.06 | 0.12 | 0.25 | 0.25 | 0.03 | +0, | +0, | +0.06, | 1/2%to 4 | 0.03 | 0.06 |
3 to 3 1/2% | 0.06 | 0.06 | 0.06 | 0.06 | 0.12 | 0.25 | 0.25 | 0.03 | +0, | +0, | +0.06 | 5 to 8 | 0.06 | 0.12 |
4 | 0.06 | 0.06 | 0.06 | 0.06 | 0.12 | 0.25 | 0.25 | 0.03 | +0, | +0, | +0.06, | 10 to 12 | 0.09 | 0.19 |
5 to 8 | +0.09, | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.25 | 0.03 | +0, | +0, | +0.06 | 14 to 16 | 0.09 | 0.25 |
10 to 18 | +0.16, | 0.12 | 0.09 | 0.09 | 0.25 | 0.38 | 0.25 | 0.06 | +0, | +0, | +0.12, | 18 to 24 | 0.12 | 0.38 |
20 to24 | +0.25, | 0.19 | 0.09 | 0.09 | 0.25 | 0.38 | 0.25 | 0.06 | +0, | +0, | +0.12, | 26 to 30 | 0.19 | 0.38 |
26 to 30 | +0.25, | 0.19 | 0.12 | 0.19 | 0.38 | 32 to 42 | 0.19 | 0.50 | ||||||
32 to 48 | +0.25, | 0.19 | 0.19 | 0.19 | 0.38 | 44 to 48 | 0.19 | 0.75 | ||||||
