Dimension of API 5L GRB Carbon Steel Pipe

In the fields of high-pressure fluid transportation such as oil and gas exploration and development, long-distance pipeline engineering, and municipal gas transmission, the dimensional accuracy and structural stability of pipelines directly determine the safety, efficiency, and service life of the system. API 5L GRB carbon steel pipe, as a specialized pipeline steel standard product developed by the American Petroleum Institute (API), has become the core choice for global oil and gas and high-pressure fluid transportation projects due to strict size control, excellent mechanical properties, and corrosion resistance. The strict specification and inspection of API 5L GRB carbon steel pipe dimensions make it not only the key to engineering selection, but also the core prerequisite for ensuring the pressure safety of pipeline systems and reducing leakage risks.

Introduction to API 5L Standard

Specification

API 5L is an internationally recognized standard for seamless and welded pipeline steel pipes, mainly applicable to pipeline systems transporting oil, natural gas, water, and other fluids, covering various working conditions from room temperature and low pressure to high temperature and high pressure. This standard specifies the classification system of pipes, API 5L GRB carbon steel pipe size tolerances, chemical composition, mechanical properties, process requirements, and inspection procedures, aiming to ensure the structural stability and corrosion resistance of pipes in long-distance transportation and complex geological environments.

The standard divides pipes into two levels: "PSL1" (Product Specification Level 1) and "PSL2" (Product Specification Level 2): PSL1 focuses on basic performance and economy, and is suitable for general transportation scenarios; PSL2 has stricter requirements in terms of chemical composition, mechanical properties, non-destructive testing, etc., and is suitable for key projects with high pressure, strong corrosiveness, or complex geological conditions. API 5L GRB belongs to the basic grade of PSL1, and is currently a widely used pipeline steel product in the market, balancing performance and cost advantages.

Material

API 5L GRB carbon steel pipe is made of low-carbon manganese steel as the substrate, and achieves performance balance under high pressure conditions through composition optimization and process control.

Chemical composition: Scientifically blending major elements such as carbon, manganese, and silicon, and strictly controlling the content of harmful impurities such as sulfur and phosphorus, while ensuring material strength, effectively avoiding brittle fracture hazards caused by impurities; Some high-end products significantly enhance the yield strength and aging resistance of pipes by adding trace amounts of alloying elements such as niobium and vanadium.

Mechanical properties: It has excellent tensile and yield resistance, and can withstand axial stress caused by geological settlement and temperature changes in long-distance pipelines; Excellent toughness performance in low-temperature environments can effectively prevent the occurrence of brittle fracture problems.

Corrosion resistance: By optimizing the element ratio and impurity control of the substrate, the ability to resist atmospheric corrosion in natural environments has been enhanced; Combined with anti-corrosion coatings, it can be used stably for a long time in various complex environments, reducing the risk of electrochemical corrosion.

Process

API 5L GRB carbon steel pipe must follow strict process specifications to ensure that each pipe meets the standard size requirements:

Forming process: Seamless pipes adopt hot rolling perforation (perforation and rolling after heating to 1200-1250 ℃) or cold drawing (cold rolling) process, without welding joints, with stronger pressure resistance, suitable for high-pressure long-distance pipelines; Welded pipes are made using straight seam submerged arc welding (LSAW), spiral submerged arc welding (SSAW), or resistance welding (ERW) processes. Among them, spiral submerged arc welded pipes are more suitable for large-diameter long-distance pipelines due to the uniform stress on the weld seam.

Heat treatment: Normalization treatment (heating to 880-920 ℃ and then air cooling) or controlled rolling must be carried out to refine the grain size, eliminate internal stress, improve the uniformity of mechanical properties of the pipe, and avoid dimensional deformation caused by rolling stress; The welded pipe also needs to undergo local heat treatment on the weld seam to ensure that the weld strength is consistent with the base metal.

Size control: During the rolling process, an online caliper is used to monitor the outer diameter and wall thickness in real time. For the cold drawing process, the precision of the mold is controlled to ensure that the size deviation of the API 5L GRB carbon steel pipe meets the standard requirements; The fixed length cutting adopts CNC cutting equipment, and the length deviation is controlled within ± 5mm to reduce on-site splicing errors.

API 5L GRB Carbon Steel Pipe

The API 5L GRB carbon steel pipe has a wide range of size specifications, which can meet various needs from small and medium-sized industrial pipelines to ultra large diameter long-distance pipelines. The core size parameters are as follows:

Outer Diameter (OD) Range

Seamless pipe: The common outer diameter specifications are 1/8 inch (10.3mm) -24 inches (610mm), with small and medium-sized diameters (1/8 inch -8 inches) mainly used for high-pressure pipelines in industrial plants, and large diameters (10 inch -24 inches) suitable for long-distance pipeline branches;

Welded pipe: The outer diameter can be expanded to 48.0 inches (1219.2mm), and the ultra large diameter (30.0-48.0 inches) spiral submerged arc welded pipe is the core choice for cross regional long-distance main pipelines, such as the 36.0 inch (914.4mm) specification commonly used in large-scale projects such as the West East Gas Pipeline.

Wall Thickness (Schedule)

The wall thickness is represented by the "Sch" series of API standards, covering the full range of requirements from low-pressure thin walls to high-pressure thick walls. Common specifications and corresponding wall thicknesses (taking a 12 inch outer diameter as an example) are as follows:

Sch10: Wall thickness of 4.57mm, suitable for low-pressure fluid transportation, such as municipal reclaimed water pipelines;

Sch20: Wall thickness of 6.35mm, suitable for medium and low pressure oil and gas branch pipelines;

Sch30: Wall thickness of 8.38mm, commonly used for industrial high-pressure water transportation;

Sch40：10.31mm， It is the basic specification of API 5L GRB, widely used in oil and gas field gathering and transportation pipelines;

Sch60：14.27mm， Suitable for high-pressure oil and gas long-distance pipelines;

Sch80：17.48mm， Adapt to ultra-high pressure conditions, such as connecting pipes for oil and gas deep well wellheads;

Sch120/Sch160：25.4mm、33.32mm， Used for critical pipelines in extreme high pressure or corrosive environments.

Length Specifications

Standard sizing: The common lengths for seamless pipes are 20 feet (6.096m) and 40 feet (12.192m); Due to transportation restrictions, the standard length for welded pipes is 40 feet (12.192m), while large-diameter spiral welded pipes can be customized to a length of 60 feet (18.288m) to reduce on-site welding interfaces;

Special length: Any length of 5-12 meters can be provided according to engineering requirements. For mountainous pipelines, due to terrain limitations, 8-10 meters of short pipe materials are often customized to reduce construction difficulty.

Tolerance

The API 5L standard has strict control over dimensional accuracy, with the following core tolerances:

Outer diameter tolerance: The outer diameter tolerance of seamless pipes is ± 0.5%, and that of welded pipes is ± 1.0%. For example, for 12 inch (323.8mm) outer diameter pipes, the allowable deviation for seamless pipes is ± 1.62mm, and the allowable deviation for welded pipes is ± 3.24mm;

Wall thickness tolerance: The wall thickness tolerance for seamless pipes is ± 12.5%, and for welded pipes it is ± 10%. Taking Sch40 (12.70mm wall thickness) as an example, the allowable deviation for seamless pipes is ± 1.59mm, and for welded pipes it is ± 1.27mm;

Length tolerance: The fixed length tolerance is ± 5mm to ensure the accuracy of interface alignment during on-site splicing.

API 5L GRB Carbon Steel Pipe Dimension and Weight

Dimension of Wall Thickness Table

Weight List（KG）

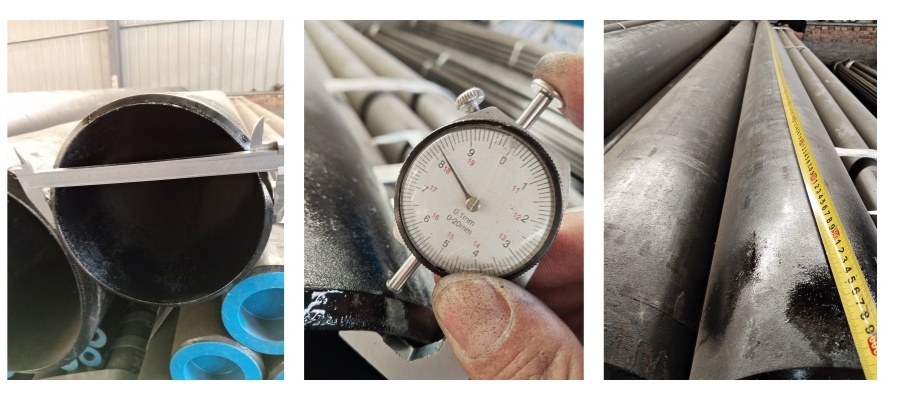

To ensure that the dimensional accuracy of API 5L GRB carbon steel pipes meets the standard requirements, multiple professional inspections are required, and the core inspection methods are as follows:

Outer Diameter and Wall Thickness Inspection

Online real-time detection: During the rolling process, laser diameter gauges and ultrasonic thickness gauges are used to continuously monitor the outer diameter and wall thickness. The data is transmitted in real-time to the control system, and process parameters are automatically adjusted when it exceeds the tolerance;

Offline sampling inspection: 3-5 pipes are randomly selected from each batch, and the outer diameter is measured using a digital caliper (with an accuracy of 0.01mm). The wall thickness is measured using an ultrasonic thickness gauge (with an accuracy of 0.02mm), and the detection points cover both ends and the middle position of the pipe. At least 8 points are measured for each pipe to ensure dimensional uniformity;

Ellipticity test: For seamless pipes, it is necessary to measure the maximum and minimum outer diameters of the same section with a caliper, calculate the ellipticity ((maximum outer diameter - minimum outer diameter)/standard outer diameter x 100%), and ensure it is ≤ 1.5% to avoid connection and sealing problems caused by excessive ellipticity.

Length and Straightness Inspection

Length inspection: Use a laser rangefinder (accuracy ± 1mm) or steel tape measure (accuracy ± 1mm) to measure the total length of the pipe to ensure compliance with the specified length requirements;

Straightness inspection: Place the pipe on a horizontal inspection platform and measure along the axis of the pipe with a dial gauge (accuracy 0.01mm). The straightness deviation within each meter of length should be ≤ 1.5mm, and the straightness deviation of the entire length should be ≤ 0.15% x length to prevent installation difficulties caused by pipe bending.

Third Party Authoritative Verification

For pipes used in key projects, third-party inspection agencies (such as SGS, BV) need to be commissioned to conduct size verification. Coordinate measuring instruments should be used to perform 3D scanning of key dimensions and generate size reports to ensure the authenticity and traceability of data; At the same time, verify the "Material Certificate (MTC)" provided by the manufacturer to confirm that the dimensional parameters are consistent with the standard requirements.

Surface Treatment Methods of Carbon Steel Pipes

In order to improve the corrosion resistance and service life of the pipes, API 5L GRB carbon steel pipes need to choose targeted surface treatment methods according to the application environment. The differences in the uses of different treatment methods are as follows:

Hot-Dip Galvanizing

Process: Immerse the pipe in molten zinc solution (temperature 440-460 ℃) to form a galvanized layer with a thickness of 80-120 μ m on the surface, and the adhesion of the coating should be ≥ 5N/mm;

Purpose: Suitable for pipelines buried in soil and in humid environments, such as municipal gas branch lines and oilfield gathering and transmission branch lines. It can effectively resist soil electrochemical corrosion and moisture erosion, and has a service life of 15-20 years.

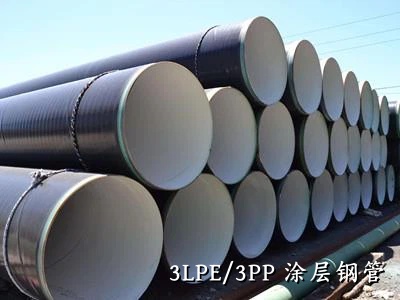

3PE Anti-Corrosion Coating

Processing technology: Adopting a three-layer composite structure of "bottom layer epoxy resin (thickness 80-120 μ m)+intermediate adhesive (thickness 170-250 μ m)+outer layer polyethylene (thickness 1.8-3.0mm)", formed through electrostatic spraying and winding technology;

Purpose: It is the preferred treatment method for long-distance oil and gas pipelines, such as cross regional natural gas transmission main pipelines and crude oil transmission pipelines. It can be used for a long time in complex environments such as soil, wetlands, and deserts, with strong corrosion resistance and a service life of over 30 years.

Fusion Bonded Epoxy Powder (FBE) Coating

Processing technology: Heat the epoxy powder to 200-230 ℃ and spray it evenly on the surface of the pipe to form a powder coating with a thickness of 300-500 μ m and a coating hardness of ≥ 3H;

Purpose: Suitable for high-pressure and high-temperature fluid transportation pipelines, such as oil and gas deep well wellhead pipes and high-temperature steam pipelines. It has excellent high temperature resistance (long-term use temperature ≤ 120 ℃) and scratch resistance, and can resist corrosion from complex underground media.
