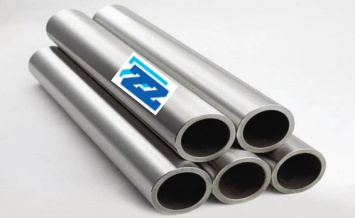

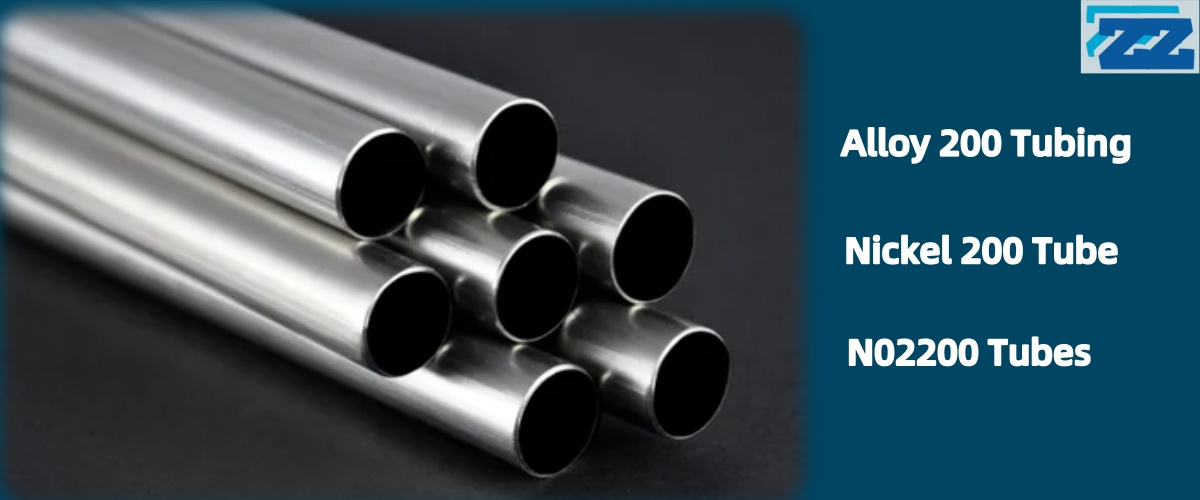

Nickel 200 tubing is made from commercially pure wrought nickel (typically 99.6% nickel). This alloy is known for its excellent corrosion resistance, good mechanical properties, and high thermal and electrical conductivity.
Excellent Corrosion Resistance: Nickel 200 exhibits outstanding resistance to many corrosive environments, particularly caustic alkalies. It also performs well in de-aerated acids and is resistant to distilled and natural waters.
Good Mechanical Properties: It possesses good tensile strength, toughness, and ductility, making it suitable for various fabrication processes, including welding and forming.
High Thermal Conductivity: This makes it useful in heat transfer applications.
High Electrical Conductivity: It's suitable for electrical and electronic components.
Magnetic and Magnetostrictive Properties: Nickel 200 is magnetic and exhibits magnetostrictive properties.
Low Gas Content and Vapor Pressure: These characteristics are beneficial in specific applications.
Weldability: It can be readily welded using conventional methods.
Nickel 200 is a commercially pure wrought nickel alloy, meaning it consists primarily of nickel (typically >99.0%) with small amounts of other elements. It is also known by the UNS designation N02200 and Werkstoff numbers 2.4060 and 2.4066.Think of it as just nickel that has been carefully refined, melted, and hot‑ or cold‑worked into usable mill products (tube, pipe, bar, plate, wire, forgings) while keeping impurities extremely low.
Chemical Processing Equipment
Food Processing Equipment
Electronics
Aerospace and Missile Components
Heat Exchangers
Piping and Equipment in Alkali Handling
Water Systems
Electroplating Components.
Salt Production.
Caustic Evaporators.
Chemical Shipping Drums.
Rocket Motor Cases.
Specifications | ASTM B163, B730 / ASME SB167, SB516 |
Dimensions | ASTM, ASME and API |
Size | 1/2″ NB – 24″ NB |
Wall Thickness | Schedule 5S – Schedule XXS. |
Manufacturing Shapes | Round, Rectangle, Square, Hex |
Manufacturing Techniques | Seamless / Welded / ERW / Fabricated |
Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
Packing of Tubes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
Applicable Standards
ASTM B161: Standard Specification for Nickel Seamless Pipe and Tube
ASTM B163: Standard Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes
ASME SB161: Similar to ASTM B161
ASME SB163: Similar to ASTM B163
DIN 17751: Nickel; seamless drawn tubes
ISO 6207: Nickel and nickel alloys -- Wrought products -- Tubes
BS 3073: Specification for Nickel and nickel alloys - Seamless tubes
Other standards like ASME SB-730, ASME SB-751, ASTM B725, ASTM B730, ASTM B751, ASTM B775, ASTM B829.
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Yield Strength, min. (ksi) | 15 |
Tensile Strength, min. (ksi) | 55 |
Elongation, min. (%) | 40 |
System / Standard | Grade | Notes |
UNS (Unified Numbering System, ASTM/ASME) | N02200 | Primary NorthAmerican alloy code |
Werkstoffnummer (DIN / EN) | 2.4060 (annealed) | German/European numbering; both map to Nickel 200 chemistry |
2.4066 (coldworked) | ||
ISO 6208 | Ni99.2 | International designation for wrought nickel ≥ 99 % |
BS (British Standard) | NA11 | Historical BS 3076; still seen on UK drawings |
JIS (Japan) | NW 2200 | JIS H4551 for wrought nickel |
AFNOR (France) | NFa 54101, NuA | Less common today, but appears in legacy specs |
GOST (Russia/CIS) | НП2 (NP2) | Russian spec for ≥ 99 % Ni wrought products |
CSA / SAE (Canada/USA) | SAE AMS 5553 / 5582 | Aerospace tubing & sheet specs based on Nickel 200 |
Carbon Content:
Nickel 200 has a maximum carbon content of 0.15%.
Nickel 201 is a low-carbon version with a maximum carbon content of only 0.02%.
High-Temperature Applications:
Nickel 200 is generally recommended for service below 600°F (315°C). At higher temperatures (around 800-1200°F or 425-650°C), the higher carbon content can lead to graphitization (carbon precipitation at the grain boundaries), which can embrittle the material and compromise its mechanical properties.
Nickel 201, with its lower carbon content, is preferred for service above 600°F (315°C) and can be used up to around 1250°F (677°C) in some applications. The lower carbon minimizes the risk of graphitization, maintaining the alloy's integrity at higher temperatures.
Fabrication:
Nickel 201 generally exhibits a lower work-hardening rate and lower annealed hardness compared to Nickel 200. This makes it more suitable for cold forming operations like deep drawing and spinning.
While both alloys have good weldability, the lower carbon content in Nickel 201 can sometimes offer slightly improved weldability and reduce the risk of weld-induced intergranular corrosion. However, the oxyacetylene welding process is generally not recommended for Nickel 201.
Mechanical Properties:
At room temperature, the mechanical properties of Nickel 200 and 201 are quite similar. Nickel 200 might exhibit slightly higher tensile and yield strength in some specifications, but the difference is generally not significant. The key difference in mechanical properties becomes apparent at elevated temperatures where Nickel 201 retains its strength and ductility better due to its resistance to graphitization.
Applications:
Nickel 200 is commonly used in chemical and food processing equipment, electronic components, and aerospace components where temperatures are generally lower.
Nickel 201 is often chosen for higher-temperature applications like caustic evaporators, combustion boats, heating element lead wires, and components in the chlor-alkali process.
Corrosion Resistance:
While both have excellent overall corrosion resistance, there might be subtle differences in specific environments due to the slight variation in composition. Some sources suggest Nickel 200 might have slightly better resistance in reducing environments, while Nickel 201 might have slightly better resistance in oxidizing environments in some cases, but their resistance to caustic alkalies is outstanding.
Tube O.D. | Wall Thickness of Tube (inches) | |||||||
(in.) | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | 0.095 | 0.109 | 0.12 |
Working Pressure (psig) | ||||||||
1/8 | 7900 | 10100 | ||||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
5/16 | 3700 | 5400 | 7300 | |||||
3/8 | 3100 | 4400 | 6100 | |||||
1/2 | 2300 | 3200 | 4400 | |||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Length,ft | Tube Size,in. | Permissible Variations,in. | ||||
Over | Under | |||||
U.S.Customary Units | ||||||
Under 1 | Up to 1.250, incl | 1/32 | 0 | |||
1 to 4, incl | Up to 1.250, incl | 1/16 | 0 | |||
Over 4 to 10, incl | Up to 1.250, incl | 3/32 | 0 | |||
Over 10 | Up to 1.250, incl | 3/16 | 0 | |||
Metric Units | ||||||
Length, m | Tube Size,mm | Over | Permissible Variations,mm | |||
Under 0.3 | Up to 31.75, incl | 0.794 | 0 | |||
0.3 to 1.2, incl | Up to 31.75, incl | 1.59 | 0 | |||
1.2 to 3.0, incl | Up to 31.75, incl | 2.38 | 0 | |||
Over 3.0 | Up to 31.75, incl | 4.76 | 0 | |||
Specified Outside Diameter,in. | Outside Diameter,in | Inside Diameter,in | Wall Thickness,% | |||
+ | - | + | - | + | - | |
U.S.Customary Units | ||||||
Under 3/32 | 0.002 | 0 | 0 | 0.002 | 10 | 10 |
to 3/16 (0.1875), excl | 0.003 | 0 | 0 | 0.003 | 10 | 10 |
3/16 to 1/2 (0.500), excl | 0.004 | 0 | 0 | 0.004 | 10 | 10 |
1/2 to 11/4 (1.250), incl | 0.005 | 0 | 0 | 0.005 | 10 | 10 |
Millimetres | ||||||
Under 2.38 | 0.051 | 0 | 0 | 0.051 | 10 | 10 |
2.38 to 4.76, excl | 0.076 | 0 | 0 | 0.076 | 10 | 10 |
4.76 to 12.70, excl | 0.102 | 0 | 0 | 0.102 | 10 | 10 |
12.70 to 31.8, incl | 0.127 | 0 | 0 | 0.127 | 10 | 10 |
1. Excellent Corrosion Resistance
2. High Purity
3. Good Mechanical Properties
4. High Thermal and Electrical Conductivity
5. Specific Physical Properties
6. Good Weldability and Fabricability
7. Versatility in Applications
8. Cost-Effective in the Long Run
-Pipe and Tube (EN 10216-5, ASTM A213, ASTM A249, A312, A790,)
-Forged Fitting and Flange (ASTM A182 , ASTM A105,ASTM B564 )
-Butt Weld Fittings (ASTM A234, ASTM A403,ASTM A815)
-Round bar , Billet (ASTM A276, ASTM A479)
- Plate, Sheet, Strip(ASTM A240, EN 10028-7, A480)
-Bolting, Nuts（ASTM A193, A194, A320）
