The quality and performance of ASME B16.11 threaded fittings, as the core components for pipeline connection and medium diversion, directly affect the safety and stability of industrial pipeline system operation. ASME B16.11 carbon steel threaded tee, as an important member of the threaded pipe fittings family, have become indispensable pipeline fittings in many industrial fields such as petrochemicals, power energy, etc., thanks to strict international standard system certification, excellent mechanical properties, and wide applications.
ASME B16.11 is a standard specification for forged fittings developed by the American Society of Mechanical Engineers (ASME), which includes socket welded fittings and threaded fittings. This standard specifies key indicators such as the structural form, dimensional accuracy, material selection, and pressure rating of forged pipe fittings, providing a unified standard basis for manufacturers and users.
Type | Equal Tee and Reducing Tee |
Size | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" |
Class | 2000, 3000, 6000, 2M, 3M, 6M |
Grade | ASTM A105, A350 LF2, A182 F304 / F316 / F51, F53, F11, F22 |
In terms of specifications and dimensions, ASME B16.11 carbon steel threaded tee range from 1/8" to 4", with pressure ratings divided into Class 2000, Class 3000, and Class 6000, and can be adapted to various pipe diameters for connection. At the same time, the standard also has clear requirements for thread forms, with the commonly used being NPT (American Standard Cone Pipe Thread), which has good sealing properties and can effectively prevent fluid leakage, ensuring the normal operation of pipeline systems.

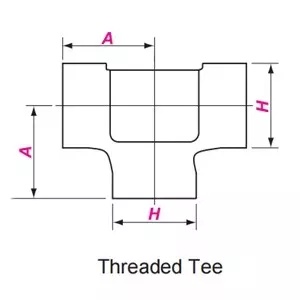

DN | NPS | A | H | ||||
2000LB | 3000LB | 6000LB | 2000LB | 3000LB | 6000LB | ||
6 | 1/8 | 21 | 21 | 25 | 22 | 22 | 25 |
8 | 1/4 | 21 | 25 | 28 | 22 | 25 | 33 |
10 | 3/8 | 25 | 28 | 33 | 25 | 33 | 38 |
15 | 1/2 | 28 | 33 | 38 | 33 | 38 | 46 |
20 | 3/4 | 33 | 38 | 44 | 38 | 46 | 56 |
25 | 1 | 38 | 44 | 51 | 46 | 56 | 62 |
32 | 1 1/4 | 44 | 51 | 60 | 56 | 62 | 75 |
40 | 1 1/2 | 51 | 60 | 64 | 62 | 75 | 84 |
50 | 2 | 60 | 64 | 83 | 75 | 84 | 102 |
65 | 2 1/2 | 76 | 83 | 95 | 92 | 102 | 121 |
80 | 3 | 86 | 95 | 106 | 109 | 121 | 146 |
100 | 4 | 106 | 114 | 114 | 146 | 152 | 152 |
The tolerance range is an important indicator for measuring the manufacturing accuracy of pipe fittings, and the ASME B16.11 standard has strict regulations on this. In terms of dimensional tolerances, for key dimensions such as the outer diameter, inner diameter, and length of the main and branch pipes of a three-way valve, the tolerance range is usually controlled within a small range to ensure the connection between the pipe fittings and the pipeline. In terms of thread tolerance, following the ANSI/ASME B1.20.1 standard ensures that the thread profile, pitch, and other parameters meet the requirements, improving the reliability and sealing of threaded connections.
Nominal Size | Elbows,Tees & Crosses | Couplings | Half- couplings | |
Center-to-End | End-to-End | End-to-End | ||
DN | NPS |
| W | W/ 2 |
6~8 | 1/8~1/4 | ± 1.0 | ± 1.0 | ± 1.0 |
10~20 | 3/8~3/4 | ± 1.5 | ± 1.5 | ± 1.5 |
25~50 | 1~2 | ± 2.0 | ± 2.0 | ± 2.0 |
65~100 | 21/2~4 | ± 2.5 | ± 2.5 | ± 2.5 |
Joint Type | Class | Grade of Connecting Pipes |
THRD | 2000 |
|
3000 | Sch160 | |
6000 | XXS |
EN 10241: This standard specifies the entire manufacturing process of industrial socket welding and threaded fittings, with clear requirements for material selection, manufacturing processes, final dimensional inspection, testing, and other aspects. It is widely used in the European market and regions that follow the European standard system, providing unified and strict specifications for the selection of pipe fittings for local industrial pipeline construction..
BS 3799: BS 3799 is a standard developed in the UK for socket welding and threaded fittings of forged carbon steel and alloy steel. It is widely used in Commonwealth countries and some areas deeply influenced by British industry. This standard has clear specifications for the design, manufacturing, inspection, and other aspects of pipe fittings, covering the common size range from 1/8 inch to 4 inches. In terms of material requirements, BS 3799 has specific limitations on the carbon content of carbon steel and the alloy element content of alloy steel to ensure the mechanical properties of pipe fittings under different working conditions. In terms of pressure rating, the corresponding pressure rating to ASME B16.11 is specified, which facilitates selection reference under different standard systems. At the same time, BS 3799 has its own characteristics in details such as thread accuracy of pipe fittings and dimensional tolerances of socket parts, emphasizing the sealing and reliability of pipe fittings connections, and is suitable for medium and high pressure pipeline systems in multiple industrial fields such as petroleum, chemical, and power.
JIS B2316: This standard mainly applies to forged socket fittings, covering various product types such as elbows, tees, reducers, etc. Detailed explanations have been provided on the material characteristics, manufacturing process details, inspection procedures, and acceptance criteria of the pipe fittings. JIS B2316 is widely referenced in Asia and some other regions. In terms of material selection, it focuses more on common steel grades in Japan and has unique requirements for surface treatment and anti-corrosion processes of pipe fittings to adapt to the complex climate and industrial environment in Asia. For example, in some coastal areas, the requirements for the resistance of pipe fittings to seawater corrosion are more prominent.
ASTM A105 is a carbon steel forging standard developed by the American Society for Testing and Materials (ASTM), commonly used for manufacturing ASME B16.11 carbon steel threaded tees. This standard strictly regulates the chemical composition, mechanical properties, heat treatment process, and other aspects of materials to ensure that they have excellent comprehensive performance and can meet the usage needs of industrial pipeline systems under various working conditions.
Chemical Composition
| CHEMICAL | LIMITS | C | Mn | P | S | Si | Cu | Ni | Cr | Mo | V |
| ASTM A105 | MIN | 0.60 | 0.10 | ||||||||
| MAX | 0.35 | 1.05 | 0.035 | 0.040 | 0.35 | 0.40 | 0.40 | 0.30 | 0.12 | 0.08 |
Mechanical Properties
| MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | R/A % | HARDNESS |
| ASTM A105 | 485 min | 250 min | 22 min | 30 min | 197 max |
From the perspective of material properties, ASTM A105 carbon steel has good strength and toughness. Its tensile strength is usually not less than 485MPa, and its yield strength is not less than 250MPa. It can withstand high pressure and load and performs well in high-pressure pipeline systems. At the same time, the material also has good plasticity, with an elongation rate of not less than 22% and a cross-sectional shrinkage rate of not less than 30%, which makes the pipe fittings have good processing performance during the manufacturing process. They can be made into complex shapes through forging and other processes, and are not easily damaged by external impact during use.
However, although ASTM A105 material has strong durability in conventional environments, there is still a risk of rusting in special corrosive media or humid environments. To extend the service life of ASME B16.11 carbon steel threaded tees, common surface treatment methods include:
Hot dip galvanizing: immersing a tee into molten zinc to form a dense zinc layer, isolating air from contact with carbon steel, suitable for outdoor and humid environments; Hot dip galvanized threaded tees require the hot-dip galvanizing process first, followed by the end threading. Because if the threads are processed first and then galvanized, the molten zinc liquid will cover and fill the top, side, and bottom of the threads, causing changes in thread size and damaging the sealing performance of the thread ports.
Coating anti-corrosion: By spraying anti-corrosion coatings such as epoxy resin paint and polyurethane paint, a protective film is formed, and colors and protection levels can be customized according to needs;
Chrome plating treatment: A layer of chromium is plated on the surface to improve hardness and corrosion resistance, while enhancing aesthetics. It is commonly used in situations where high surface smoothness is required. Through these treatments, the corrosion resistance of carbon steel threaded tees can be significantly improved.
In the production process of ASME B16.11 carbon steel threaded tees, consistency between production standards and pipeline systems is crucial to ensure the safe and stable operation of the entire pipeline system. In the design and construction process of pipeline systems, corresponding standards and specifications will be determined based on specific working environments such as pressure, temperature, medium characteristics, etc. As an important component of pipeline systems, the production standards of pipe fittings must match the standards of the pipeline system. For example, if the pipeline system is designed using the ASME B31.3 standard (Chemical Process Pipeline Standard), the production of ASME B16.11 carbon steel threaded tees should also follow the corresponding requirements to ensure that the pressure rating, temperature range, and other parameters of the fittings are compatible with the pipeline system, avoiding safety hazards caused by inconsistent standards.
Under specific conditions, material selection can also be replaced with equivalent performance materials, but this requires strict principles and procedures to be followed.
1. Incomplete equivalence of standards: Strictly speaking, no material under two different standard systems is 100% identical. They may have slight differences in additional requirements such as chemical composition range, heat treatment requirements, or impact testing. In critical applications, procurement and acceptance must be carried out according to the standards specified by the project.
2. The working environment is crucial: when selecting materials, one cannot only look at the grade, but must consider their application conditions (temperature, pressure, medium, etc.). ASTM A105 is designed for high-pressure and high-temperature pipeline systems, and ordinary 20 # carbon steel may not be able to meet the same harsh conditions.
3. Heat treatment status: A105 forgings are usually subjected to normalizing or normalizing+tempering heat treatment to achieve the mechanical properties required by the standard. This is also one of the important differences between it and ordinary steel.
In terms of equivalent international standard materials, ASTM A105 carbon steel is equivalent to materials in multiple international standards.

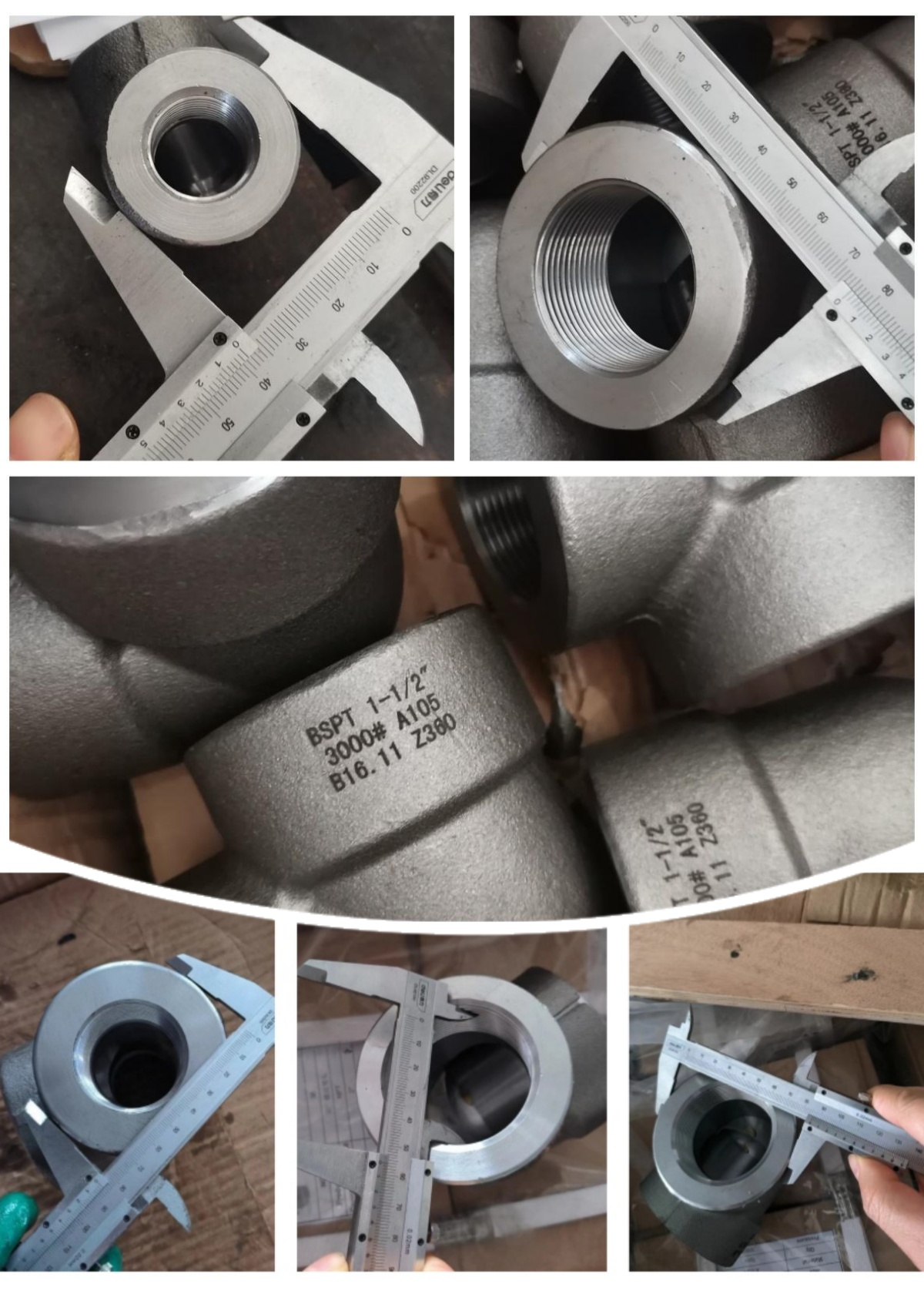

Dimensional accuracy: Tested using measuring tools such as calipers and micrometers to ensure compliance with standard tolerance ranges.
Thread quality: Use a thread gauge for inspection to check whether the parameters such as thread profile, pitch, and pitch diameter of the thread are qualified.
Appearance quality: By visual inspection, observe whether there are cracks, dents, pores and other defects on the surface of the pipe fittings to ensure a smooth appearance without obvious defects.
Pressure test: Water pressure test is usually used to fill the pipe fittings with water and apply a certain pressure for a period of time to observe whether there is any leakage, in order to test the strength and sealing of the pipe fittings.
Sealing test: Air pressure test or air tightness test can be used to further verify the sealing performance of the pipe fittings, ensuring that there will be no fluid leakage during actual use.
Packaging is crucial for the storage and transportation of ASME B16.11 carbon steel threaded tees, as good packaging can effectively protect the fittings from damage and corrosion.
The size of threaded tees is usually between 1/8 inch and 4 inches, with a relatively small overall volume, so they are usually packaged in cardboard boxes and wooden crates.
Before packaging, it is necessary to perform rust prevention treatment on the surface of the carbon steel threaded tee, such as applying rust proof oil, wrapping rust proof paper, etc., to prevent the pipe fittings from rusting and corroding during storage and transportation.
For threaded parts, thread protection sleeves are usually used to protect them from damage caused by collisions during transportation.
During the packaging process, it is also necessary to arrange the packaging quantity reasonably according to the size and weight of the pipe fittings, ensure that the packaging is firm, and prevent the pipe fittings from shaking or colliding during transportation.
Carbon steel threaded tees play an important role in many industries, and their applications in various industries are presented in the following points:
Petrochemical industry: commonly used in pipeline systems for transporting fluids such as oil, natural gas, and chemical raw materials, to achieve fluid diversion and diversion. With high strength and corrosion resistance, it can adapt to working environments with high temperature, high pressure, and strong corrosion.
Power industry: applied to steam pipeline systems and water treatment pipeline systems in thermal power plants, used to connect pipelines of different diameters to ensure the normal transportation of steam and water. Good sealing and reliability ensure stable operation of the power system.
In the field of municipal engineering, it is applicable to urban water supply, drainage, and gas pipeline systems, providing guarantees for the construction and operation of urban infrastructure. The convenient installation feature helps to improve construction efficiency and shorten the construction period.
In the field of science and technology, it plays a role in high-purity fluid transmission systems for laboratory gas transportation and semiconductor manufacturing. Its precise processing technology and stable material properties can meet the strict requirements for fluid control in high-precision experiments and production processes.
In the pharmaceutical and food industry, ASME B16.11 carbon steel threaded tees that meet hygiene standards can be used for drug delivery pipelines in pharmaceutical factories and beverage fluid delivery systems in food processing plants. Their non-toxic, pollution-free, and easy to clean characteristics strictly ensure the safety and hygiene of the pharmaceutical and food production process.
Other industries: It also has important applications in metallurgy, mining, machinery manufacturing and other industries, providing strong support for the production and development of various industries.
Easy installation: Threaded connections do not require complex welding, and can be directly screwed to complete the connection between pipe fittings and pipelines, greatly reducing construction time and labor costs; At the same time, the pipe fittings are detachable, making it convenient for later maintenance and replacement, reducing downtime and maintenance costs.
Good sealing performance: Using standard threads such as NPT, combined with sealing materials such as raw tape and sealant, can effectively prevent fluid leakage, ensure stable operation of pipeline systems, reduce energy loss and environmental pollution risks.
High strength and durability: Made of high-quality carbon steel such as ASTM A105, forged and heat treated to endow the fittings with high strength and toughness, capable of withstanding high pressure and heavy loads, and can still be used stably for a long time under harsh working conditions, extending the equipment replacement cycle.
High cost-effectiveness: Compared to stainless steel fittings, carbon steel has lower raw material costs and simpler manufacturing processes, making product prices more affordable. While meeting usage needs, it effectively reduces overall project investment.
