ASME B16.5 is a standard developed by the American Society of Mechanical Engineers for pipe flanges and flange connections. This standard provides detailed specifications for flanges of various sizes, pressure levels, materials, and surface types to meet the needs of various industrial applications. ASME B16.5 Class 300 flange, as an important type, is widely used in industries such as petroleum, chemical, natural gas, power, pharmaceuticals, and food.
Types & Material
ASME B16.5 Class 300 flanges have a variety of types and can be classified according to the connection method:welding neck flange,slip on flange,socket welding flange,threaded flange,lap joint flange,blind flange。
According to material:carbon steel flange,alloy steel flange,stainless steel flange,duplex stainless steel flange etc.
Sealing Face | RF, FF, FTJ |
Size Range | 1/2" - 48"/ DN15 - DN1200 |
Pressure Rating | Class 150, 300, 600, 900, 1500, 2500lb |
Standard | ASME B16.5, ASME B16.47 Series A/B |
Carbon Steel | ASTM A105 / A105N |
Low Temp Carbon Steel | ASTM A350 LF2/LF3 |
Pipeline Steel | ASTM A694 F42 / 46 / 56 / 60 / 65 |
Alloy Steel | ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 |
Stainless Steel | ASTM A182 F304/304L/304H, 316/316L, 310S, 317,347,904L |
Duplex Stainless Steel | ASTM A182 F51, F53, F44 |
Chemical Composition
Carbon steel
CHEMICAL | LIMITS | C | Mn | P | S | Si | Cu | Ni | Cr | Mo | V |
ASTM A105 | MIN | 0.60 | 0.10 | ||||||||
MAX | 0.35 | 1.05 | 0.035 | 0.040 | 0.35 | 0.40 | 0.40 | 0.30 | 0.12 | 0.08 |
Stainless Steel
CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo | N |
ASTM A182 F304 | MIN | 8.0 | 18.0 | |||||||
MAX | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 11.0 | 20.0 | 0.10 | ||
ASTM A182 F316 | MIN | 10.0 | 16.0 | 2.00 | ||||||
MAX | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 14.0 | 18.0 | 3.00 | 0.01 |
CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo |
ASTM A182 F5 | MIN | 0.30 | 4.00 | 0.44 | |||||
MAX | 0.15 | 0.60 | 0.030 | 0.030 | 0.50 | 0.50 | 6.00 | 0.65 | |
ASTM A182 F9 | MIN | 0.30 | 0.50 | 8.00 | 0.90 | ||||
MAX | 0.15 | 0.60 | 0.030 | 0.030 | 1.00 | 10.00 | 1.10 | ||
ASTM A182 F11 CL1 | MIN | 0.05 | 0.30 | 0.50 | 1.00 | 0.44 | |||
MAX | 0.15 | 0.60 | 0.03 | 0.03 | 1.00 | 1.50 | 0.65 |
CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo | N |
ASTM A182 F51 | MIN | 4.50 | 21.00 | 2.50 | 0.08 | |||||
MAX | 0.03 | 2.00 | 0.030 | 0.020 | 1.00 | 6.50 | 23.00 | 3.50 | 0.20 |
Mechanical Properties
Carbon steel
MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | R/A % | HARDNESS |
ASTM A105 | 485 min | 250 min | 22 min | 30 min | 197 max |
Stainless Steel
MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | R/A % |
ASTM A182 F304 | 515 min | 205 min | 30 min | 50 min |
ASTM A182 F316 | 515 min | 205 min | 30 min | 50 min |
Alloy Steel
MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | R/A % | HARDNESS |
ASTM A182 F5 | 485 min | 275 min | 20 min | 35 min | 143-217 |
ASTM A182 F9 | 585 min | 380 min | 20 min | 40 min | 179-217 |
ASTM A182 F11 CL1 | 415 min | 205 min | 20 min | 45 min | 121-174 |
Duplex Stainless Steel
MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | R/A % |
ASTM A182 F51 | 620 min | 450 min | 25 min | 45 min |

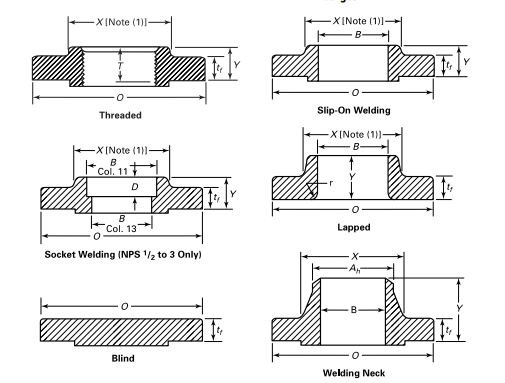

Dimension of ASME B16.5 CLASS 300 Flange
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |||
Nominal Pipe Size NPS | Outside Diamter of Flange, O | Minimum Thickness of Flange, tf (2)–(4) | Minimum Thickness Lap Joint, tf | Diameter of Hub, X | Hub Diameter Beginning of Chamfer Welding Neck, Ah (4) | Length Through Hub | Minimum Thread Length Threaded, T (5) | Bore | Corner Radius of Bore of Lapped Flange and Pipe, r | Minimum Counter- bore Threaded Flange, Q | Depth of Socket, D | |||||||
Threaded/ Slip-On/ Socket Welding, Y | Lapped, Y | Welding Neck, Y | Minimum Slip-On/ Socket Welding, B | Minimum Lapped, B | Welding Neck/ Socket Welding, B (6) | |||||||||||||
1/2 | 95 | 12.7 | 14.2 | 38 | 21.3 | 21 | 22 | 51 | 16 | 22.4 | 22.9 | 15.7 | 3 | 23.6 | 10 | |||
3/4 | 117 | 14.2 | 15.7 | 48 | 26.7 | 24 | 25 | 56 | 16 | 27.7 | 28.2 | 20.8 | 3 | 29.0 | 11 | |||
1 | 124 | 15.7 | 17.5 | 54 | 33.5 | 25 | 27 | 60 | 18 | 34.5 | 35.1 | 26.7 | 3 | 35.8 | 13 | |||
1 1/4 | 133 | 17.5 | 19.0 | 64 | 42.2 | 25 | 27 | 64 | 21 | 43.2 | 43.7 | 35.1 | 5 | 44.4 | 14 | |||
1 1/2 | 155 | 19.0 | 20.6 | 70 | 48.3 | 29 | 30 | 67 | 22 | 49.5 | 50.0 | 40.9 | 6 | 50.3 | 16 |
Table 11 Dimensions of Class 300 Flanges (Cont’d) | ||||||||||||||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |
Nominal Pipe Size NPS | Outside Diamter of Flange, O | Minimum Thickness of Flange, tf (2)–(4) | Minimum Thickness Lap Joint, tf | Diameter of Hub, X | Hub Diameter Beginning of Chamfer Welding Neck, Ah (4) | Length Through Hub | Minimum Thread Length Threaded, T (5) | Bore | Corner Radius of Bore of Lapped Flange and Pipe, r | Minimum Counter- bore Threaded Flange, Q | Depth of Socket, D | |||||
Threaded/ Slip-On/ Socket Welding, Y | Lapped, Y | Welding Neck, Y | Minimum Slip-On/ Socket Welding, B | Minimum Lapped, B | Welding Neck/ Socket Welding, B (6) | |||||||||||
2 | 165 | 20.6 | 22.4 | 84 | 60.5 | 32 | 33 | 68 | 28 | 62.0 | 62.5 | 52.6 | 8 | 63.5 | 17 | |
21∕2 | 190 | 23.9 | 25.4 | 100 | 73.2 | 37 | 38 | 75 | 32 | 74.7 | 75.4 | 62.7 | 8 | 76.2 | 19 | |
3 | 210 | 26.9 | 28.4 | 117 | 88.9 | 41 | 43 | 78 | 32 | 90.7 | 91.4 | 78.0 | 10 | 92.2 | 21 | |
31∕2 | 229 | 28.4 | 30.2 | 133 | 101.6 | 43 | 44 | 80 | 37 | 103.4 | 104.1 | 90.2 | 10 | 104.9 | … | |
4 | 254 | 30.2 | 31.8 | 146 | 114.3 | 46 | 48 | 84 | 37 | 116.1 | 116.8 | 102.4 | 11 | 117.6 | … | |
5 | 279 | 33.3 | 35.1 | 178 | 141.2 | 49 | 51 | 97 | 43 | 143.8 | 144.5 | 128.3 | 11 | 144.5 | … | |
6 | 318 | 35.1 | 36.6 | 206 | 168.4 | 51 | 52 | 97 | 46 | 170.7 | 171.4 | 154.2 | 13 | 171.4 | … | |
8 | 381 | 39.6 | 41.1 | 260 | 219.2 | 60 | 62 | 110 | 51 | 221.5 | 222.2 | 202.7 | 13 | 222.2 | … | |
10 | 444 | 46.0 | 47.8 | 321 | 273.0 | 65 | 95 | 116 | 56 | 276.4 | 277.4 | 254.5 | 13 | 276.4 | … | |
![]() | 521 | 49.3 | 50.8 | 375 | 323.8 | 72 | 102 | 129 | 60 | 327.2 | 328.2 | 304.8 | 13 | 328.7 | … | |
14 | 584 | 52.3 | 53.8 | 425 | 355.6 | 75 | 111 | 141 | 64 | 359.2 | 360.2 | (7) | 13 | 360.4 | … | |
16 | 648 | 55.6 | 57.2 | 483 | 406.4 | 81 | 121 | 145 | 68 | 410.5 | 411.2 | (7) | 13 | 411.2 | … | |
18 | 711 | 58.7 | 60.5 | 533 | 457.2 | 87 | 130 | 157 | 70 | 461.8 | 462.3 | (7) | 13 | 462.0 | … | |
20 | 775 | 62.0 | 63.5 | 587 | 508.0 | 94 | 140 | 161 | 73 | 513.1 | 514.4 | (7) | 13 | 512.8 | … | |
22 | 838 | 65.0 | 66.5 | 641 | 558.8 | 100 | 145 | 164 | … | 564.4 | 565.2 | (7) | 13 | … | … | |
24 | 914 | 68.3 | 68.8 | 702 | 609.6 | 105 | 152 | 167 | 83 | 616.0 | 616.0 | (7) | 13 | 614.4 | … |
GENERAL NOTES:
(a) Dimensions are in millimeters.
(b) For tolerances, see section 7.
(c) For facings, see para. 6.4.
(d) For flange bolt holes, see para. 6.5 and Table 10.
(e) For spot facing, see para. 6.6.
(f) For reducing threaded and slip-on flanges, see Table 6.
(g) Blind flanges may be made with or without hubs at the manufacturer’s option.
(h) For reducing welding neck flanges, see para. 6.8.
NOTES:
(1) This dimension is for the large end of the hub, which maybe straight or tapered. Tapershall not exceed 7 deg on threaded, slip-on, socket-welding, and lapped flanges. This dimension is defined
as the diameter at the intersection between the hub taper and back face of the flange.
(2) These flanges maybe supplied with a flat face. The flat face maybe either the full tf dimension thickness plus 1.5 mm or the tf dimension thickness without the raised face height. See para. 6.3.2
for additional restrictions.
(3) The flange dimensions illustrated are for regularly furnished 1.5-mm raised face (except lapped); for requirements of other facings, see Figure 6.
ASME B16.5 Class 300 flange is a common pipe fitting with the following characteristics:
1. Moderate pressure rating: Class 300 flanges are suitable for medium pressure rating pipeline systems and typically can withstand working pressures of 150 to 300 psi (pounds per square inch).
2. Diversified materials and sealing surfaces: Class 300 flanges can be made of various materials, such as carbon steel, stainless steel, etc., to meet the needs of different media and environments. In addition, the flange also has various surface types, such as raised face (RF), concave face (FM), tenon face (M), and ring connection face (RJ), to meet various connection requirements.
3. Excellent sealing performance: Class 300 flanges focus on improving sealing performance during the design and manufacturing process. By adopting a reasonable sealing structure and high-quality sealing materials, it is ensured that the flange connection has good sealing performance and prevents medium leakage.
4. Easy to install and maintain: The Class 300 flange adopts standard dimensions and connection methods, making installation and maintenance simple and convenient. Meanwhile, the flange also has good interchangeability, reducing maintenance and replacement costs.
ASME B16.5 Class 300 flanges are widely used in industries such as petroleum, chemical, natural gas, electricity, pharmaceuticals, and food. In these fields, Class 300 flanges play an important connecting role, ensuring the safe and stable operation of pipeline systems.
