ASME B16.9 Reducer

The ASME B16.9 standard, as a globally recognized authoritative specification for pipe fittings manufacturing, provides strict technical basis for key pipe fittings such as reducers. ASME B16.9 reducer that comply with this standard, with their excellent adaptability, reliability, and compatibility, have become important fittings for variable diameter connections in pipeline systems in fields such as petroleum, chemical, and energy. This article will comprehensively analyze the core advantages of ASME B16.9 reducer from standard interpretation, product parameters, category classification, manufacturing processes to application scenarios, to assist enterprises in accurately selecting suitable pipe fittings.

What is ASME B16.9 Standard?

ASME B16.9 is a standard developed by the American Society of Mechanical Engineers (ASME) for forged steel butt welded fittings manufactured in factories. Since its publication, it has undergone multiple revisions and improvements and has become the core basis for the design, manufacturing, and inspection of forged steel butt welded fittings worldwide. This standard is not limited to a single type of pipe fitting, but covers various types of butt welded pipe fittings such as reducers, elbows, tees, and pipe caps.

ASME B16.9 provides detailed regulations on the materials, dimensional tolerances, wall thickness requirements, welding end forms, non-destructive testing methods, etc. of pipe fittings. In terms of size, key parameters such as outer diameter, inner diameter, length, and wall thickness of the pipe fittings have been standardized through precise charts and data, ensuring the accuracy of the connection between the pipe fittings and the pipeline.

Specification of ASME B16.9 Reducer

ASME B16.9 reducer commonly known as butt welded reducer , have a wide range of specifications and can meet diverse needs from low-pressure civilian pipelines to high-pressure industrial pipelines.

Size	3/4"- 60"/ DN20 - 1500
Pressure(TH)	SCH 10 - SCH 160, XXS
ASME Standard	ANSI / ASME B16.9 / MSS SP 43
JIS Standard	JIS B2311/2312/2313
DIN Standard	DIN2605/2615/2616/2617
EN Standard	EN10253
Carbon Steel	Q235, 20#, 35#, 45#, 20G,ASTM A234 WPB/WPC Q345B, 16Mn, ASTM A420 WPL6 ASTM A860 WPHY 42 / 46 / 56 / 60 / 65
Alloy Steel	ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92, 15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5
Stainless Steel	ASTM A403 WP304/304L/304H, 316/316L, 310S, 317,347,904L
Duplex Stainless Steel	ASTM A815 S32205, S31803, 32750, 32760

From the perspective of nominal diameter (NPS), ASME B16.9 reducer range from 3/4 inch (DN20) to 60 inch (DN1500). Different pressure levels correspond to different wall thickness designs. In the ASME B16.9 standard, the wall thickness level is represented by the Schedule (abbreviated as Sch.) series, which is closely related to the nominal pressure level. The specific correspondence is as follows:

Low pressure level (Class 150 to Class 300): corresponding to thin-walled levels such as Sch 5S, Sch 10, Sch 40, etc., suitable for conveying atmospheric or low-pressure fluids (such as tap water, low-pressure steam). These grades of reducers have thinner wall thicknesses, which can reduce material costs and installation weight while meeting low-pressure conditions.

Medium and high pressure levels (Class 600 to Class 1500): Common wall thickness levels are SCH 80 and SCH 160, which can withstand high pressures and can be used for high-pressure fluid transportation in oil and gas extraction. Its thicker pipe wall can effectively resist high-pressure impact and medium corrosion.

High pressure rating (Class 2500): Usually adopts XXS and other extra thick wall grades, mainly suitable for pipeline systems under extreme working conditions such as high-pressure boilers and hydrogenation reactors. This ultra thick wall design ensures that the reducer maintains excellent structural strength and sealing performance in high temperature, high pressure, and highly corrosive environments.

This collaborative design of multiple pressure levels and wall thickness levels not only ensures the structural strength and sealing performance of the reducer under different pressure environments, but also allows for flexible selection according to specific working conditions, achieving a balance between cost and performance.

Dimension of Butt Weld Reducer

As a core product in ASME B16.9 standard, the accuracy of size parameters of butt weld reducer directly determines the sealing and stability of pipeline connections. According to standard requirements, the size parameters of butt weld reducer mainly include nominal diameters at both ends, center length, wall thickness, and welding end groove size. Each parameter has strict numerical ranges and tolerance requirements.

Nominal Size				Outside Diameter at Bevel		Center to End
DN1	DN2	NPS1	NPS2	OD1	OD2	H
20	10-15	3/4	3/8-1/2	26.7	17.1-21.3	38
25	15-20	1	1/2-3/4	33.4	21.3-26.7	51
32	15-25	1 1/4	1/2-1	42.2	21.3-33.4	51
40	15-32	1 1/2	1/2-1 1/4	48.3	21.3-42.2	64
50	20-40	2	3/4-1 1/2	60.3	26.7-48.3	76
65	25-50	2 1/2	1-2	73.0	33.4-60.3	89
80	32-65	3	1 1/4-2 1/2	88.9	42.2-73.0	89
90	32-80	3 1/2	1 1/4-3	101.6	42.2-88.9	102
100	40-90	4	1 1/2-3 1/2	114.3	48.3-101.6	102
125	50-100	5	2-4	141.3	60.3-114.3	127
150	65-125	6	2 1/2-5	168.3	73.0-141.3	140
200	90-150	8	3 1/2-6	219.1	101.6-168.3	152
250	100-200	10	4-8	273.0	114.3-219.1	178
300	125-250	12	5-10	323.8	141.3-273.0	203
350	150-300	14	6-12	355.6	168.3-323.8	330
400	150-350	16	6-14	406.4	168.3-355.6	356
450	200-400	18	8-16	457.0	219.1-406.4	381
500	250-450	20	10-18	508.0	273.0-457.0	508
550	300-500	22	12-20	559.0	323.8-508.0	508
600	300-550	24	12-22	610.0	323.8-559.0	508
650	350-600	26	14-24	660	355.6-610.0	610
700	350-650	28	14-26	711	355.6-660.0	610
750	350-700	30	14-28	762	355.6-711.0	610
800	500-750	32	20-30	813	508.0-762.0	610
850	550-800	34	22-32	864	559.0-813.0	610
900	550-850	36	22-34	914	559.0-864.0	610
950	600-900	38	24-36	965	610.0-914.0	610
1000	700-950	40	28-38	1016	711.0-965.0	610
1050	700-1000	42	28-40	1067	711.0-1016.0	610
1100	800-1050	44	32-42	1118	813.0-1067.0	610
1150	850-1100	46	34-44	1168	864.0-1118.0	711
1200	900-1150	48	36-46	1219	914.0-1168.0	711
1300	1000-1200	52	40-48	1321	1016.0-1219.0	711
1400	1100-1300	56	40-52	1422	1016.0-1321.0	711
1500	1100-1400	60	44-56	1524	1118.0-1422.0	711

Nominal Size: The core function of butt weld reducer is to connect pipes of different diameters, so their two end nominal diameters need to match the corresponding pipe nominal diameters. For example, 4" × 2 " reducer is designed to fit a 4 inch (DN100) pipe at one end and a 2 inch (DN50) pipe at the other end. The diameter difference between the two ends must comply with the standard" diameter gradient "to avoid vortex or pressure loss caused by excessive diameter difference at the variable diameter point.

Center to End (H): The center length refers to the distance between the welded ends of the reducer, which is a key parameter to ensure the installation accuracy of the pipeline system. According to ASME B16.9 standard, different specifications of reducers correspond to fixed center length ranges. Taking the 2 "× 1" reducer as an example, the standard value of its center length is 76mm, and the allowable deviation range is ± 2mm; while the standard value of the center length of the 10 "× 6" reducer is 178mm, and the deviation range is ± 2mm. Controlling the length from end face to end face can avoid pipeline installation misalignment caused by pipe length deviation and ensure the straightness of the entire pipeline.

Wall Thickness (t): The wall thickness directly affects the pressure bearing capacity and service life of the reducer. According to ASME B16.9 standard, the minimum wall thickness of butt welded reducers must not be less than the wall thickness of the corresponding pipeline and must meet the requirements of "pressure temperature rating". In addition, the standard also requires that the wall thickness uniformity error of the reducer should not exceed 12.5% to avoid stress concentration caused by local thin wall thickness.

Tolerance of Butt Weld Fittings

To ensure consistency and interchangeability of butt weld fittings (including reducers) in mass production, ASME B16.9 standard strictly specifies the tolerance range for key dimensions, including outer diameter tolerance, inner diameter tolerance, wall thickness tolerance, etc.

Nominal  Size		All Fittings		45°&90° Elbows & Tees, Crosses	3D Radius Elbows	Returns			Caps	Reducers & Lap Joint Stub Ends	Lap Joint  Stub Ends
DN	NPS	OD 3) 4)	ID 3)	A   B   C   M	A   B	O	K	U	E,  E1	H   F	G	R	t
15-65	1/2 -21/2	+1.6 -0.8	± 0.8	± 2	± 3	± 6	± 6	±  1	± 3	± 2	0   -1	0   -1	+1.6 0
80-90	3-31/2	± 1.6	± 1.6	± 2	± 3	± 6	± 6	±  1	± 3	± 2	0   -1	0   -1	+1.6 0
100	4	± 1.6	± 1.6	± 2	± 3	± 6	± 6	±  1	± 3	± 2	0   -1	0   -2	+1.6 0
125-200	5-8	+2.4 -1.6	± 1.6	± 2	± 3	± 6	± 6	±  1	± 6	± 2	0   -1	0   -2	+1.6 0
250-450	10-18	+4.0 -3.2	± 3.2	± 2	± 3	± 10	± 6	± 2	± 6	± 2	0   -2	0   -2	+3.2 0
500-600	20-24	+6.4 -4.8	± 4.8	± 2	± 3	± 10	± 6	± 2	± 6	± 2	0   -2	0   -2	+3.2 0
650-750	26-30	+6.4 -4.8	± 4.8	± 3	± 6	---	---	---	± 10	± 5	---	---	---
800-1200	32-48	+6.4 -4.8	± 4.8	± 5	± 6	---	---	---	± 10	± 5	---	---	---
1300-1500	52-60	+6.4 -4.8	± 4.8	± 5	---	---	---	---	---	---	---	---	---
1600-1700	64-68	+6.4 -4.8	± 4.8	± 5	---	---	---	---	---	---	---	---	---
1800-2000	72-80	+6.4 -4.8	± 4.8	± 5	---	---	---	---	---	---	---	---	---

The ASME B16.9 standard also specifies requirements for the surface quality and pressure testing of pipe fittings. In terms of surface quality, the inner and outer surfaces of the pipe fittings should be smooth and free from defects such as cracks, folds, scratches, etc; Pressure testing requires pipe fittings to undergo hydrostatic or pneumatic testing at a specified pressure to verify their sealing and pressure resistance performance, ensuring that there will be no leakage or other issues during use.

Types of ASME B16.9 Reducer

Material Types

The material selection for ASME B16.9 reducer is extremely diverse, mainly divided into four categories: carbon steel, alloy steel, stainless steel, and special alloys, each with clear standard numbers and applicable scenarios:

Carbon steel material: represented by ASTM A234 WPB and ASTM A420 WPL6, it has the characteristics of low cost, high strength, and easy welding. It is suitable for pipeline systems that transport neutral or weakly corrosive media such as water, steam, and oil, and is widely used in the fields of petrochemicals, electricity, municipal engineering, etc.

Alloy steel material: Common materials include ASTM A234 WP11, WP22, WP91, etc. By adding alloy elements such as chromium, molybdenum, and vanadium, the high temperature and high pressure resistance of the pipe fittings is improved. It can be used in high temperature and high pressure conditions such as high temperature steam pipelines, hydrogenation units, and cracking furnace pipelines.

Stainless steel material: with ASTM A403 WP304, WP316, WP321 as the core, it has excellent corrosion resistance and oxidation resistance, and is suitable for pipeline systems that transport corrosive media such as acid, alkali, salt, etc., such as chemical pharmaceuticals, food processing, seawater desalination and other fields. Among them, WP316 material has stronger resistance to chloride ion corrosion due to the addition of molybdenum element, making it an important accessory for anti-corrosion pipelines in marine engineering and chemical industry.

Special alloy materials: For extreme working conditions such as high temperature, strong corrosion, and high pressure, ASME B16.9 reducers also offer special materials such as Hastelloy C276, Monel 400, Inconel 625, etc. These materials have super strong corrosion resistance and high temperature stability, and are mainly used in the nuclear industry, aerospace, high-end chemical industry, and other fields.

Product Category

According to different structural forms, ASME B16.9 reducers are mainly divided into two categories: concentric reducers and eccentric reducers

Concentric reducer: The two end centers are on the same axis, with a "conical" structure in appearance. The fluid has low resistance when passing through, making it suitable for pipeline systems that do not require gas-liquid separation and are sensitive to fluid resistance, such as liquid transport pipelines, steam pipelines, etc.

Eccentric reducer: The centers of the two ends are not on the same axis, and one side is designed with a "flat mouth" (i.e. the end faces of the large and small ends are in the same plane). This structure can avoid the accumulation of gas or liquid in the pipeline, and is suitable for pipeline systems that are prone to gas-liquid mixing and liquid accumulation, such as pump inlet pipelines, compressor inlet and outlet pipelines, condensate pipelines, etc. In addition, eccentric reducers can also be used for "leveling" the interface between pipelines and equipment, ensuring that the flange surfaces of the pipelines and equipment are fully fitted during installation.

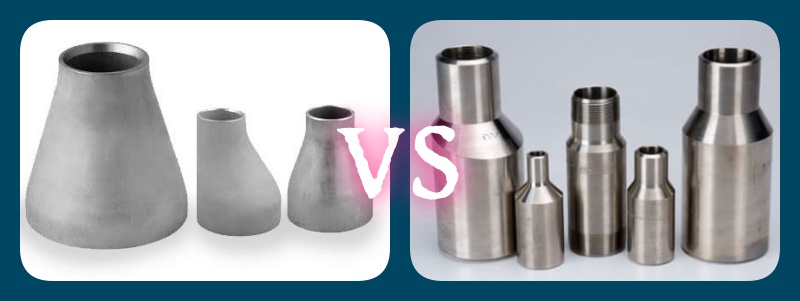

Difference Between Butt Weld Reducer and Swage Nipple

In pipeline system design, butt weld reducer and Swage Nipples are often confused, but they have significant differences in structure, performance, and applicable scenarios, and need to be selected according to actual needs.

Structural form: According to ASME B16.9 standard, the butt weld reducer has butt welding bevel at both ends and a conical or eccentric structure design in the middle. Its length strictly meets the center length requirements specified in the standard. This design ensures the stability and sealing of welding, making it suitable for pipeline systems that require high connection strength.

The variable diameter short section complies with MSS SP-95 standard and has more flexibility in end connection forms, covering three types: plain, bevel and thread, and supporting the combination of two connection forms. Whether it is plain end connections that require quick installation, bevel welding that emphasizes sealing, or threaded connections that are easy to disassemble, reducing short joints can be flexibly adapted according to different engineering scenarios and pipeline requirements, greatly improving their applicability in industrial pipeline systems.

Applicable specifications: Butt weld reducers are mainly available in large sizes (3/4inch-60inch), supporting large-diameter diameter changes; The reducing short section is mainly small in size (1/4inch -12inches) and is only suitable for small diameter reduction.

Applicable scenarios: ASME B16.9 reducers are suitable for high-pressure industrial pipeline systems such as petroleum, chemical, and power industries; The reducing short section is suitable for civil pipelines and low-pressure equipment pipelines, such as water and gas inlet pipes.

Service life: The welded joints of butt welded reducers have strong fatigue resistance and a long service life, up to 10-20 years; The threaded connection of the reducing short section is prone to leakage due to vibration and corrosion, and its service life is relatively short, usually 3-5 years.

In the design of industrial pipeline systems, if reducing short joints are mistakenly used in high-pressure industrial scenarios, it may lead to joint leakage due to insufficient pressure bearing capacity, and even cause safety accidents; On the contrary, if butt welded reducers are used for low-pressure civilian pipelines, it will increase costs and installation difficulties. Therefore, clarifying the differences between the two is the key to ensuring the safety and economy of pipeline systems.

Application

ASME B16.9 butt welded pipe fittings (including reducers) have deeply penetrated into multiple core industrial fields such as petrochemicals, energy and power, oil and gas transportation, marine engineering, chemical pharmaceuticals, and food processing, relying on their standardization and high reliability advantages, becoming the "cornerstone" to ensure the stable operation of pipeline systems in these industries.

Petrochemical industry

The pipeline system in the petrochemical industry needs to transport media such as crude oil, gasoline, diesel, and chemical raw materials (such as ethylene and propylene), and often faces complex working conditions such as high temperature (such as cracking furnace outlet temperature above 800 ℃), high pressure (such as hydrogenation reactor pressure above 15MPa), and strong corrosion (such as H ₂ S and Cl ⁻ in acidic oil and gas). ASME B16.9 butt welded reducers have performed outstandingly in this industry.

Energy and power industry

In the energy and power fields such as thermal power, nuclear power, and new energy (such as photovoltaic and wind power supporting energy storage), pipeline systems undertake the task of transporting energy carriers such as steam, hot water, and thermal oil, and have extremely high requirements for the high temperature and high pressure resistance of pipe fittings.

Oil and gas transportation industry

Long distance oil and gas pipelines (such as the West East Gas Pipeline and the China Russia East Gas Pipeline) need to cross extreme geographical environments such as deserts, plateaus, and oceans, facing challenges such as low temperatures (such as winter temperatures in Northeast China as low as -40 ℃), soil corrosion, and external impacts.

Ocean engineering industry

In the marine environment, factors such as high salt spray, high humidity, and seawater immersion can cause severe electrochemical corrosion of pipe fittings, therefore the corrosion resistance requirements for pipe fittings are much higher than those in terrestrial scenarios. ASME B16.9 butt welded reducers are perfectly adapted to the requirements of marine engineering through material optimization and surface treatment.

Chemical, pharmaceutical, and food processing industries

The chemical and pharmaceutical industry requires the transportation of high-precision media such as pharmaceutical raw materials and solvents, while the food processing industry requires the transportation of food grade media such as fruit juice, dairy products, and edible oil. Both industries have strict requirements for the "hygiene" and "non pollution" of pipe fittings.

Advantages of ASME B16.9 Butt Weld Fittings

Security Guarantee

The ASME B16.9 standard has strict requirements for material, wall thickness, and non-destructive testing to ensure that reducers do not experience safety accidents such as leakage or rupture under extreme working conditions such as high pressure, high temperature, and strong corrosion. For example, in petrochemical plants, reducing pipes that meet standards can effectively reduce the risk of medium leakage caused by pipe failure, ensuring the safety of production personnel and the safety of the factory environment.

Cost Optimization

Short Term Cost: Standardized production reduces the interchangeability cost of products from different manufacturers, and enterprises do not need to pay additional fees for adapting specific brand fittings;

Long Term Cost:Excellent material properties and manufacturing processes extend the service life of welded pipe fittings (usually up to 10-20 years), reducing the frequency of maintenance and replacement of pipeline systems; At the same time, the size design reduces fluid resistance, reduces energy consumption of equipment such as pumps and compressors, and indirectly saves operating costs for enterprises.

Compatibility

ASME B16.9 standard is a globally recognized specification for pipe fittings manufacturing, and reducers that comply with this standard can be directly adapted to pipeline systems in Europe, America, Southeast Asia, the Middle East, and other regions. Choosing ASME B16.9 reducer can avoid design modifications and product replacements caused by standard differences, and accelerate the landing of overseas projects.
