ASTM A182 F316/316L Forged Coupling Order

Views: 0     Author: Site Editor     Publish Time: 2025-06-20      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

On May 6, 2025, we received an inquiry from a French customer. This was the second time the French customer placed an order with us. It was the same product with the same specifications and materials as the last order. This was not just a simple repeat order, but also a great recognition of our product quality and service. We immediately made fine adjustments based on the last quotation and combined with the current market fluctuations, and sent a detailed order confirmation letter to the customer in the shortest time. The customer was very satisfied with our response speed and the accuracy of the quotation.


Shanghai Zhucheng Pipe Fittings Manufacturing Co Ltd.is a company specializing in the production and processing of pipes and fittings. The pipes and pipe fittings we produce are mainly used in the fields of chemical industry, petroleum, natural gas, water conservancy, electric power, marine engineering, etc. The products mainly include seamless pipes, welded pipes, butt weld pipe fittings, high-pressure forged pipe fittings and flanges of various sizes. The materials include carbon steel, stainless steel, alloy steel, low-temperature steel, duplex steel, base alloy, etc.


We are fully capable of customizing and producing this type of combined pipe clamp with one end socket and one end thread according to your specific needs. This will undoubtedly provide you with more diversified solutions in engineering design and construction.


If you have specific needs or projects in this regard, please feel free to provide detailed drawings or technical parameters. Our professional team will provide you with the best quality products and services! Contact us


Purchase List


No

Description of Goods

Quantity

Units

1

COUPLING-THD-F 3000 A182-F316 1-1/2''

30

PCS

2

COUPLING-THD-F 3000 A182-F316 1''

30

PCS

3

COUPLING SW/NPT 1-1/2'' Sr 3000 A182 F316L ANSI B16.11

30

PCS

4

COUPLING SW/NPT 1'' Sr 3000 A182 F316L ANSI B16.11

30

PCS

5

COUPLING-THD-F 3000 A182-F316 1/2''

30

PCS

6

COUPLING SW/NPT 1/2'' Sr 3000 A182-F316L ANSI B16.11

30

PCS


Dimensional Inspection of Forged Coupling


1. Socket Bore Diameter:

This is the diameter of the inner hole where the pipe is inserted into the socket. It must be measured accurately to ensure that the pipe can be inserted smoothly and leave the necessary expansion gap. ASME B16.11 has strict regulations on the inner diameter of the socket for different pipe diameters and pressure levels.


2. Socket Depth:

Measure the depth of the pipe inserted into the socket. This depth determines the length of the weld and the stability of the connection.


3. Overall Length of the Coupling:

Measure the overall length of the pipe coupling to ensure that it meets standard or custom requirements.


4. Wall Thickness:

Measure the wall thickness of each part of the pipe coupling, especially the wall thickness of the socket, to ensure that it meets the minimum wall thickness requirements for the design pressure level.


5. Thread Profile and Pitch:

Ensure that it meets the standard (such as ASME B1.20.1 NPT tapered pipe threads).


6. Effective Thread Length:

Measure the effective length of the thread to ensure sufficient engagement depth for sealing and connection strength.

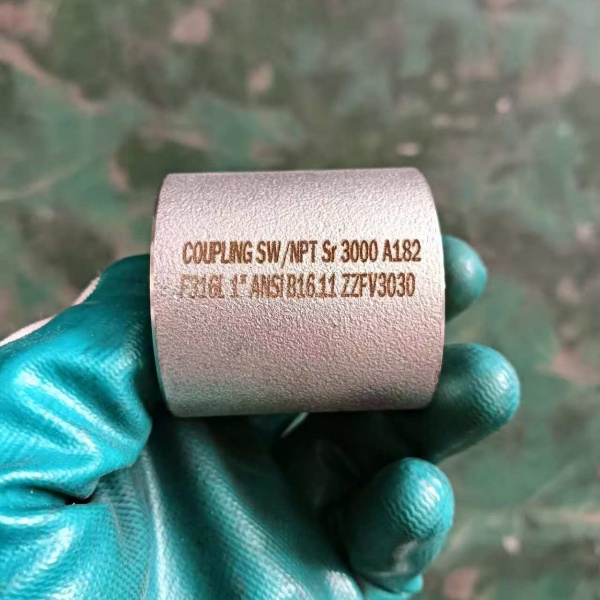

socket weld coupling

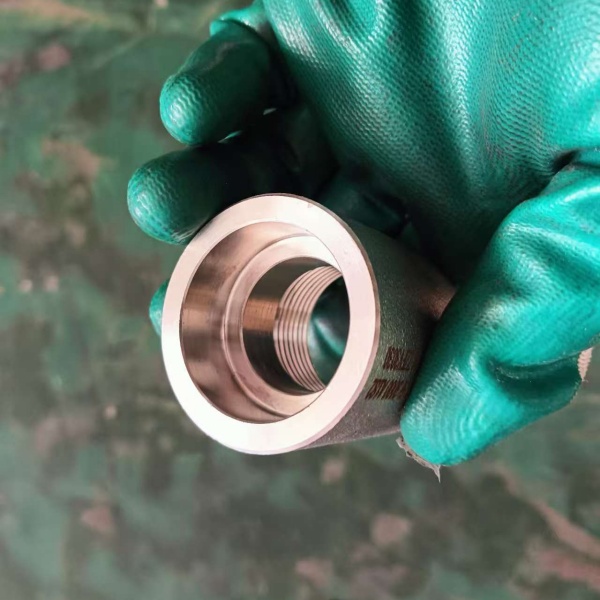

coupling

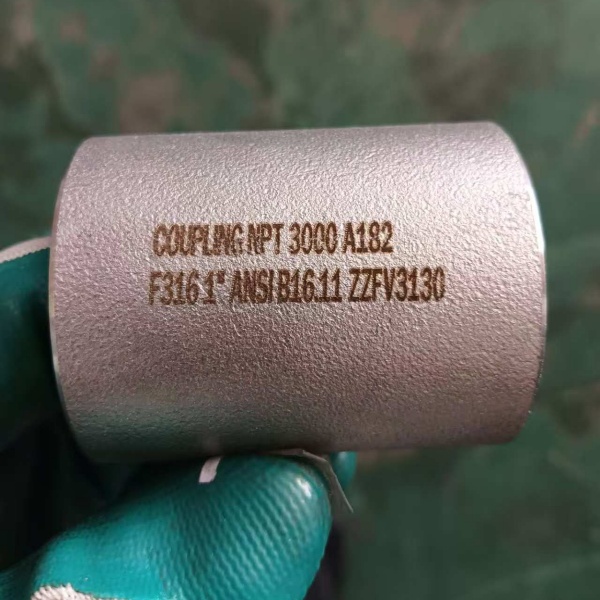

threaded coupling



ASTM A182 F316/316L Forged Fittings Chemical Composition


CHEMICAL

LIMITS

C

Mn

P

S

Si

Ni

Cr

Mo

N

ASTM A182 F316

MIN






10.0

16.0

2.00


MAX

0.08

2.00

0.045

0.030

1.00

14.0

18.0

3.00

0.10

ASTM A182 F316L

MIN






10.00

16.0

2.00


MAX

0.03

2.00

0.045

0.030

1.00

15.00

18.0

3.00

0.10


ASTM A182 F316/316L Forged Fittings Mechanical Property


MATERIAL

ASTM A182 F316

ASTM A182 F316L

T.S (MPA)

515 min

485 min

Y.S (MPA)

205 min

170 min

EL %

30 min

30 min

R/A %

50 min

50 min


Specification of ASME B16.11 Socket Weld Coupling


Type

Coupling

Size Range

1/8" - 4" / DN6 - DN100

Pressure Rating

Class 3000lbs, 6000lbs, 9000lbs

Carbon Steel

ASTM A105 / A105N, A350 LF2/LF3, ASTM A694 F42 / F46 / F56 / F60 / F65

Alloy Steel

ASTM A182 F5 / F9 / F11 / F12 / F22 / F91 / F92

Stainless Steel

ASTM A182 F304/304L/304H, F316/316L, F321, F310S, F317, F347, F904L

Duplex Stainless Steel

ASTM A182 F51, F53, F44

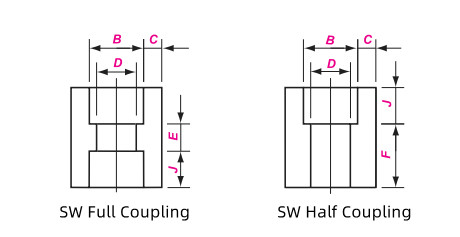

ASME B16.11 Socket Weld Coupling Dimensions


DN

NPS

B

                   D

                                               C

3000

6000

9000

3000

6000

9000

6

1/8

10.9

6.1

3.2

-

3.18

3.18

3.96

3.43

-

-

8

1/4

14.3

8.5

5.6

-

3.78

3.30

4.60

4.01

-

-

10

3/8

17.7

11.8

8.4

-

4.01

3.50

5.03

4.37

-

-

15

1/2

21.9

15.0

11.0

5.6

4.67

4.09

5.97

5.18

9.53

8.18

20

3/4

27.3

20.2

14.8

10.3

4.90

4.27

6.96

6.04

9.78

8.56

25

1

34.0

25.9

19.9

14.4

5.69

4.98

7.92

6.93

11.38

9.96

32

11/4

42.8

34.3

28.7

22.0

6.07

5.28

7.92

6.93

12.14

10.62

40

11/2

48.9

40.1

33.2

27.2

6.35

5.54

8.92

7.80

12.7

11.12

50

2

61.2

51.7

42.1

37.4

6.93

6.04

10.92

9.50

13.84

12.12

65

21/2

73.9

61.2

-

-

8.76

7.62

-

-

-

-

80

3

89.9

76.4

-

-

9.52

8.30

-

-

-

-

100

4

115.5

100.7

-

-

10.69

9.35

-

-

-

-


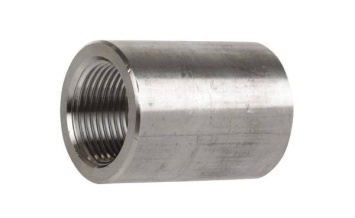

Specification of ASME B16.11 Threaded Coupling


Size Range

1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1-1/2", 2", 2-1/2", 3", 4"

Pressure Rating

Class 3000, 6000

Standard

ASME B16.11, BS3799

Carbon Steel

ASTM A105 / A105N, A350 LF2/LF3, ASTM A694 F42 / F46 / F56 / F60 / F65

Alloy Steel

ASTM A182 F5 / F9 / F11 / F12 / F22 / F91 / F92

Stainless Steel

ASTM A182 F304/304L/304H, F316/316L, F321, F310S, F317, F347, F904L

Duplex Stainless Steel

ASTM A182 F51, F53, F44

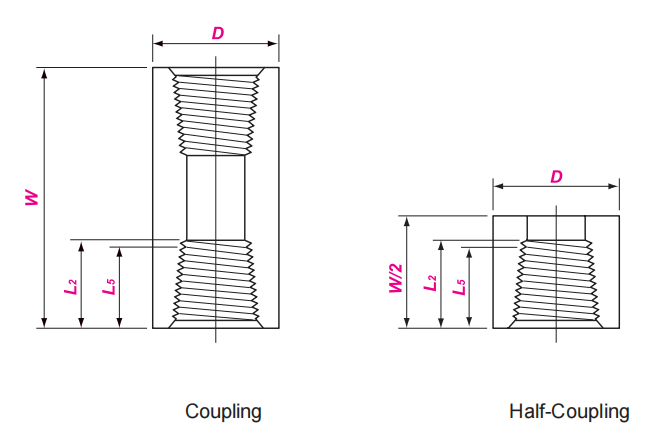

ASME B16.11 Threaded Coupling Dimensions


Nominal Size

End-to-End

Outside Diameter

Length of Thread

DN


NPS


W

D

L 5 min


L 2 min


3000 & 6000

3000

6000

6

1/8

32

16

22

6.4

6.7

8

1/4

35

19

25

8.1

10.2

10

3/8

38

22

32

9.1

10.4

15

1/2

48

28

38

10.9

13.6

20

3/4

51

35

44

12.7

13.9

25

1

60

44

57

14.7

17.3

32

11/4

67

57

64

17.0

18.0

40

11/2

79

64

76

17.8

18.4

50

2

86

76

92

19.0

19.2

65

21/2

92

92

108

23.6

28.9

80

3

108

108

127

25.9

30.5

100

4

121

140

159

27.7

33.0


Key Characteristics and Benefits:


Excellent Corrosion Resistance: Especially resistant to pitting and crevice corrosion in chloride environments due to molybdenum content.


High Temperature Service: Suitable for applications involving elevated temperatures.


Superior Strength and Toughness: Forging process enhances mechanical properties.


Good Weldability: The "L" grade (316L) ensures reduced sensitization and improved weldability.


Durability and Long Service Life: These properties contribute to a longer lifespan in demanding industrial environments.


Leak-Proof Connections: Designed for high leakage integrity, crucial for conveying flammable, toxic, or expensive materials.


Application Areas:


Petrochemical pipeline system

High temperature and high pressure equipment connection

Marine engineering

Food and pharmaceutical pipelines

Heat exchanger, boiler, pressure vessel system
