ASTM A234 CS Butt Weld Fittings

As the core component for interconnecting and turning industrial pipeline systems, the quality and performance of butt weld fittings are related to the safe and stable operation of the entire system. ASTM A234 CS butt weld fittings, with strict standard specifications, excellent mechanical properties, and wide applicability, have become one of the important pipeline fittings in the global industrial field, providing solid support for pipeline system connections in various complex environments.

ASTM A234 Material Standard Specification

ASTM A234 is a standard for carbon steel and alloy butt weld fittings developed by the American Society for Testing and Materials (ASTM) to standardize the production requirements of butt weld fittings for medium and high temperature pressure pipeline systems. It is a globally recognized quality measurement standard for carbon steel butt weld pipe fittings. This standard strictly defines the chemical composition, mechanical properties (such as tensile strength, yield strength, elongation), heat treatment process, and non-destructive testing methods (such as ultrasonic testing, penetration testing) of materials, effectively avoiding safety hazards such as pipeline leakage and rupture caused by quality problems of pipe fittings.

The ASTM A234 CS butt weld fittings standard has a high degree of universality and compatibility, and the specified pipe dimensions need to comply with the size and tolerance range specified in ASEM B16.9 standard. It can be used in conjunction with pipes, valves, and other accessories produced by different manufacturers, providing convenience for the efficient operation of the global industrial supply chain.

Materials of ASTM A234 CS Butt Weld Fittings

ASTM A234 standard classifies carbon steel materials into multiple grades based on the operating conditions of the fittings, such as temperature and pressure. Among them, the most commonly used are WPB and WPC materials. The composition and performance characteristics of each grade of material are as follows:

WPB: It is the most widely used carbon steel material in ASTM A234 standard, with a carbon content of ≤ 0.30% and a manganese content of 0.29-1.06%. By optimizing the chemical composition and heat treatment process, its mechanical properties are: tensile strength ≥ 415MPa, yield strength ≥ 240MPa, and can withstand a temperature range of -29 ℃ to 343 ℃. It is suitable for medium temperature and medium pressure pipeline systems, such as atmospheric and vacuum distillation equipment pipelines in petroleum refineries and urban centralized heating pipelines.

Chemical Composition

Mechanical Properties

WPC: It belongs to medium carbon steel materials with a carbon content of ≤ 0.35% and a manganese content of 0.29-1.06%. It has higher tensile strength and yield strength (tensile strength ≥ 485MPa, yield strength ≥ 275MPa), further improved temperature resistance (up to 427 ℃), and is suitable for high temperature and high pressure working conditions, such as steam pipelines in power plants and reactor connection pipelines in chemical plants.

Chemical Composition

Mechanical Properties

Regardless of the grade of material, ASTM A234 carbon steel butt welded pipe fittings have good weldability and processability, and can easily adapt to different pipeline installation needs through welding, cutting, drilling and other processes. At the same time, their cost is much lower than stainless steel or alloy steel pipe fittings, which can effectively reduce the overall construction cost of pipeline systems while meeting the design requirements of pipeline systems.

Definition and advantages of ASTM A234 CS Butt Weld Fittings

ASTM A234 CS butt weld fittings are pipe fittings made from high-quality carbon steel through a series of production processes. They are connected to pipes by welding and are mainly used to achieve functions such as turning, branching, and reducing the diameter of pipes. Compared with other connection methods such as threaded fittings and socket fittings, ASTM A234 CS Butt Weld Fittings have three core advantages:

High connection strength: The welded interface can form an integral structure with the pipeline body, capable of withstanding higher pressure and impact forces, and suitable for medium and high pressure pipeline systems;

Good sealing performance : When ASTM A234 carbon steel butt welded pipe fittings are connected to pipelines, the welding interface is seamless, which can effectively prevent the leakage of media (such as crude oil, natural gas, steam) inside the pipeline, especially suitable for pipelines transporting flammable, explosive or toxic media;

Excellent fluidity : Smooth inner wall of pipe fittings, no local resistance caused by threads or socket structures, which can reduce energy loss during medium flow and lower the operating cost of pipeline systems.

Types of Butt Weld Fittings

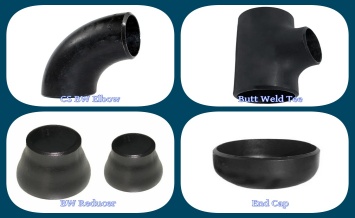

ASTM A234 CS butt weld fittings can be divided into multiple categories based on functional requirements, such as butt welded elbows, tees, tees, reducers, pipe caps, etc. Different types of fittings have their own emphasis on structural design and application scenarios, which can meet diverse pipeline design needs:

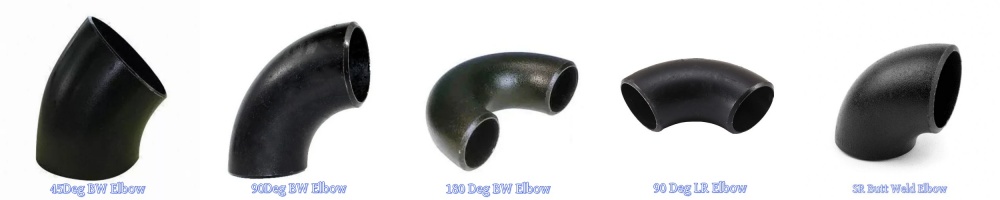

Butt weld elbow: used for pipe turning, it is one of the most commonly used ASTM A234 CS butt weld fittings.

According to the bending angle, it can be divided into 90 ° elbows, 45 ° elbows, and 180 ° elbows.

90 ° elbows are suitable for vertical turning scenarios of pipelines, such as workshop pipelines changing from horizontal to vertical direction;

45 ° elbows are commonly used for small angle turning to reduce medium flow resistance, and are commonly found in conveying pipelines with high medium flow rates;

The 180 ° elbow is used for pipeline folding, such as heat exchange system pipelines that require medium reflux.

In addition, according to the bending radius, it can be divided into long radius (1.5D) and short radius (1D) elbows.

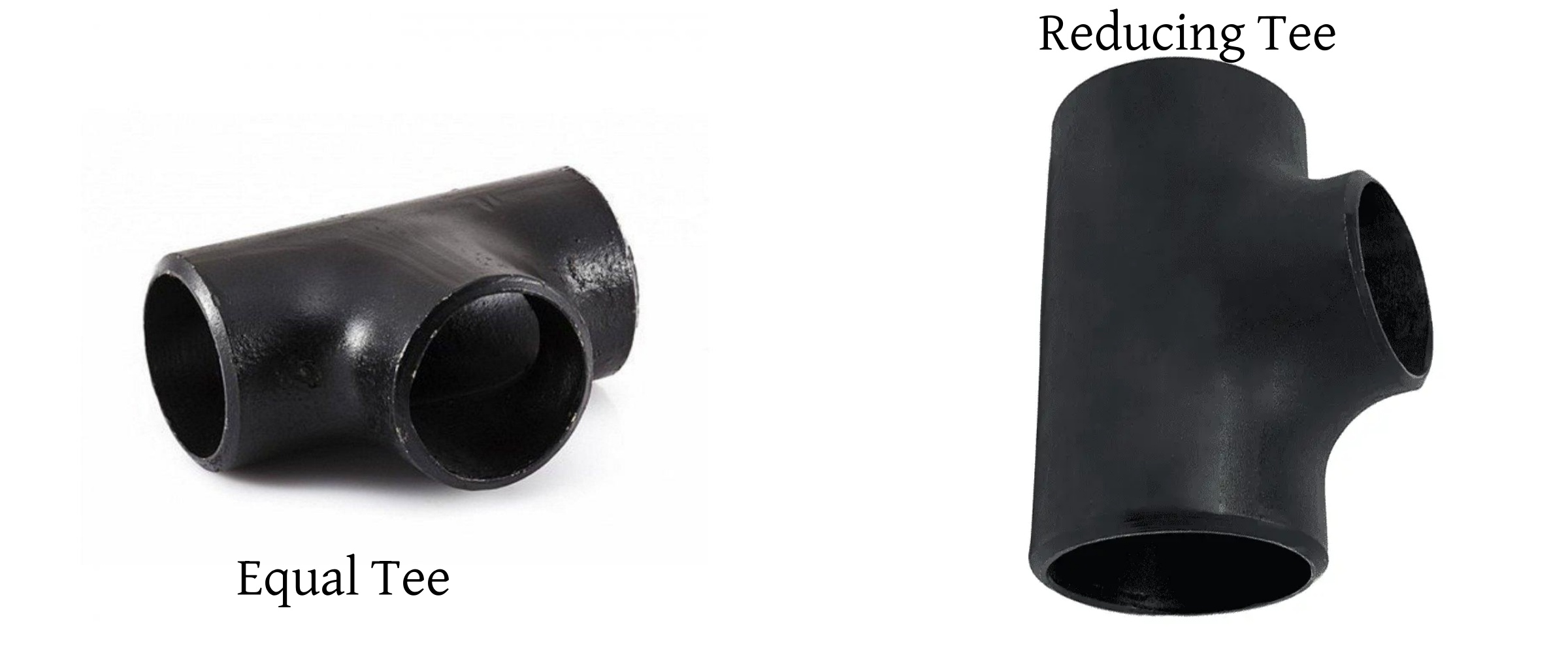

Butt weld tee: It is a type of pipeline fitting with a T-shaped shape. It is a common butt welded fitting and an important component of pipeline systems. According to the different export diameters, there are butt welded equal diameter tees and butt welded reducing tees for pipe fittings.

Equal tee: also known as straight tee, with three diameters having the same outer diameter. Mostly used in scenarios that require uniform distribution, such as branching of municipal water supply pipelines;

Reducing tee: The outer diameter of the branch pipe's port is smaller than that of the main pipe's port. Suitable for conveying media from the main pipeline to small-diameter branch pipes, such as the diversion from the main reaction pipeline to the sampling branch pipe in chemical plants.

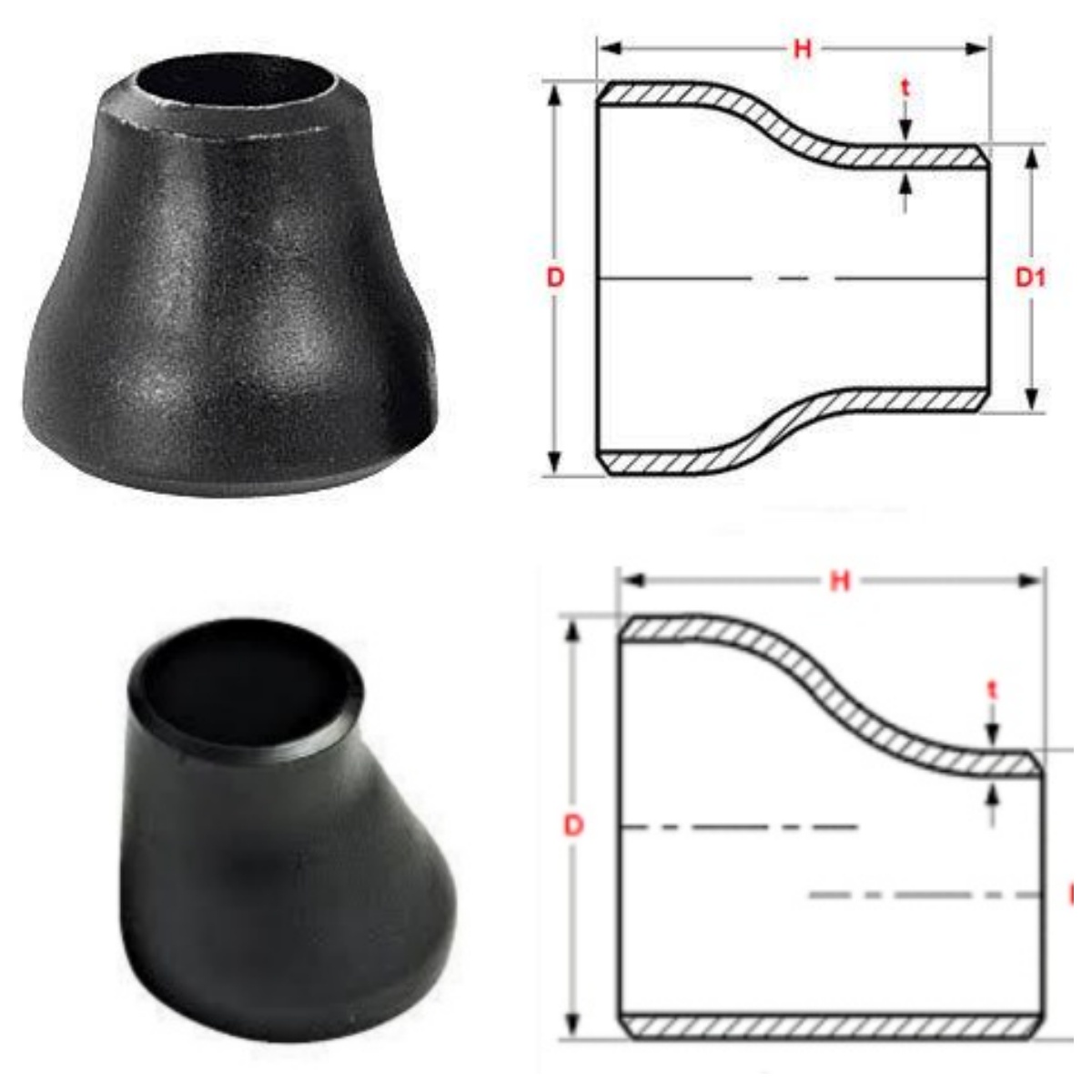

Butt weld reducer : used to connect pipes of different diameters, achieving smooth transition of pipe diameters. It can be divided into concentric reducer and eccentric reducer according to its structure.

Concentric reducers are suitable for variable diameter scenarios where the pipeline axis coincides, such as pipe diameter changes at the inlet and outlet of pumps and compressors;

Eccentric reducers are used in scenarios where the pipeline axis does not coincide or where medium retention needs to be avoided, such as in the drainage section of steam pipelines, to prevent corrosion caused by condensed water retention at the bottom of the pipeline.

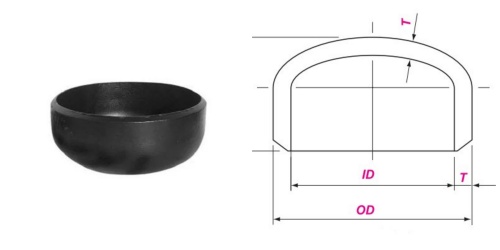

End cap : used for sealing the end of pipelines to prevent external impurities from entering the pipeline or medium leakage inside the pipeline. It is commonly used for sealing the end of pipeline systems, equipment inlet and outlet, or temporary sealing during pressure testing, such as sealing the end of the feed pipeline of oil storage tanks.

Scope of Application

With excellent performance and high cost-effectiveness, ASTM A234 CS butt weld fittings have been widely used in many industrial fields:

Petrochemical industry: pipeline systems used for crude oil extraction, transportation, refining, and chemical product production;

Power and energy industry: Suitable for steam pipelines and thermal pipelines of thermal power plants, as well as auxiliary pipeline systems of nuclear power plants;

Municipal construction industry: used for urban water supply, drainage, and gas transmission pipelines;

Mechanical manufacturing industry: used for connecting equipment internally and between equipment and pipelines, ensuring the coordinated operation of equipment and pipeline systems.

Development Trend

With the global industrial transformation towards "low-carbon, efficient, and intelligent" direction, ASTM A234 butt weld fittings are also showing two major development trends:

One is the greenization of materials: by optimizing steelmaking processes (such as using short process steelmaking to reduce pollutant emissions) and recycling technologies, the environmental friendliness of carbon steel raw materials can be improved. At the same time, low-alloy high-strength carbon steel materials can be developed to reduce material consumption and carbon emissions during the production and use of pipe fittings while ensuring performance;

The second is intelligent production: introducing automated welding equipment, digital technology, and AI quality inspection systems to achieve precise control and quality traceability of the pipe production process, further improving product quality stability and production efficiency.

With the continuous improvement of safety and environmental protection requirements for industrial pipeline systems, ASTM A234 CS butt weld fittings will further expand their application boundaries on the basis of continuous performance optimization, providing higher quality pipeline connection fittings for the sustainable development of global industry.
