ASTM A234 WPB elbow, with excellent material properties and reasonable structural design, has become the preferred product for pipeline turning in chemical, petroleum, power and other fields, perfectly adapting to complex working conditions such as high pressure and medium temperature.
ASTM A234 is a standard specification for carbon steel and alloy steel butt welded pipe fittings developed by the American Society for Testing and Materials (ASTM), covering a variety of fittings such as butt welded elbows, tees, tees, reducers, and pipe caps. This standard specifies the material requirements, manufacturing process, mechanical properties, and inspection standards for welded fittings.
The ASTM A234 standard is divided into multiple grades based on material, with WPB being the most widely used carbon steel grade. In addition, it includes WPC, WP11, WP12, etc. Different grades correspond to different chemical compositions and mechanical properties, and are suitable for different working environment requirements.
WPB is a carbon steel grade under ASTM A234 standard, where "W" represents "Welding", "P" represents "Pressure", and "B" represents material grade.
From the perspective of chemical composition, WPB material requires a carbon content of ≤ 0.30%, manganese content of 0.29% -1.06%, silicon content of 0.10% min, phosphorus and sulfur content of ≤ 0.050% and ≤ 0.058% respectively. Low impurity content can reduce welding defects and improve the crack resistance of pipe fittings;
Mechanical properties: At room temperature, the tensile strength is ≥ 415MPa, the yield strength is ≥ 240MPa, and the elongation rate is ≥ 22%. The high strength can withstand the pressure impact of the pipeline system, and the good elongation rate ensures that the pipeline components are not easily deformed or cracked due to bending during installation;
Chemical Composition
| CHEMICAL | LIMITS | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V |
| ASTM A234 WPB | MIN | 0.29 | 0.10 | ||||||||
| MAX | 0.30 | 1.06 | 0.050 | 0.058 | 0.40 | 0.15 | 0.40 | 0.40 | 0.08 |
Mechanical Properties
| MATERIAL | T.S (MPA) | Y.S (MPA) | EL % | HARDNESS |
| ASTM A234 WPB | 415 min | 240 min | 22 min | 197 max |
From the perspective of manufacturing process, ASTM A234 WPB elbow require high-quality carbon structural steel as raw material, which is hot forged and then subjected to normalizing treatment (heated to 890-940 ℃, insulated and air-cooled) to refine the grain size and ensure material uniformity.
Temperature resistance: Long term use temperature range is -29 ℃ to 425 ℃, suitable for medium temperature medium transportation. Within this temperature range, the hardness and toughness of the material do not significantly decrease
Weldability: The composition design of low carbon and low sulfur phosphorus makes ASTM A234 WPB elbows less prone to porosity and slag inclusion during welding. The strength of the welded joint can reach over 90% of the strength of the base material, without the need for special welding processes, reducing construction difficulty;
Corrosion resistance: Although made of carbon steel material, it can be used in neutral environments after rust removal, painting or galvanizing treatment. If combined with anti-corrosion coatings, it can also adapt to pipelines with mild corrosive media.

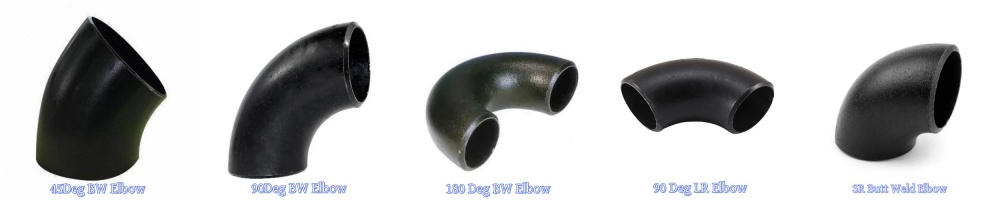

ASTM A234 WPB elbow can be classified into the following main types based on "turning angle" and "structural form", and different types are suitable for different pipeline layout requirements:

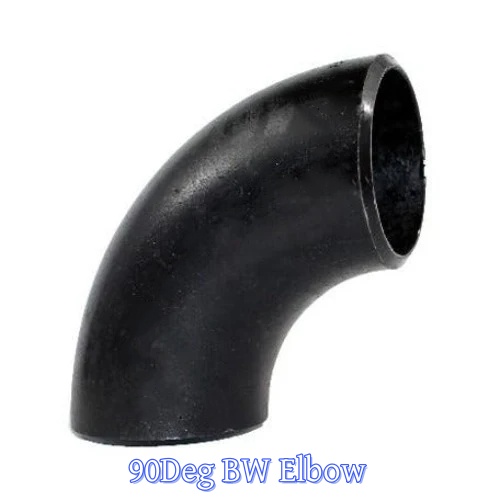

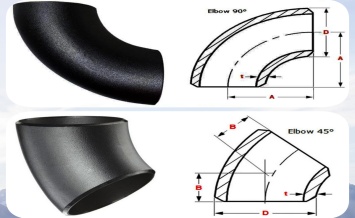

Purpose: To achieve 90 deg vertical turning of pipeline systems, it is the most commonly used ASTM A234 WPB elbow type, widely used at corners and branches of pipeline systems;
Features: The bending angle makes the pipeline smoothly turn, the resistance when the medium flows through is small, and the welding connection method has strong sealing performance.
Purpose: Used for 45 deg inclined turning of pipelines, reducing turbulence and pressure loss during medium turning;
Features: The angle design is gentle, with a flow resistance coefficient of only 60% of a 90 ° elbow, which can reduce pipeline energy consumption. It also uses butt welding connection.

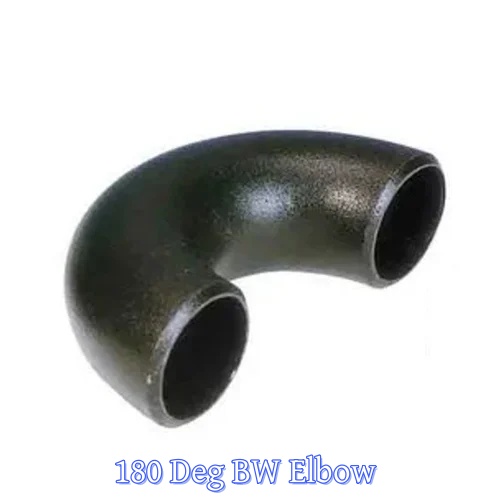

Purpose: To achieve 180 deg reversal of pipelines, commonly used in scenarios where medium reflux or pipeline avoidance is required;
Features: Parallel interfaces at both ends, symmetrical structure, can reduce pipeline vibration, excellent sealing after butt welding connection, but requires a large installation space to be reserved.
The long radius elbow is the most widely used ASME A234 WPB elbow type. Its bending radius is equal to 1.5 times the nominal diameter of the pipeline (i.e. 1.5D).
Features:
Low flow resistance: Due to the smoother bending curve, it has less resistance to fluids (liquids or gases) and lower pressure loss.
Low erosion and wear: A gentle bend can reduce fluid erosion and corrosion on the outer inner wall of the elbow, especially suitable for slurries with solid particles or corrosive media.
Large space occupation: Due to its larger bending radius, it requires more installation space.
The bending radius of a short radius elbow is equal to 1.0 times the nominal diameter of the pipeline (i.e. 1.0D).
Features:High flow resistance: sharp bends can lead to greater turbulence and pressure loss.
Significant erosion and wear: Rapid changes in fluid direction can concentrate on scouring the outer inner wall of the elbow, which can easily lead to wear and corrosion.
Small space occupancy: plays a crucial role in work environments with limited space.
In addition to the common types mentioned above, butt welded elbows also include customized angle elbows, 3D elbows, etc.
Customized angle elbows : Such as 30 degree and 60 degree butt welded elbows, are typically used for special layout requirements or to replace combinations of two standard elbows to reduce solder joints and pressure losses.
3D Elbow: Its bending radius is 3 times the nominal diameter. The curve of this elbow is very gentle, which can greatly reduce pressure loss and erosion wear.
ASTM A105 is a commonly used material standard for forged carbon steel flanges and fittings. It belongs to the same carbon steel material as ASTM A234 WPB, but there are differences in applicable scenarios and performance. The specific comparison is as follows:
Compare | ASTM A234 WPB | ASTM A105 |
Products | Butt Weld Elbow 、Tee、Cross、Reducer、Cap | Socket Weld Fittings、Threaded Fittings |
Mechanical Properties | T.S (MPA)≥ 415MPa，Y.S (MPA)≥240MPa | T.S (MPA)≥485MPa，Y.S (MPA)≥250MPa |
Temperature | -29℃ to 425℃ | -29℃ to 343℃ |
Welding | Better | Good |
Operating Conditions | Steering/connection of medium high pressure and medium temperature pipelines, dynamic medium transportation | High pressure, room temperature static pressure scenarios, such as flange sealing surfaces |
The pressure bearing capacity of ASTM A234 WPB elbow is directly related to the wall thickness grade. Common wall thickness grades are divided into Sch10, Sch20, Sch40, Sch80, and Sch160 according to ASME B16.9 standard. The pressure bearing range of different grades is as follows (under normal temperature conditions):
Sch10 (thin-walled): pressure bearing ≤ 1.6MPa, suitable for low-pressure pipelines, such as civil water supply and drainage, compressed air pipelines;
Sch20: Pressure ≤ 2.5MPa, suitable for medium and low pressure industrial pipelines, such as cooling water pipelines;
Sch40 (conventional wall thickness): pressure bearing ≤ 4.0MPa, suitable for most industrial medium pressure conditions, such as steam pipelines and oil transportation pipelines;
Sch80 (thick walled): pressure ≤ 8.0MPa, suitable for high-pressure pipelines, such as chemical reactor feed pipelines;
Sch160 (extra thick wall): pressure ≤ 16MPa, suitable for high-pressure and high-risk medium pipelines, such as natural gas transmission main pipelines.
It should be noted that the pressure range will decrease with the increase of operating temperature. For example, under the condition of 400 ℃, the pressure of Sch40 grade WPB elbow needs to be reduced to below 2.5MPa to avoid material strength attenuation and leakage.
ASTM A234 WPB elbows are widely used in the following industries:
petrochemical industry
Natural gas transmission
power industry
Municipal Engineering
Metallurgical industry
Food processing industry
Pharmaceutical and Food Industry
Shipbuilding industry
