The construction and operation of industrial pipeline systems cannot be separated from welded pipe fittings. As the core connecting components that make up the entire pipeline network, welded pipe fittings play a role in connecting, turning, and diverting. Their quality, selection, and installation directly determine the safety, sealing, durability, and operational efficiency of the system.
In low-temperature working environments, the physical properties of butt weld pipe fittings need to withstand extreme temperature challenges, which puts forward more stringent requirements for material performance and manufacturing standards. ASTM A420 pipe fittings, as an important product in the low-temperature industrial field, have become the preferred solution for industries such as petrochemicals, natural gas, and refrigeration due to their excellent low-temperature toughness, strict quality control, and extensive material selection.
ASTM A420 is a standard specification developed by the American Society for Testing and Materials (ASTM) for low temperature forged carbon steel and alloy steel butt welded pipe fittings. The core objective of this standard is to ensure that pipe fittings have sufficient toughness, strength, and sealing performance in low-temperature environments, preventing material embrittlement or structural failure caused by sudden temperature drops. Clear regulations have been established for the material chemical composition, mechanical performance requirements, manufacturing process specifications, dimensional tolerance standards, non-destructive testing methods, and labeling and packaging requirements of pipe fittings. Its applicable temperature range can be as low as -45℃, covering the needs of most industrial low-temperature working conditions. At the same time, detailed definitions have been made for the design pressure, connection methods, etc. of pipe fittings, providing comprehensive technical guidance for manufacturers and users.
In terms of quality control, ASTM A420 standard requires that pipe fittings must undergo strict performance testing, including tensile testing, impact testing (especially low-temperature impact testing), hardness testing, etc., to ensure that each batch of products can meet the requirements for use in low-temperature environments. In addition, the standard also puts forward strict requirements for the procurement of raw materials, heat treatment processes, welding quality, and other aspects to ensure the reliability of pipe fittings from the source.
ASTM A420 butt weld pipe fittings refer to a type of pipe fittings designed, manufactured, and inspected according to this standard, which are connected to pipeline systems using butt welding. Butt welding connection is a method of forming an integral connection between a pipe fitting and the end of a pipeline by chamfering them and using welding technology. Compared with threaded or socket connections, it has significant advantages such as high connection strength, good sealing, and low flow resistance.
From the perspective of structural types, ASTM A420 pipe fittings cover various types of fittings commonly used in industrial pipeline systems, including butt welded elbows (90 °, 45 °, 180 °), tees (equal tees, reducing tees), tees, reducers , pipe caps, etc.

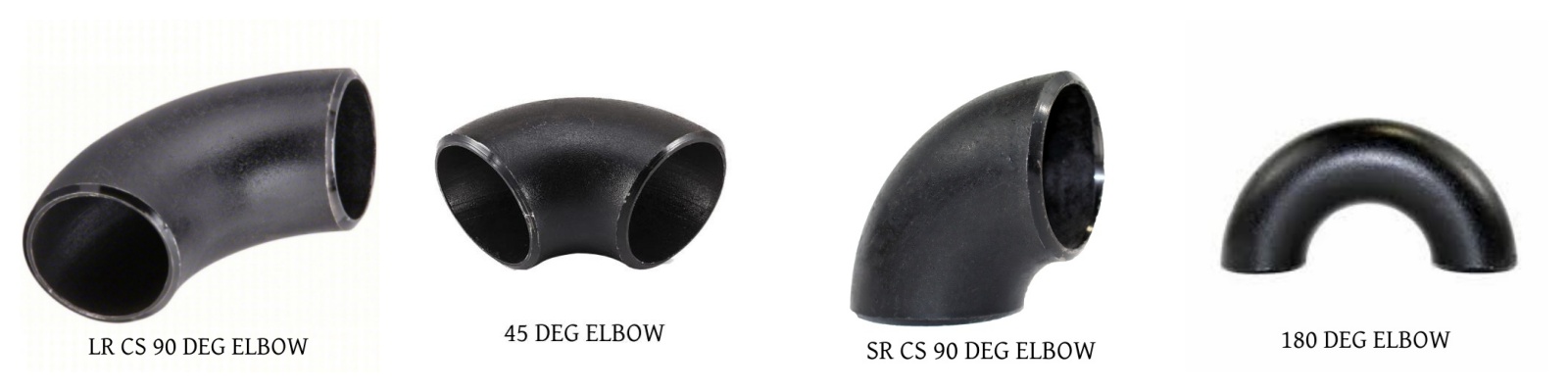

Butt Weld Elbow: used to change the direction of the pipeline, avoiding erosion and excessive pressure drop caused by sharp turns.
Equal and Reducing Tee: Used to divert or merge branch pipes from the main pipe, it is a key component for changing the direction of fluid flow.
Concentric/Eccentric Reducers: used to connect pipes of different diameters and achieve gradual changes in pipe diameter. Eccentric reducers are commonly used in situations where the bottom of the pipeline needs to be kept flat, such as pump inlets, to avoid cavitation.

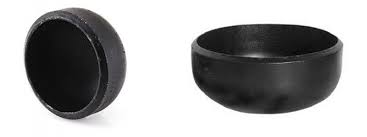

Butt Weld Cap: Used to permanently or temporarily seal the end of a pipeline.

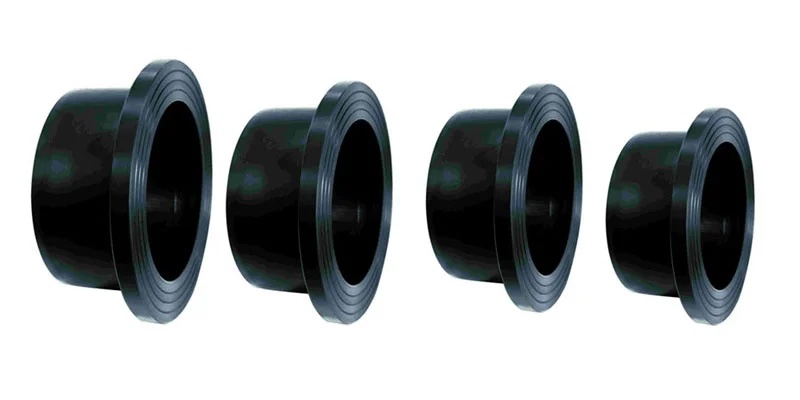

Stub End: Used in conjunction with neck welding flanges as a detachable connection solution.
ASTM A420 standard covers various grades of carbon steel and alloy steel materials suitable for low-temperature environments. These material grades are divided into multiple grades based on their chemical composition and mechanical properties, such as WPL3, WPL6, WPL9, WPL11, WPL12, WPL22, etc. Among them, WPL6 is one of the most widely used materials.
| CHEMICAL | LIMITS | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | Cb | V |
| ASTM A420 WPL6 | MIN | 0.50 | 0.15 | |||||||||
| MAX | 0.30 | 1.35 | 0.035 | 0.040 | 0.40 | 0.40 | 0.30 | 0.12 | 0.40 | 0.02 | 0.08 |
WPL6 material belongs to low-temperature carbon steel materials, and its chemical composition is strictly controlled within the range of carbon ≤ 0.30%, manganese 0.50-1.35%, phosphorus ≤ 0.035%, sulfur ≤ 0.040%. At the same time, it is allowed to add appropriate amounts of silicon (≤ 0.15-0.40%) and other elements to optimize performance. This composition design enables WPL6 material to maintain a certain strength while possessing excellent low-temperature toughness, effectively resisting embrittlement phenomena in low-temperature environments.
MATERIAL | ASTM A420 WPL6 |
T.S (MPA) | 415-655 |
Y.S (MPA) | 240 min |
Elongation equirements | ASTM A420 WPL6 | |
Longi-tudinal | Trans-verse | |
Standard round specimen, or small proportionaspecimen, min %e in 4 D | 22 min | 12 min |
Rectangular specimen for wall thickness e in. 0.94mm and over, and for all small sizes tested in fusection: min % o in 2 in. or 50 mm | 30 min | 16.5 min |
In terms of mechanical properties, the yield strength of WPL6 material is not less than 240MPa, the tensile strength is between 415-655MPa, and the elongation rate is ≥ 22%. These indicators ensure the structural stability of the pipe fittings under pressure and external forces.
Charpy lmpact Requirements for WPL6, WPL9, and WPL3 | ||||
Size of Specimen | Charpy V-Notch ImpactValue Required forAcceptance(Average of Three Specimens) | Minimum Charpy V-NotchImpact Value WithoutRequiring Retest(OneSpecimen Only of a Set) | ||
ft.lbf | J | ft.lbf | J | |
10*10 | 13 | 18 | 10 | 14 |
10*7.5 | 10 | 14 | 8 | 11 |
10*5.0 | 7 | 9 | 5 | 7 |
10*2.5 | 4 | 5 | 3 | 4 |
Experimental Temperature
lmpact Test Temperature | |
GRADE | TemperatureF°[C°] |
WPL6 | -50[-45] |
The core performance advantage is reflected in the low-temperature impact toughness. According to ASTM A420 standard requirements, when WPL6 material is subjected to Charpy V-notch impact test at -45 ℃, the average impact absorption energy is not less than 27J, and the impact absorption energy of a single sample is not less than 20J. This indicator fully guarantees the anti brittle fracture ability of the pipe fittings in extreme low-temperature environments.
The reason why ASTM A420 pipe fittings can occupy an important position in the low-temperature industrial field is closely related to their excellent performance characteristics, which enable them to adapt to harsh low-temperature working environments and provide reliable guarantees for the safe operation of pipeline systems.
Excellent low-temperature toughness: the core advantage of ASTM A420 pipe fittings. The material of the pipe fittings under this standard has been rigorously validated through low-temperature impact testing, and can maintain good toughness in extreme low-temperature environments of -45 ℃, effectively preventing material brittleness and sudden fracture caused by low temperatures
High strength and structural stability: Through high-quality raw material selection and advanced forging processes, the pipe fittings have high yield strength and tensile strength, and can withstand the working pressure and external loads in the pipeline system.
Excellent welding performance: The materials under this standard have good weldability and are not prone to defects such as cracks and pores during the welding process. The mechanical properties of the welded joint can be consistent with the base material, ensuring the strength and sealing of the welded area.
In the field of butt welded pipe fittings for industrial pipelines, ASTM A420 and ASTM A234 are two widely used standards, with significant differences in their scope of application, material properties, and application scenarios. Users need to make reasonable choices based on specific working conditions.
From the perspective of applicable temperature range, ASTM A420 standard is suitable for low-temperature working environments, clearly specifying the requirements for the use of fittings in temperature environments of -45 ℃ and below. Its material selection and performance testing are all focused on low-temperature toughness. The ASTM A234 standard is mainly applicable to normal temperature environments, usually ranging from -29 ℃ to 427 ℃. Although some material grades can also be used at lower temperatures, there are no specific requirements for low-temperature performance like ASTM A420.
In terms of material systems, ASTM A420 mainly covers low-carbon steel and low-alloy steel materials (such as WPL3, WPL6, WPL9, etc.), which have excellent low-temperature toughness through optimized chemical composition and heat treatment processes. ASTM A234 includes a wider range of material types, such as carbon steel (WPB, WPC), chromium molybdenum alloy steel (WP1, WP5, WP9, etc.), whose material properties focus more on strength and heat resistance at room temperature or medium low temperature.
The difference in performance requirements is the most fundamental difference between the two. The ASTM A420 standard imposes strict requirements on the low-temperature impact toughness of pipe fittings, and all material grades must pass impact tests at -45 ℃ or lower to ensure their resistance to brittle fracture in low-temperature environments. Although ASTM A234 standard also requires materials to have certain toughness, it does not mandate low-temperature impact testing. The impact testing temperature is usually 0 ℃ or higher, mainly focusing on the mechanical properties at room temperature.
From the perspective of application scenarios, ASTM A420 pipe fittings are mainly used in pipeline systems for transporting low-temperature media, such as liquefied natural gas (LNG) pipelines, low-temperature refrigeration systems, ethylene plants, etc. ASTM A234 welded pipe fittings are widely used in industrial pipelines under normal or medium temperature conditions, such as pipeline systems in petroleum refining, chemical production, power generation, urban gas and other fields.
In terms of cost and cost-effectiveness, due to the higher requirements for materials and manufacturing processes of ASTM A420 pipe fittings, their cost is usually higher than that of ASTM A234 welded pipe fittings of the same type. However, under low-temperature conditions, choosing ASTM A420 pipe fittings can effectively reduce safety risks, and from the perspective of long-term operating costs and safety, it has a higher cost-effectiveness.
Oil & Gas (Upstream, Midstream, Downstream)
Chemical & Petrochemical Plants
Power Generation
Pharmaceutical & Food & Beverage Industry
Water & Wastewater Treatment
Shipbuilding & Offshore
HVAC & Plumbing
ASTM A420 pipe fittings have become an ideal choice for low-temperature industrial pipeline systems due to their strict standard specifications, high-quality material selection, excellent low-temperature performance, and wide range of applications.
