Hastelloy C22 vs C276

Views: 6     Author: Site Editor     Publish Time: 2025-06-12      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Hastelloy alloy has become a key material in extreme environments such as chemical, energy and marine due to its excellent corrosion resistance. Hastelloy C22 and C276 are two different nickel-based high-temperature alloys, both of which are known for their excellent corrosion resistance and high-temperature performance, but there are some differences in chemical composition, physical properties and application areas. This article provides a comprehensive comparison of Hastelloy C22 and C276 to help understand the differences between them and determine their suitability in various industrial applications.


Shanghai Zhucheng Pipe Fittings Manufacturing Co Ltd. focus on the production of pipe fittings, flanges, bolts and other products using Hastelloy C22 and C276 materials, and are committed to providing customers with reliable and excellent corrosion-resistant alloy solutions. This article will compare Hastelloy C22 and C276 in detail to help you understand the differences between them and choose the right alloy according to the actual application.

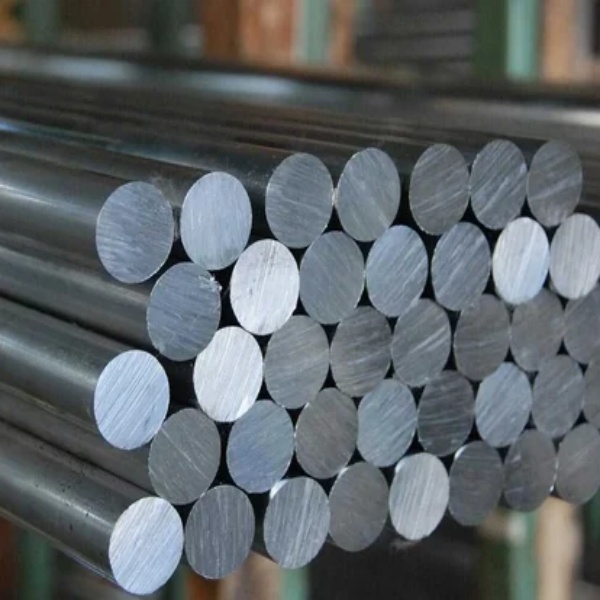

Hastelloy C22

Hastelloy C22

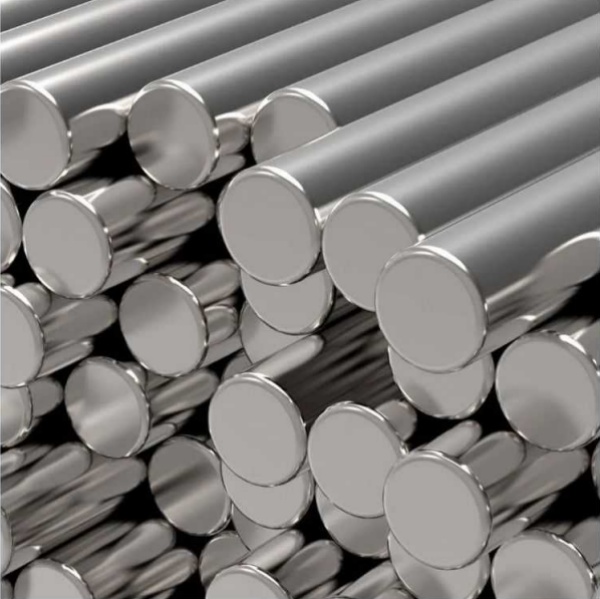

Hastelloy C276

Hastelloy C276


What Is Hastelloy C22?


Hastelloy C22 (N06022) Hastelloy alloy is a nickel-based high-temperature alloy composed of nickel, molybdenum, cobalt, tungsten and other elements, with a nickel content of about 60%. It is a versatile nickel-chromium-molybdenum-tungsten alloy with better overall corrosion resistance than other existing nickel-chromium-molybdenum alloys, including Hastelloy C-276, C4 alloy and 625 alloy. Hastelloy C22 alloy has good resistance to pitting, crevice corrosion and stress corrosion cracking. It has excellent resistance to oxidizing aqueous media, including wet chlorine, nitric acid or mixed acids of oxidizing acids containing chloride ions.


What Is Hastelloy C22 Used For?


- Commonly used in high temperature and corrosive environments in chemical processing, petrochemical and power industries.


- Suitable for manufacturing equipment such as heat exchangers, reactors and valves.


- Also used for certain parts in aerospace and marine engineering.


What is Hastelloy C276


Hastelloy C276 is a nickel-based alloy, belonging to the Hastelloy alloy series. It is mainly composed of nickel, chromium and molybdenum, and contains a small amount of iron, tungsten, cobalt and other elements. Compared with other nickel-based alloys, Hastelloy C276 has a strong ability to resist oxidation and reduction corrosion due to its unique chemical composition combination, especially in acidic and high temperature environments.


What Is Hastelloy C276 Used For?


- Widely used in chemical, marine engineering, nuclear industry and aerospace fields.


- Particularly suitable for manufacturing equipment working in chloride environments, such as parts of offshore platforms and parts of chemical equipment.


- Also used in pollution control equipment such as scrubbers and flue gas desulfurization systems.


Hastelloy C22 vs C276 - Chemical Composition


Both of these Hastelloy alloys are nickel-based and contain high proportions of chromium (Cr), molybdenum (Mo) and tungsten (W), which are key to their excellent corrosion resistance. Their low carbon (C) and silicon (Si) contents are intended to optimize weldability and reduce susceptibility to intergranular corrosion.


The most notable feature of C22 is its higher chromium content, which makes it perform better than C276 in oxidizing media. C276 has a higher molybdenum content, which contributes to its corrosion resistance in reducing media.


Element

Carbon (C)

Manganese (Mn)

Phosphorus (P)

Sulfur (S)

Silicon (Si)

Chromium (Cr)

Nickel (Ni)

Molybdenum (Mo)

Cobalt (Co)

Iron (Fe)

Tungsten (W)

Vanadium (V)

Hastelloy C22

≤0.015

≤0.50

≤0.02

≤0.02

≤0.08

20.0 – 22.5

Remainder (rem)

12.5 – 14.5

≤2.5

2.0 – 6.0

2.5 – 3.5

≤0.35

Hastelloy C276

≤0.01

≤1.00

≤0.04

≤0.03

14.5 – 16.5

Remainder (rem)

15.0 – 17.0

≤2.5

4.0 – 7.0

3.0 – 4.5

≤0.35


Hastelloy C22 vs C276 - Mechanical Property


Mechanically, both Hastelloy C22 and C276 exhibit excellent strength and toughness, meeting the needs of most demanding industrial applications. C22 may have a slight advantage in yield strength, but overall, the difference in mechanical properties is usually not as significant as the difference in corrosion performance and is not the most important consideration when choosing between the two.


These mechanical properties make both alloys suitable for a wide range of applications, including chemical processing, oil and gas, power generation, and aerospace. The choice between the two usually depends on the specific requirements of the application, such as the need for higher corrosion resistance or better formability.


Hastelloy C22 vs C276 - Physical Properties


Hastelloy C22:

-Has high thermal stability and good mechanical properties.

-Maintains its strength and corrosion resistance at high temperatures.

-Suitable for parts working in high temperature and corrosive environments.


Hastelloy C276:

-Also has good high temperature strength and corrosion resistance.

-Due to its special alloy design, C276 performs particularly well in chloride environments.

-Also has good welding performance and hot and cold processing performance.


Hastelloy C22 vs C276 - corrosion resistance


Common excellent corrosion resistance


1. Comprehensive corrosion resistance: Both can resist a wide range of highly corrosive media, including oxidizing and reducing environments.

2. Local corrosion resistance: Both have excellent resistance to pitting corrosion, crevice corrosion and stress corrosion cracking (SCC). This is crucial for media containing chloride ions, halides, etc. that are prone to local corrosion.

3. Welded corrosion resistance: Both have extremely low carbon (C) and silicon (Si) contents, which minimizes the precipitation of intergranular carbides in the weld heat affected zone (HAZ), so they can still maintain good corrosion resistance in the welded state (usually without post-weld solution heat treatment), especially intergranular corrosion resistance.

4. Resistance to various acids: They show good tolerance to sulfuric acid, hydrochloric acid, phosphoric acid, nitric acid, and organic acids such as formic acid and acetic acid.


Comparison of key differences in corrosion resistance


Corrosive Environment

C22 Performance

C276 Performance

Comparison Result

Oxidizing acids (e.g. nitric acid, wet chlorine gas)

Excellent (high Cr content, superior oxidation resistance)

Good, but slightly inferior to C22

✅ C22 is stronger

Reducing acids (e.g. hydrochloric acid, phosphoric acid)

Good, but slightly weaker than C276

Excellent (high Mo and W content)

✅ C276 is stronger

Mixed acids (e.g. sulfuric acid + chlorides)

Outstanding general corrosion resistance

Excellent, but slightly lower than C22

⚖️ C22 slightly better

Chloride-induced corrosion (pitting/crevice)

High PREN value (excellent chloride corrosion resistance)

Good, but slightly lower PREN

✅ C22 is stronger

Wet chlorine gas, sodium hypochlorite

Excellent resistance to oxidizing chlorine corrosion

May show slight corrosion

✅ C22 clearly outperforms C276

Stress Corrosion Cracking (SCC)

High resistance

High resistance

⚖️ Both are excellent

Seawater / Salt spray

Excellent

Excellent

⚖️ Comparable

High-temperature corrosion (>500°C)

Stable and suitable

Stable, but slightly lower performance

⚖️ C22 slightly better


Hastelloy C22 vs C276 -High-Temperature Performance


Hastelloy C22:

The C22 alloy exhibits good metallurgical stability at elevated temperatures, particularly under long-term service conditions up to 600°C. Its microstructure remains stable, offering strong resistance to intergranular corrosion. With a higher chromium content (approximately 22%), C22 provides superior high-temperature oxidation resistance, making it especially suitable for aggressive oxidizing atmospheres such as wet chlorine and hot nitric acid. C22 also maintains good strength below 600°C, though its mechanical strength decreases more rapidly beyond this temperature.


Hastelloy C276:

C276 alloy also maintains structural stability at high temperatures, but compared to C22, it is more prone to intermetallic phase precipitation during prolonged exposure, which can reduce its toughness and corrosion resistance. While C276 does possess some oxidation resistance, its lower chromium content (around 15%) makes it less effective than C22 in high-temperature oxidizing environments. However, C276 has slightly higher tensile strength than C22 and can retain good mechanical properties even at extreme temperatures (e.g., above 800°C).


Hastelloy C22 vs C276 - Cost


Hastelloy C22: Generally more expensive due to its greater resistance to a wider range of corrosive environments and superior weldability.


Hastelloy C276: A cost-effective choice for applications requiring excellent corrosion resistance in challenging environments, making it a top choice for many industries.

However, the exact cost depends on the shape, size, and quantity of fasteners you require, as well as the supplier you choose. Always compare prices and quality from different suppliers before purchasing.


Conclusion


In summary, Hastelloy C22 and C276 are both highly versatile alloys, renowned for their corrosion resistance and mechanical strength in harsh environments. Hastelloy C22 offers outstanding resistance to a wide range of acids and chlorides, making it well-suited for applications requiring broad chemical resistance. If your application involves strong oxidizing agents, high-concentration wet chlorine, hypochlorites, chlorates, or demands exceptional resistance to localized corrosion (such as pitting and crevice corrosion), and the budget allows, Hastelloy C22 will deliver superior performance and extended service life.


Hastelloy C276 performs exceptionally well in environments rich in chlorides and oxidizing acids, providing strong protection against stress corrosion cracking and pitting. If your application primarily involves reducing media or general corrosive conditions, and cost is a key consideration, Hastelloy C276 is often an excellent choice.


By gaining a deep understanding of the microstructure and properties of these two alloys, industries can select the most appropriate material based on specific requirements, ensuring long-term stability and reliability of their equipment.
