The core idea of carbon steel pipe anti-corrosion is to isolate the surface of the pipe from contact with corrosive media, or to change the electrochemical properties of the pipe through electrochemical methods, making it difficult to corrode. The anti-corrosion treatment of carbon steel pipes refers to the process of adding a layer of anti-corrosion barrier on the surface of the steel pipe through a series of physical, chemical, or electrochemical techniques, to prevent or delay the reaction between external corrosive media (such as moisture, oxygen, salt spray, chemical solvents, etc.) and the steel pipe substrate, thereby avoiding damage such as corrosion and perforation of the steel pipe.
Carbon steel pipes have become the core material for transporting fluids and constructing industrial pipeline systems due to their excellent comprehensive performance, wide applicability, and low cost. However, carbon steel material also has its obvious disadvantages. In complex environments such as humidity, acidity, alkalinity, and soil erosion, the pipe body is easily corroded, which not only shortens the service life of the pipeline, but also may cause production safety hazards and unnecessary economic losses. The corrosion of steel pipes is mainly caused by electrochemical corrosion (such as atmospheric, soil, seawater) or chemical corrosion (such as acid-base media). Therefore, the carbon steel pipe anti-corrosion has become a key link in ensuring the safe and stable operation of pipeline systems.
The anti-corrosion treatment of carbon steel pipes has diverse and critical functions, with the primary function being to isolate corrosive media. A strong anti-corrosion layer is formed on the surface of the steel pipe, effectively separating it from corrosive substances such as moisture, oxygen, acid and alkali salts, thereby preventing the steel pipe from being corroded.
Secondly, it can delay the time for carbon steel pipes to corrode. Even if the anti-corrosion layer is slightly damaged during long-term use, its special chemical composition and structure can slow down the penetration rate of corrosive media into the interior of the steel pipe, thereby improving the service life of the pipeline.
In addition, anti-corrosion treatment can improve the appearance quality of pipelines, reduce surface rust, potholes and other problems caused by corrosion, and maintain the cleanliness and beauty of steel pipes.
More importantly, effective anti-corrosion treatment can reduce the frequency of pipeline maintenance and replacement, minimize production interruptions and safety accidents caused by pipeline failures, and ensure the continuity and safety of industrial production and infrastructure operation.
There are various methods for carbon steel pipe anti-corrosion, each with its own unique principles and applicable scenarios. Different methods also have their own advantages and disadvantages. The following will analyze in detail the advantages and disadvantages of several main methods, providing reference for the selection of methods in practical applications.
This method involves coating a corrosion-resistant metal layer on the surface of the steel pipe, which serves as a physical barrier.

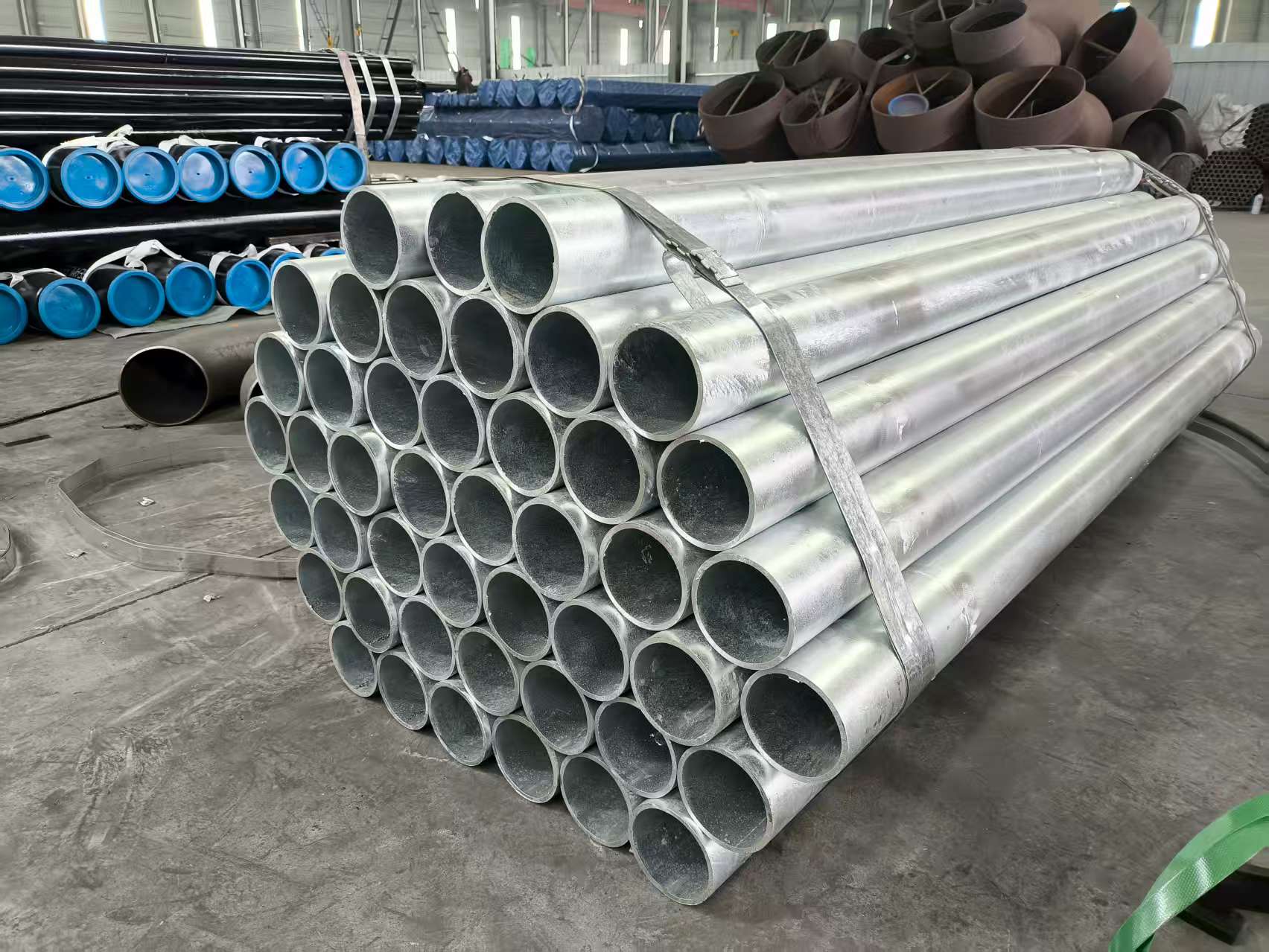

Hot Dip Galvanizing
Process: Immerse the steel pipe in molten zinc to form a layer of zinc iron alloy and pure zinc on its surface.
Advantages: Cathodic protection Zinc has a higher chemical activity than iron, and even if the coating is damaged, zinc will act as a "sacrificial anode" to preferentially corrode, thus achieving anti-corrosion effect; Dense coating complete coverage without dead corners; Good durability, can be used for a long time in atmospheric environments.
Disadvantages: Not resistant to strong acids and alkalis; Performance will decrease at high temperatures; Uneven coating and unattractive appearance.
Application: One of the most common cost-effective anti-corrosion methods, widely used in transmission towers, bridge guardrails, building scaffolding, water pipes, gas pipes, etc.
Electrogalvanizing
Process: Deposition of a layer of zinc on the surface of steel pipes through electrolytic reaction.
Advantages: Uniform, smooth, and aesthetically pleasing coating.
Disadvantages: The coating is thinner and the anti-corrosion life is not as good as hot-dip galvanizing; No cathodic protection effect (after coating damage).
Application: Mainly used in situations where high dimensional accuracy and appearance are required, but the corrosion environment is not harsh, such as furniture, automotive parts, etc.
By coating or lining the inner and outer walls of the steel pipe with an inert, dense non-metallic material, the steel pipe is completely isolated from the medium.
Paint&Coating
Process: Multiple layers of protective film are formed on the surface by brushing, rolling, or spraying. Usually includes primer (containing anti rust pigments, such as epoxy zinc rich primer, with cathodic protection), intermediate coat (increasing coating thickness), and topcoat (weather resistant, medium resistant).
Advantages: Flexible construction and multiple color options.
Disadvantages: The requirements for surface treatment (rust removal, oil removal) of the original pipe are extremely high, and the coating is prone to pinhole defects. Outdoor construction is greatly affected by weather conditions.
Application: Almost all fields, from ships and marine platforms (heavy anti-corrosion coatings) to storage tanks, pipelines, and steel structure buildings.

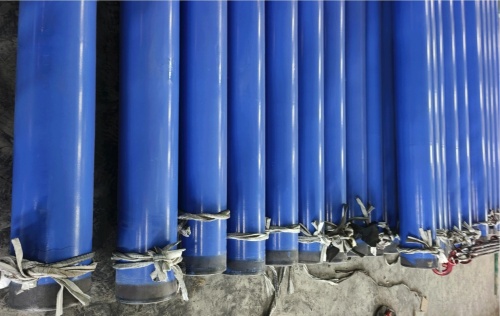

Fusion Bonded Epoxy (FBE) Coating
Process: Epoxy powder is adsorbed onto the surface of preheated steel pipes through electrostatic spraying, and the powder melts, flows, and solidifies to form a tough plastic coating.
Advantages: extremely thick coating (300-500 μ m), strong adhesion, good chemical corrosion resistance, no pinholes, suitable for harsh environments.
Disadvantage: Not resistant to ultraviolet radiation (powdering when exposed to sunlight), usually requiring an outer layer of polyethylene (PE) as a protective layer.
Application: The absolute mainstream of anti-corrosion for buried pipelines is the standard configuration for long-distance oil, natural gas, and water pipelines.

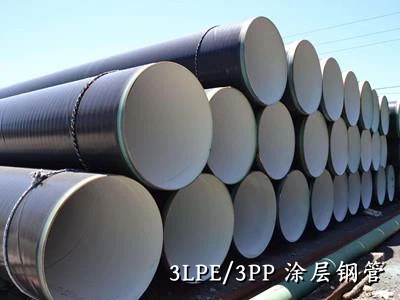

Polyethylene/Polypropylene Coating (2PE/3PE, PP)
Craftsmanship: This is a multi-layer system. Taking the most commonly used 3PE as an example: the first layer is FBE (adhesion), the second layer is adhesive, and the third layer is extruded polyethylene (anti-corrosion, mechanical protection).
Advantages: Combining the high adhesion of FBE with the super strong mechanical properties, insulation, and chemical stability of PE, it is currently the best performing external anti-corrosion technology for buried pipelines.
Disadvantages: High cost, requiring large factory production lines, and difficulty in on-site joint patching.
Application: High standard requirements for long-distance oil and gas pipelines, urban pipe galleries, and pipeline crossings.
Cement Mortar Lining
Process: Spin coat or spray a layer of cement mortar on the inner wall of the steel pipe.
Advantages: Low cost, non-toxic, resistant to water corrosion, and able to prevent scaling.
Disadvantages: Brittle texture, fear of impact and temperature fluctuations, increased weight.
Application: Internal anti-corrosion of large-diameter water pipelines and municipal water supply and drainage pipelines.
Plastic/Rubber Lining
Process: Paste or mold a layer of polytetrafluoroethylene (PTFE), polyvinylidene fluoride (PVDF), butyl rubber, etc. on the inner wall of the steel pipe.
Advantages: Strong resistance to strong acids, alkalis, and various organic solvents corrosion.
Disadvantages: The cost is very high and the construction process is complex.
Application: Process pipelines in industries such as chemical, pharmaceutical, printing and dyeing.
This method is usually used in conjunction with coatings as a 'double protection'.
Sacrificial Anode Protection
Principle: Connect a metal with a more negative potential than a steel pipe (such as magnesium alloy, aluminum alloy, zinc alloy) to the steel pipe to form a primary battery. The metal is continuously consumed as an anode to protect the steel pipe as a cathode.
Advantages: No need for external power supply, simple management, no over protection, minimal interference.
Disadvantages: Low driving potential, limited protection range; Regular replacement of anodes is required.
Application: Protect small or scattered buried pipelines, dock steel piles, ship shells, and tank bottom plates.
Impressed Current Cathodic Protection (ICCP)
Principle: By using an external DC power source and auxiliary anodes (such as high silicon cast iron or MMO titanium anodes), a cathodic current is applied to the steel pipe, forcing it to become a cathode and receive protection.
Advantages: Large and adjustable output current, wide protection range, long lifespan (anode durability).
Disadvantages: Requires external power supply, high initial investment, complex design management, and may cause interference to adjacent metal structures.
Application: Large, long-distance buried or underwater pipelines, large storage tanks, power plant condensers, etc.
Using corrosion-resistant materials
Directly use stainless steel (such as 304, 316L), duplex steel, or weathering steel to manufacture steel pipes.
Weathering steel: By adding alloying elements such as copper, phosphorus, chromium, nickel, etc., a dense and strong adhesion protective rust layer is formed on its surface to prevent further corrosion. Commonly used in outdoor steel structures such as bridges and buildings, it embodies a unique industrial aesthetic.
Advantages: Once and for all, reducing post maintenance.
Disadvantage: The material cost is very high.
Underground pipeline: 3PE/FBE+cathodic protection is preferred.
Atmospheric environment structure: hot-dip galvanized or heavy-duty anti-corrosion coating system.
Water pipeline: The inner wall is lined with cement mortar, and the outer wall is galvanized or coated according to whether it is buried or elevated.
Chemical pipeline: Choose plastic/rubber lining or stainless steel according to the medium.
Economical outdoor structure: weather resistant steel.
Firstly, extending the service life of pipelines is its core advantage. Effective anti-corrosion treatment can significantly slow down the corrosion rate of steel pipes and significantly reduce the cost of pipeline replacement.
Secondly, reduce maintenance costs. The pipeline after anti-corrosion treatment is less prone to corrosion damage, reducing the number of repairs and maintenance costs.
Furthermore, enhance security. Preventing pipeline leakage, rupture and other problems caused by corrosion, avoiding environmental pollution, fires, explosions and other safety accidents caused by fluid leakage, and ensuring the safety of personnel, property and ecological environment.
Finally, improve economic efficiency. Although anti-corrosion treatment requires a certain initial investment, in the long run, it can bring significant economic benefits to enterprises and society due to the extended service life of pipelines, reduced maintenance costs, and improved safety.
Carbon steel pipes anti-corrosion has been widely used in multiple fields due to its excellent performance.
In the petrochemical industry, pipelines transporting crude oil, refined oil, natural gas, various chemical solvents, and corrosive media must undergo strict anti-corrosion treatment to ensure safe and stable production operation.
In the field of municipal infrastructure, urban water supply, drainage, gas, heat and other pipeline systems buried underground or exposed to the atmosphere are susceptible to soil corrosion, atmospheric corrosion and water quality corrosion. Anti corrosion treatment is the key to ensuring the long-term reliable operation of municipal pipelines.
In the power industry, steam and water pipelines in thermal power plants, oil pipelines, and cooling water pipes in nuclear power plants all require anti-corrosion treatment to resist the erosion of high temperature, high pressure, and corrosive media.
In the field of transportation, steel structure pipelines in infrastructure such as highways, railways, and bridges, as well as oil and water pipelines for ships and vehicles, also rely on anti-corrosion treatment to cope with various complex environmental corrosion.
In the mining and metallurgical industry, pipelines transporting highly corrosive media such as slurry and waste liquid can improve their wear resistance and corrosion resistance through anti-corrosion treatment, reducing the occurrence of failures.
In addition, anti-corrosion treatment of carbon steel pipes also plays an important role in agricultural irrigation, water conservancy engineering and other fields, ensuring the effective transportation and utilization of water resources.
In summary, carbon steel pipe anti-corrosion is an important technical means to ensure the safe, stable, and efficient operation of pipeline systems. Whether in industrial production or infrastructure construction, choosing appropriate anti-corrosion treatment methods to scientifically and effectively protect carbon steel pipes from corrosion has important practical significance and economic value.
