In industrial pipeline engineering, the quality and performance of pipe fittings directly affect the safe and stable operation of the system. Socket weld fittings have become the preferred product in many industries due to their excellent quality and adaptability. Below, we will delve into the core advantages of this pipe fitting from multiple dimensions.
ASTM A182 is developed by the American Society for Testing and Materials (ASTM) specifically for forged alloy and stainless steel fittings, covering various types such as socket weld fittings and threaded fittings. Simply put, it specifies the chemical composition, mechanical properties, and heat treatment requirements for steel used in the manufacture of flanges, fittings, valves, and other high-pressure and high-temperature pipeline system components.
The materials of ASTM A182 socket weld fittings are mainly divided into three categories: alloy, austenitic stainless steel, and duplex stainless steel. Suitable materials can be selected for use according to the specific industrial pipeline working environment.
Alloy Materials
Common grades such as F11, F22, F91, etc., have excellent high-temperature strength and creep resistance, and perform outstandingly in high-temperature and high-pressure environments such as petrochemicals and thermal power. They can withstand long-term high-temperature loads and reduce the risk of pipe deformation or damage.
Chemical Composition
| CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo | Cb |
| ASTM A182 F11 CL1 | MIN | 0.05 | 0.30 | 0.50 | 1.00 | 0.44 | ||||
| MAX | 0.15 | 0.60 | 0.03 | 0.03 | 1.00 | 1.50 | 0.65 | |||
| ASTM A182 F11 CL2 | MIN | 0.10 | 0.30 | 0.50 | 1.00 | 0.44 | ||||
| MAX | 0.20 | 0.80 | 0.04 | 0.04 | 1.00 | 1.50 | 0.65 | |||
| ASTM A182 F11 CL3 | MIN | 0.05 | 0.30 | 0.50 | 1.00 | 0.44 | ||||
| MAX | 0.15 | 0.60 | 0.03 | 0.03 | 1.00 | 1.50 | 0.65 | |||
| ASTM A182 F22 CL1，CL3 | MIN | 0.05 | 0.30 | 2.00 | 0.87 | |||||
| MAX | 0.15 | 0.60 | 0.04 | 0.04 | 0.50 | 2.50 | 1.13 | |||
| ASTM A182 F91 | MIN | 0.08 | 0.30 | 0.02 | 8.00 | 0.85 | 0.06 | |||
| MAX | 0.12 | 0.60 | 0.02 | 0.01 | 0.50 | 0.40 | 9.50 | 1.05 | 0.10 |
Mechanical Properties
| MATERIAL | ASTM A182 F11 CL1 | ASTM A182 F11 CL2 | ASTM A182 F11 CL3 | ASTM A182 F12 CL1 | ASTM A182 F12 CL2 | ASTM A182 F22 CL1 | ASTM A182 F22 CL3 | ASTM A182 F91 |
| T.S (MPA) | 415 min | 485 min | 515 min | 415min | 485min | 415min | 515min | 620min |
| Y.S (MPA) | 205 min | 275 min | 310 min | 220min | 275min | 205min | 310min | 415min |
| EL % | 20 min | 20 min | 20 min | 20min | 20min | 20min | 20min | 20min |
| R/A % | 45 min | 30 min | 30 min | 45min | 30min | 35min | 30min | 40min |
| HARDNESS | 121-174 | 143-207 | 150-207 | 121-174 | 143-207 | 170 | 156-207 | 190-248 |
Stainless Steel
represented by F304/304L, F316/316L, F321/321H, it has good corrosion resistance and toughness, can resist various acidic and alkaline media erosion, and has excellent low-temperature performance.
Chemical Composition
| CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo | N | Ti |
| ASTM A182 F304 | MIN | 8.0 | 18.0 | ||||||||
| MAX | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 11.0 | 20.0 | 0.10 | |||
| ASTM A182 F316 | MIN | 10.00 | 16.00 | 2.00 | |||||||
| MAX | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 14.00 | 18.00 | 3.00 | 0.10 | ||
| ASTM A182 F321 | MIN | 9.00 | 17.00 | 5(C+N) | |||||||
| MAX | 0.08 | 2.00 | 0.050 | 0.030 | 1.00 | 12.00 | 19.00 | 0.10 | 0.70 |
Mechanical Properties
| MATERIAL | ASTM A182 F304 | ASTM A182 F304L | ASTM A182 F316 | ASTM A182 F316L | ASTM A182 F321 |
| T.S (MPA) | 515 min | 485 min | 515 min | 485 min | 515 min |
| Y.S (MPA) | 205 min | 170 min | 205 min | 170 min | 205 min |
| EL % | 30 min | 30 min | 30 min | 30 min | 30 min |
| R/A % | 50 min | 50 min | 50 min | 50 min | 50 min |
Duplex Stainless Steel
such as ASTM A182 F51, F53, F55, etc., combining the advantages of austenitic and ferritic stainless steel, it has high strength and high corrosion resistance, strong resistance to stress corrosion cracking, and is suitable for harsh environments such as marine engineering and chemical desulfurization.
Chemical Composition
| CHEMICAL | LIMITS | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu | W |
| ASTM A182 F51 | MIN | 4.50 | 21.00 | 2.50 | 0.08 | |||||||
| MAX | 0.03 | 2.00 | 0.030 | 0.020 | 1.00 | 6.50 | 23.00 | 3.50 | 0.20 | |||
| ASTM A182 F53 | MIN | 6.00 | 24.00 | 3.00 | 0.24 | |||||||
| MAX | 0.03 | 1.20 | 0.035 | 0.020 | 0.80 | 8.00 | 26.00 | 5.00 | 0.32 | 0.50 | ||
| ASTM A182 F55 | MIN | 6.00 | 24.00 | 3.00 | 0.20 | 0.50 | 0.50 | |||||
| MAX | 0.03 | 1.00 | 0.030 | 0.010 | 1.00 | 8.00 | 26.00 | 4.00 | 0.30 | 1.00 | 1.00 |
Mechanical Properties
| MATERIAL | ASTM A182 F51 | ASTM A182 F53 | ASTM A182 F55 |
| T.S (MPA) | 620 min | 800 min | 750-895 |
| Y.S (MPA) | 450 min | 550 min | 550 min |
| EL % | 15 min | 25 min | 25 min |
| R/A % | 15 min | 45 min | |
| HARDNESS | 310 max |
The "F" represents "Forged", "L" represents low carbon, and "H" represents high carbon (to ensure high temperature strength)
Heat treatment is a key step in optimizing the performance of ASTM A182 socket weld fittings. Corresponding heat treatment processes should be adopted according to the characteristics of different material grades to balance strength, toughness, and corrosion resistance. The specific steps are as follows:
The core of heat treatment for alloy material fittings is "normalizing+tempering", with the aim of refining grain size, improving strength and toughness, and reducing internal stress.
Normalization treatment: Heat the pipe fittings to 30-50 ℃ above Ac3 (F11 steel is about 880-920 ℃, F22 steel is about 900-940 ℃), hold for a period of time (usually 1-2 hours depending on the thickness of the pipe fittings), fully austenitize the steel structure, and then cool in air. Normalization can eliminate coarse grains generated during forging, forming a uniform pearlite+ferrite structure, laying the foundation for subsequent tempering.
Tempering treatment: Preheat the normalized pipe fittings to a temperature below Ac1 (F11 steel is about 620-680 ℃, F22 steel is about 650-700 ℃), hold for 2-4 hours, and then slowly cool. Tempering can reduce the internal stress after normalizing, adjust the hardness of the structure, and make the pipe fittings have good toughness while maintaining high strength, avoiding brittle cracking under low temperature or vibration conditions.
Austenitic stainless steel is an important material in ASTM A182 socket fittings, and its heat treatment is mainly based on "solution treatment", with the core of restoring corrosion resistance and improving plasticity.
Solution treatment process: Heat the pipe fittings to 1050-1150 ℃ (F304 steel is about 1080-1120 ℃, F316 steel is about 1100-1150 ℃), hold for 1-3 hours (adjusted according to the thickness of the pipe fittings), so that the carbides (such as Cr23C6) in the steel are fully dissolved into the austenite structure, and then rapidly cool with water (cooling rate ≥ 50 ℃/min). Rapid cooling can suppress the precipitation of carbides at grain boundaries, avoid chromium depletion at grain boundaries, thereby ensuring the corrosion resistance of stainless steel, especially improving its ability to resist intergranular corrosion, and adapting to strong corrosive environments such as chemical and pharmaceutical industries.
Dual phase stainless steel fittings need to undergo "solution treatment+aging treatment" to balance the ratio of austenite and ferrite phases, optimize strength and corrosion resistance.
Solution treatment: Heat to 1020-1080 ℃, hold for 1-2 hours to fully homogenize the two-phase structure, then quickly cool with water to fix the two-phase ratio (usually austenite accounts for 40% -60%, ferrite accounts for 60% -40%), avoid the precipitation of carbides and nitrides, and ensure corrosion resistance.
Time treatment: Some F2205 pipe fittings with extremely high strength requirements need to undergo time treatment after solid solution treatment, heating to 450-550 ℃ and holding for 4-6 hours to allow a small amount of intermetallic compounds (such as σ phase) to precipitate, further improving the yield strength and hardness of the pipe fittings, while avoiding excessive precipitation that may lead to a decrease in toughness, suitable for harsh scenarios such as marine engineering and high-pressure pipelines.
ASTM A182 offers a wide variety of socket weld fittings, including socket elbows, socket tees, socket tees, socket caps, socket couplings, and more. In the ASTM A182 socket weld fitting system, different types of products have unique functions and advantages, suitable for the diverse needs of industrial pipeline systems.
Purpose

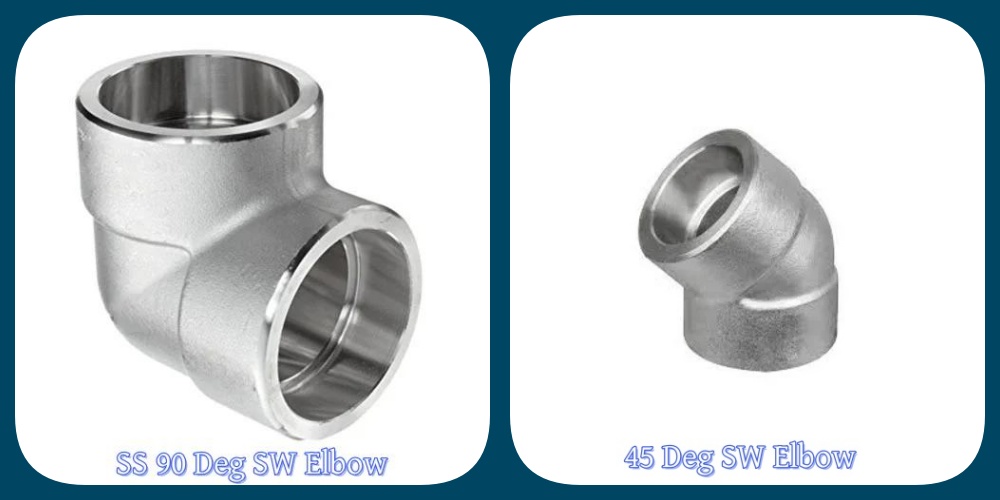

As an important component of ASTM A182 socket weld fittings, socket elbows are mainly used to change the direction of fluid transport and adapt to pipeline designs with different spatial layouts. In practical applications, common specifications include 45 °, 90 °, and 180 ° (U-shaped), which can be flexibly selected according to engineering needs: 90 ° elbows are mostly used in vertical pipeline turning scenarios; The 45 ° elbow is suitable for smooth turning needs and reduces fluid resistance; The 180 ° elbow is used for pipeline folding.
Feature
Strong connection sealing
Low fluid resistance
Compact structure
Purpose

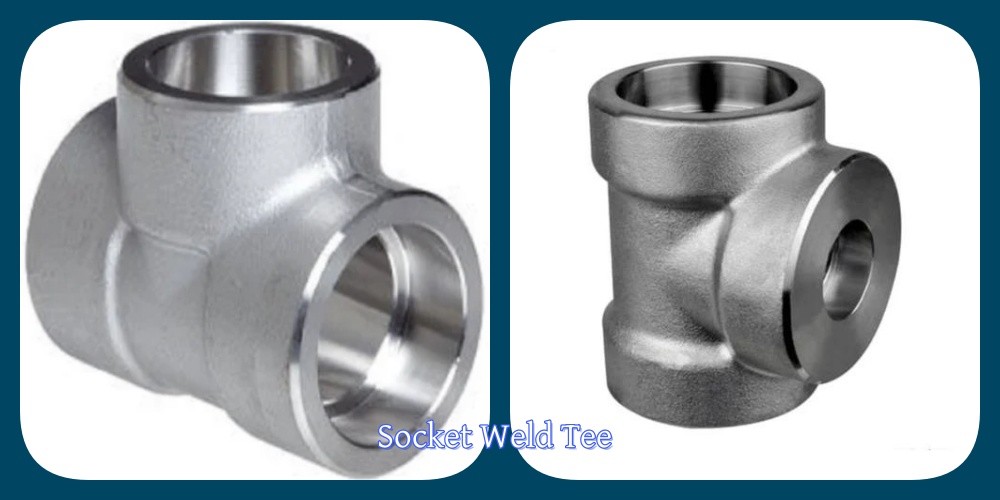

Socket weld tees are used to achieve branching connections in pipelines, diverting fluid from a single pipeline to two or more pipelines, or converging fluid from multiple pipelines to a single pipeline.
Feature
High diversion/convergence efficiency
Excellent pressure resistance
Easy installation
Purpose

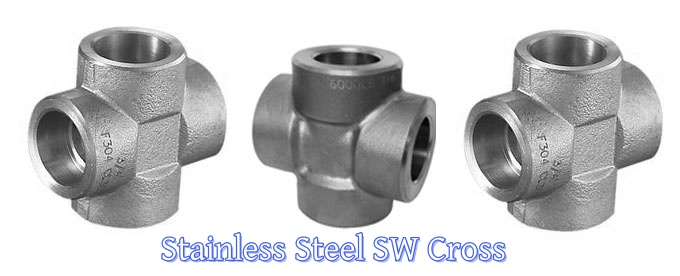

SW cross is an extension product of three-way, with four interfaces (two main pipes and two branch pipes, vertically intersecting), mainly used to achieve bidirectional branching of pipelines and meet the multi-directional transportation needs of complex pipelines.
Feature
Strong multi-directional connection capability
High structural strength
Wide adaptability
Purpose

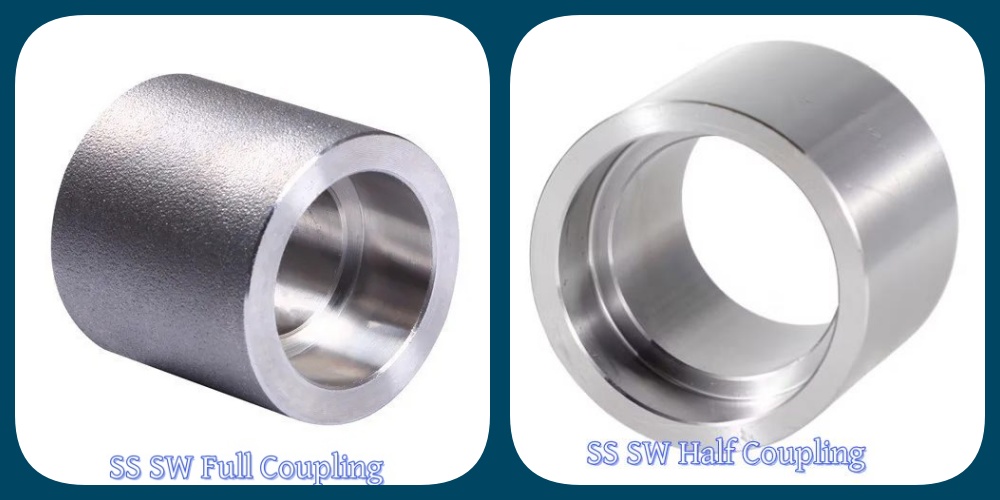

Socket weld coupling is a special category of socket weld fittings, mainly used for connecting two sections of pipes of the same diameter, to extend the pipeline or repair damaged parts of the pipeline.
Feature
Strong connection stability
Flexible installation
Good compatibility
Purpose

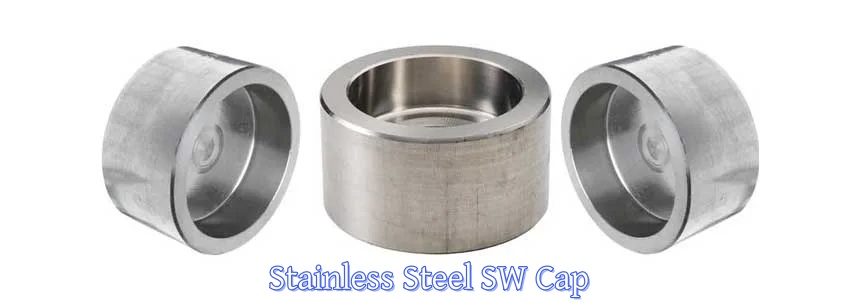

Socket cap is used to seal the end of a pipeline, protecting the interior of the pipeline and preventing impurities from entering or fluid leakage.
Feature
Good sealing protection
Excellent impact resistance
Corrosion resistant and durable
Socket weld fittings have multiple advantages:
Reliable connection, good sealing of plug-in connection, reducing the risk of leakage;
Strong weather resistance, suitable for various harsh environments such as high temperature, low temperature, corrosion, etc., extending service life;
Compact structure, small footprint, suitable for narrow installation scenarios;
High cost-effectiveness, excellent performance and durability reduce maintenance costs in the later stage, saving expenses for enterprises.
These characteristics make it significantly competitive in industrial pipeline systems.
Petroleum & Natural Gas
Petrochemical Industry
Thermal Power Generation
Nuclear Power
Shipbuilding & Offshore Engineering
Chemical Industry
Pharmaceutical & Biotechnology
Pulp & Paper Industry
Liquefied Natural Gas
High-Tech Manufacturing
