Size Range: 1/2" - 80" / DN15 - 2000
Thickness Schedule: SCH 10 - SCH 160, XXS
Standard: ANSI / ASME B16.9 / MSS SP 43
Availability: | |
---|---|
Quantity: | |

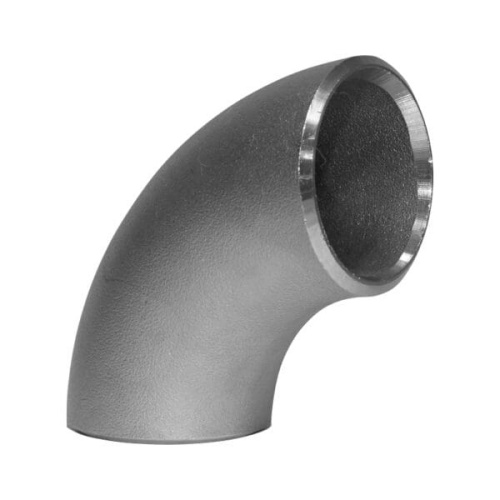

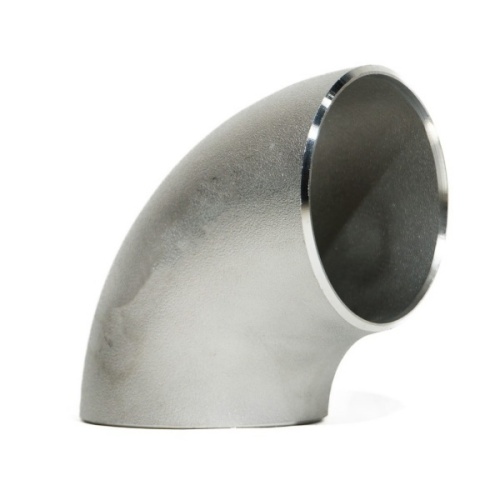

ANSI/ASME B16.9 90 degree elbow is one type of steel pipe fittings which used to change direction of the pipeline.It can be divided into long radius (LR) and short radius (SR). We provide carbon steel, stainless steel and aluminum elbow in both seamless and welded for the overseas projects.
ASME B16.9 butt weld elbow is the most common used fittings in the industries by various degrees of 22.5, 45, 90 and 180. Besides, they have good yield strength and tensile strength. Usually the butt weld tee and reducer have function of reducing the sizes in the pipe system, while we can produce the special reducing elbow to connect pipes with different sizes.
Carbon Steel 90 degree elbow 4”SCH80 A234 WPB ASME B16.9
Before delivery, we will test the Angle, wall thickness and size of the elbow to ensure that the product is qualified.
Butt weld elbow products less than 8”will be neatly arranged inside the wooden box, larger than 8” will be plastic packaging and then put on the wooden base.
ASME B16.9 Standard covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought buttwelding fittings in sizes NPS 1/2 to NPS 48 (DN 15 to DN 1200). It covers fittings of any producible wall thickness. This standard does not cover low pressure corrosion resistant buttwelding fittings. See MSS SP-43, Wrought Stainless Steel Butt-Welding Fittings.
Buttwelding Fittings are used in a piping system to change direction or function of media, to branch off, reduce pipe size or attach auxiliary equipment. They are availbale in multiple types as elbow, tee, cap, reducer, stub end and oelt, that produced in cold and hot forming based on ASTM A403 and ASTM A234 specification.
Size Range | 1/2" - 80" / DN15 - 2000 |
Thickness Schedule | SCH 10, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS |
Standard | ANSI / ASME B16.9, MSS SP 43, JIS B2311/2312/2313, EN10253 |
Carbon Steel Grades | ASTM A234 WPB/WPC, A420 WPL6, A860 WPHY 42 / 46 / 56 / 60 / 65 |
Alloy Steel Grades | ASTM A234 WP11 / WP12 / WP5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5 |
Stainless Steel Grades | ASTM A403 WP304/304L/304H, 316/316L, 310S, 317, 347, 904L |
Duplex Stainless Steel Grades | ASTM A815 S32205, S31803, 32750, 32760 |
DN | NPS | OD | A | |
LR | SR | |||
15 | 1/2 | 21.3 | 38 | 25 |
20 | 3/4 | 26.7 | 38 | 25 |
25 | 1 | 33.4 | 38 | 25 |
32 | 1-1/4 | 42.2 | 48 | 32 |
40 | 1-1/2 | 48.3 | 57 | 38 |
50 | 2 | 60.3 | 76 | 51 |
65 | 2-1/2 | 73.0 | 95 | 64 |
80 | 3 | 88.9 | 114 | 76 |
90 | 3-1/2 | 101.6 | 133 | 89 |
100 | 4 | 114.3 | 152 | 102 |
125 | 5 | 141.3 | 190 | 127 |
150 | 6 | 168.3 | 229 | 152 |
200 | 8 | 219.1 | 305 | 203 |
250 | 10 | 273.0 | 381 | 254 |
300 | 12 | 323.8 | 457 | 305 |
350 | 14 | 355.6 | 533 | 356 |
550 | 22 | 559.0 | 838 | 559 |
600 | 24 | 610.0 | 914 | 610 |
650 | 26 | 660.0 | 991 | 660 |
700 | 28 | 711.0 | 1067 | 711 |
750 | 30 | 762.0 | 1143 | 762 |
800 | 32 | 813.0 | 1219 | 813 |
850 | 34 | 864.0 | 1295 | 864 |
900 | 36 | 914.0 | 1372 | 914 |
950 | 38 | 965.0 | 1447 | 965 |
1000 | 40 | 1016.0 | 1524 | 1016 |
1050 | 42 | 1067.0 | 1600 | 1067 |
1100 | 44 | 1118.0 | 1676 | 1118 |
1150 | 46 | 1168.0 | 1753 | 1168 |
1200 | 48 | 1219.0 | 1829 | 1219 |
1300 | 52 | 1321.0 | 1981 | 1321 |
1400 | 56 | 1422.0 | 2134 | 1422 |
1500 | 60 | 1524.0 | 2286 | 1524 |
1600 | 64 | 1626.0 | 2438 | 1626 |
1700 | 68 | 1727.0 | 2591 | 1727 |
1800 | 72 | 1829.0 | 2743 | 1829 |
1900 | 76 | 1930.0 | 2896 | 1930 |
2000 | 80 | 2032.0 | 3048 | 2032 |
Notes:
1) Besides these, GB/T 10752 SH 3408 SH 3409 HG/T 21635 HG/ T 21631 SY/T 0510 DL/T 695 EN 10253 etc.are also applied.
2) The elbow with NPS over 80 shall be made subject to the sizes agreed by purchaser and manufacturer.
DN | NPS | Sch10 | Sch20 | Sch30 | STD | Sch40 | Sch60 | XS | Sch80 | Sch100 | Sch120 | Sch160 | XXS |
15 | 1/2 | 0.06 | - | 0.07 | 0.08 | 0.08 | - | 0.11 | 0.11 | - | - | 0.13 | 0.17 |
20 | 3/4 | 0.08 | - | 0.09 | 0.11 | 0.11 | - | 0.14 | 0.14 | - | - | 0.19 | 0.24 |
25 | 1 | 0.13 | - | 0.14 | 0.16 | 0.16 | - | 1.12 | 1.12 | - | - | 0.28 | 0.36 |
32 | 1 1/4 | 0.21 | - | 0.24 | 0.28 | 0.28 | - | 0.24 | 0.24 | - | - | 0.47 | 0.64 |
40 | 1 1/2 | 0.28 | - | 0.35 | 0.4 | 0.4 | - | 0.53 | 0.53 | - | - | 0.71 | 0.94 |
50 | 2 | 0.47 | - | 0.59 | 0.71 | 0.71 | - | 0.98 | 0.98 | - | - | 1.46 | 1.76 |
65 | 2 1/2 | 0.79 | - | 1.32 | 1.42 | 1.42 | - | 1.87 | 1.87 | - | - | 2.45 | 3.35 |
80 | 3 | 1.16 | - | 1.95 | 2.22 | 2.22 | - | 3.01 | 3.01 | - | - | 4.20 | 5.45 |
90 | 3 1/2 | 1.55 | - | 2.62 | 3.12 | 3.12 | - | 4.28 | 4.28 | - | - | - | - |
100 | 4 | 2.02 | - | 3.39 | 4.22 | 4.22 | - | 5.86 | 5.86 | - | 7.44 | 8.81 | 10.8 |
125 | 5 | 3.46 | - | - | 7.15 | 7.15 | - | 10.2 | 10.2 | - | 13.2 | 16.1 | 18.9 |
150 | 6 | 4.98 | - | - | 11.2 | 11.2 | - | 16.8 | 16.8 | - | 21.4 | 26.7 | 31.3 |
200 | 8 | 9.57 | 17.6 | 19.4 | 22.4 | 22.4 | 28.0 | 34.1 | 34.1 | 40 | 47.7 | 58.6 | 56.9 |
250 | 10 | 16.7 | 27.5 | 33.6 | 39.7 | 39.7 | 53.7 | 53.7 | 63.2 | 75.5 | 87.6 | 113 | 102 |
300 | 12 | 25.9 | 39.3 | 51.5 | 58.3 | 62.9 | 86 | 76.9 | 104 | 126 | 148 | 188 | 148 |
350 | 14 | 34.7 | 62.5 | 74.9 | 74.9 | 87.1 | 117 | 98.9 | 146 | 180 | 207 | 259 | - |
400 | 16 | 45.4 | 82.0 | 98.3 | 98.3 | 130 | 169 | 130 | 215 | 259 | 302 | 385 | - |
450 | 18 | 56.2 | 104 | 145 | 125 | 185 | 244 | 165 | 302 | 367 | 431 | 545 | - |
500 | 20 | 82.2 | 154 | 204 | 154 | 242 | 326 | 204 | 410 | 502 | 581 | 744 | - |
550 | 22 | 143 | 187 | 248 | 187 | - | 426 | 248 | 541 | 654 | 763 | 974 | - |
600 | 24 | 170 | 223 | 331 | 223 | 403 | 561 | 295 | 698 | 865 | 1011 | 1277 | - |
650 | 26 | 200 | 347 | - | 262 | - | - | 347 | - | - | - | - | - |
700 | 28 | 232 | 403 | 478 | 304 | - | - | 403 | - | - | - | - | - |
750 | 30 | 267 | 464 | 577 | 349 | - | - | 464 | - | - | - | - | - |
800 | 32 | 304 | 528 | 658 | 398 | 722 | - | 528 | - | - | - | - | - |
850 | 34 | 343 | 597 | 743 | 449 | 817 | - | 57 | - | - | - | - | - |
900 | 36 | 386 | 669 | 834 | 504 | 997 | - | 669 | - | - | - | - | - |
950 | 38 | - | - | - | 562 | - | - | 746 | - | - | - | - | - |
1000 | 40 | - | - | - | 623 | - | - | 828 | - | - | - | - | - |
1050 | 42 | - | - | - | 687 | - | - | 913 | - | - | - | - | - |
1100 | 44 | - | - | - | 754 | - | - | 1003 | - | - | - | - | - |
1150 | 46 | - | - | - | 825 | - | - | 1096 | - | - | - | - | - |
1200 | 48 | - | - | - | 898 | - | - | 1194 | - | - | - | - | - |
1300 | 52 | - | - | - | 1107 | - | - | - | - | - | - | - | - |
1400 | 56 | - | - | - | 1284 | - | - | - | - | - | - | - | - |
1500 | 60 | - | - | - | 1475 | - | - | - | - | - | - | - | - |
1600 | 64 | - | - | - | 1679 | - | - | - | - | - | - | - | - |
1700 | 68 | - | - | - | 1869 | - | - | - | - | - | - | - | - |
1800 | 72 | - | - | - | 2126 | - | - | - | - | - | - | - | - |
1900 | 76 | - | - | - | 2372 | - | - | - | - | - | - | - | - |
2000 | 80 | - | - | - | 2626 | - | - | - | - | - | - | - | - |
DN | NPS | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH160 | XXS |
25 | 1 | 0.069 | 0.11 | 0.11 | 0.14 | 0.14 | 0.18 | 0.24 | ||||
32 | 1 1/4 | 0.16 | 0.19 | 0.19 | 0.25 | 0.25 | 0.31 | 0.43 | ||||
40 | 1 1/2 | 0.23 | 0.27 | 0.27 | 0.36 | 0.36 | 0.48 | 0.63 | ||||
50 | 2 | 0.39 | 0.48 | 0.48 | 0.66 | 0.66 | 0.98 | 1.18 | ||||
65 | 2 1/2 | 0.89 | 0.95 | 0.95 | 1.26 | 1.26 | 1.65 | 2.26 | ||||
80 | 3 | 1.30 | 1.48 | 1.48 | 2.01 | 2.01 | 2.80 | 3.64 | ||||
90 | 3 1/2 | 1.76 | 2.09 | 2.09 | 2.87 | 2.87 | ||||||
100 | 4 | 2.28 | 2.83 | 2.83 | 3.93 | 3.93 | 4.99 | 5.91 | 7.23 | |||
125 | 5 | 4.78 | 4.78 | 6.80 | 6.80 | 8.84 | 10.08 | 12.6 | ||||
150 | 6 | 7.42 | 7.42 | 11.1 | 11.2 | 14.2 | 17.7 | 20.8 | ||||
200 | 8 | 11.7 | 12.9 | 14.9 | 14.9 | 18.6 | 22.7 | 22.7 | 26.6 | 31.7 | 39.0 | 37.9 |
250 | 10 | 18.3 | 22.4 | 26.5 | 26.5 | 35.8 | 42.1 | 42.1 | 50.3 | 58.4 | 75.6 | 68.1 |
300 | 12 | 26.2 | 34.4 | 38.9 | 42.0 | 57.4 | 69.6 | 69.6 | 84.3 | 98.5 | 126 | 98.5 |
350 | 14 | 41.8 | 50.0 | 50.0 | 58.2 | 78.0 | 97.3 | 97.3 | 120 | 138 | 173 | |
400 | 16 | 54.6 | 65.4 | 65.4 | 86.5 | 112 | 143 | 143 | 172 | 201 | 256 | |
450 | 18 | 69.3 | 96.6 | 83.0 | 123 | 162 | 201 | 201 | 245 | 287 | 363 | |
500 | 20 | 103 | 136 | 103 | 161 | 218 | 273 | 273 | 335 | 388 | 496 | |
550 | 22 | 125 | 165 | 125 | 284 | 361 | 361 | 436 | 509 | 649 | ||
600 | 24 | 149 | 221 | 149 | 269 | 374 | 466 | 466 | 577 | 675 | 852 | |
650 | 26 | 231 | 174 | |||||||||
700 | 28 | 269 | 334 | 203 | ||||||||
750 | 30 | 309 | 385 | 233 | ||||||||
800 | 32 | 352 | 439 | 265 | 482 | |||||||
850 | 34 | 398 | 496 | 300 | 545 | |||||||
900 | 36 | 446 | 555 | 336 | 664 | |||||||
950 | 38 | 374 | ||||||||||
1000 | 40 | 415 | ||||||||||
1050 | 42 | 458 | ||||||||||
1100 | 44 | 503 | ||||||||||
1150 | 46 | 550 | ||||||||||
1200 | 48 | 599 | ||||||||||
1300 | 52 | 738 | ||||||||||
1400 | 56 | 854 | ||||||||||
1500 | 60 | 983 | ||||||||||
1600 | 64 | 1116 | ||||||||||
1700 | 68 | 1264 | ||||||||||
1800 | 72 | 1418 | ||||||||||
1900 | 76 | 1581 | ||||||||||
2000 | 80 | 1751 |
ANSI/ASME B16.9 90 degree elbow is one type of steel pipe fittings which used to change direction of the pipeline.It can be divided into long radius (LR) and short radius (SR). We provide carbon steel, stainless steel and aluminum elbow in both seamless and welded for the overseas projects.
ASME B16.9 butt weld elbow is the most common used fittings in the industries by various degrees of 22.5, 45, 90 and 180. Besides, they have good yield strength and tensile strength. Usually the butt weld tee and reducer have function of reducing the sizes in the pipe system, while we can produce the special reducing elbow to connect pipes with different sizes.
Carbon Steel 90 degree elbow 4”SCH80 A234 WPB ASME B16.9
Before delivery, we will test the Angle, wall thickness and size of the elbow to ensure that the product is qualified.
Butt weld elbow products less than 8”will be neatly arranged inside the wooden box, larger than 8” will be plastic packaging and then put on the wooden base.
ASME B16.9 Standard covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought buttwelding fittings in sizes NPS 1/2 to NPS 48 (DN 15 to DN 1200). It covers fittings of any producible wall thickness. This standard does not cover low pressure corrosion resistant buttwelding fittings. See MSS SP-43, Wrought Stainless Steel Butt-Welding Fittings.
Buttwelding Fittings are used in a piping system to change direction or function of media, to branch off, reduce pipe size or attach auxiliary equipment. They are availbale in multiple types as elbow, tee, cap, reducer, stub end and oelt, that produced in cold and hot forming based on ASTM A403 and ASTM A234 specification.
Size Range | 1/2" - 80" / DN15 - 2000 |
Thickness Schedule | SCH 10, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS |
Standard | ANSI / ASME B16.9, MSS SP 43, JIS B2311/2312/2313, EN10253 |
Carbon Steel Grades | ASTM A234 WPB/WPC, A420 WPL6, A860 WPHY 42 / 46 / 56 / 60 / 65 |
Alloy Steel Grades | ASTM A234 WP11 / WP12 / WP5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5 |
Stainless Steel Grades | ASTM A403 WP304/304L/304H, 316/316L, 310S, 317, 347, 904L |
Duplex Stainless Steel Grades | ASTM A815 S32205, S31803, 32750, 32760 |
DN | NPS | OD | A | |
LR | SR | |||
15 | 1/2 | 21.3 | 38 | 25 |
20 | 3/4 | 26.7 | 38 | 25 |
25 | 1 | 33.4 | 38 | 25 |
32 | 1-1/4 | 42.2 | 48 | 32 |
40 | 1-1/2 | 48.3 | 57 | 38 |
50 | 2 | 60.3 | 76 | 51 |
65 | 2-1/2 | 73.0 | 95 | 64 |
80 | 3 | 88.9 | 114 | 76 |
90 | 3-1/2 | 101.6 | 133 | 89 |
100 | 4 | 114.3 | 152 | 102 |
125 | 5 | 141.3 | 190 | 127 |
150 | 6 | 168.3 | 229 | 152 |
200 | 8 | 219.1 | 305 | 203 |
250 | 10 | 273.0 | 381 | 254 |
300 | 12 | 323.8 | 457 | 305 |
350 | 14 | 355.6 | 533 | 356 |
550 | 22 | 559.0 | 838 | 559 |
600 | 24 | 610.0 | 914 | 610 |
650 | 26 | 660.0 | 991 | 660 |
700 | 28 | 711.0 | 1067 | 711 |
750 | 30 | 762.0 | 1143 | 762 |
800 | 32 | 813.0 | 1219 | 813 |
850 | 34 | 864.0 | 1295 | 864 |
900 | 36 | 914.0 | 1372 | 914 |
950 | 38 | 965.0 | 1447 | 965 |
1000 | 40 | 1016.0 | 1524 | 1016 |
1050 | 42 | 1067.0 | 1600 | 1067 |
1100 | 44 | 1118.0 | 1676 | 1118 |
1150 | 46 | 1168.0 | 1753 | 1168 |
1200 | 48 | 1219.0 | 1829 | 1219 |
1300 | 52 | 1321.0 | 1981 | 1321 |
1400 | 56 | 1422.0 | 2134 | 1422 |
1500 | 60 | 1524.0 | 2286 | 1524 |
1600 | 64 | 1626.0 | 2438 | 1626 |
1700 | 68 | 1727.0 | 2591 | 1727 |
1800 | 72 | 1829.0 | 2743 | 1829 |
1900 | 76 | 1930.0 | 2896 | 1930 |
2000 | 80 | 2032.0 | 3048 | 2032 |
Notes:
1) Besides these, GB/T 10752 SH 3408 SH 3409 HG/T 21635 HG/ T 21631 SY/T 0510 DL/T 695 EN 10253 etc.are also applied.
2) The elbow with NPS over 80 shall be made subject to the sizes agreed by purchaser and manufacturer.
DN | NPS | Sch10 | Sch20 | Sch30 | STD | Sch40 | Sch60 | XS | Sch80 | Sch100 | Sch120 | Sch160 | XXS |
15 | 1/2 | 0.06 | - | 0.07 | 0.08 | 0.08 | - | 0.11 | 0.11 | - | - | 0.13 | 0.17 |
20 | 3/4 | 0.08 | - | 0.09 | 0.11 | 0.11 | - | 0.14 | 0.14 | - | - | 0.19 | 0.24 |
25 | 1 | 0.13 | - | 0.14 | 0.16 | 0.16 | - | 1.12 | 1.12 | - | - | 0.28 | 0.36 |
32 | 1 1/4 | 0.21 | - | 0.24 | 0.28 | 0.28 | - | 0.24 | 0.24 | - | - | 0.47 | 0.64 |
40 | 1 1/2 | 0.28 | - | 0.35 | 0.4 | 0.4 | - | 0.53 | 0.53 | - | - | 0.71 | 0.94 |
50 | 2 | 0.47 | - | 0.59 | 0.71 | 0.71 | - | 0.98 | 0.98 | - | - | 1.46 | 1.76 |
65 | 2 1/2 | 0.79 | - | 1.32 | 1.42 | 1.42 | - | 1.87 | 1.87 | - | - | 2.45 | 3.35 |
80 | 3 | 1.16 | - | 1.95 | 2.22 | 2.22 | - | 3.01 | 3.01 | - | - | 4.20 | 5.45 |
90 | 3 1/2 | 1.55 | - | 2.62 | 3.12 | 3.12 | - | 4.28 | 4.28 | - | - | - | - |
100 | 4 | 2.02 | - | 3.39 | 4.22 | 4.22 | - | 5.86 | 5.86 | - | 7.44 | 8.81 | 10.8 |
125 | 5 | 3.46 | - | - | 7.15 | 7.15 | - | 10.2 | 10.2 | - | 13.2 | 16.1 | 18.9 |
150 | 6 | 4.98 | - | - | 11.2 | 11.2 | - | 16.8 | 16.8 | - | 21.4 | 26.7 | 31.3 |
200 | 8 | 9.57 | 17.6 | 19.4 | 22.4 | 22.4 | 28.0 | 34.1 | 34.1 | 40 | 47.7 | 58.6 | 56.9 |
250 | 10 | 16.7 | 27.5 | 33.6 | 39.7 | 39.7 | 53.7 | 53.7 | 63.2 | 75.5 | 87.6 | 113 | 102 |
300 | 12 | 25.9 | 39.3 | 51.5 | 58.3 | 62.9 | 86 | 76.9 | 104 | 126 | 148 | 188 | 148 |
350 | 14 | 34.7 | 62.5 | 74.9 | 74.9 | 87.1 | 117 | 98.9 | 146 | 180 | 207 | 259 | - |
400 | 16 | 45.4 | 82.0 | 98.3 | 98.3 | 130 | 169 | 130 | 215 | 259 | 302 | 385 | - |
450 | 18 | 56.2 | 104 | 145 | 125 | 185 | 244 | 165 | 302 | 367 | 431 | 545 | - |
500 | 20 | 82.2 | 154 | 204 | 154 | 242 | 326 | 204 | 410 | 502 | 581 | 744 | - |
550 | 22 | 143 | 187 | 248 | 187 | - | 426 | 248 | 541 | 654 | 763 | 974 | - |
600 | 24 | 170 | 223 | 331 | 223 | 403 | 561 | 295 | 698 | 865 | 1011 | 1277 | - |
650 | 26 | 200 | 347 | - | 262 | - | - | 347 | - | - | - | - | - |
700 | 28 | 232 | 403 | 478 | 304 | - | - | 403 | - | - | - | - | - |
750 | 30 | 267 | 464 | 577 | 349 | - | - | 464 | - | - | - | - | - |
800 | 32 | 304 | 528 | 658 | 398 | 722 | - | 528 | - | - | - | - | - |
850 | 34 | 343 | 597 | 743 | 449 | 817 | - | 57 | - | - | - | - | - |
900 | 36 | 386 | 669 | 834 | 504 | 997 | - | 669 | - | - | - | - | - |
950 | 38 | - | - | - | 562 | - | - | 746 | - | - | - | - | - |
1000 | 40 | - | - | - | 623 | - | - | 828 | - | - | - | - | - |
1050 | 42 | - | - | - | 687 | - | - | 913 | - | - | - | - | - |
1100 | 44 | - | - | - | 754 | - | - | 1003 | - | - | - | - | - |
1150 | 46 | - | - | - | 825 | - | - | 1096 | - | - | - | - | - |
1200 | 48 | - | - | - | 898 | - | - | 1194 | - | - | - | - | - |
1300 | 52 | - | - | - | 1107 | - | - | - | - | - | - | - | - |
1400 | 56 | - | - | - | 1284 | - | - | - | - | - | - | - | - |
1500 | 60 | - | - | - | 1475 | - | - | - | - | - | - | - | - |
1600 | 64 | - | - | - | 1679 | - | - | - | - | - | - | - | - |
1700 | 68 | - | - | - | 1869 | - | - | - | - | - | - | - | - |
1800 | 72 | - | - | - | 2126 | - | - | - | - | - | - | - | - |
1900 | 76 | - | - | - | 2372 | - | - | - | - | - | - | - | - |
2000 | 80 | - | - | - | 2626 | - | - | - | - | - | - | - | - |
DN | NPS | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH160 | XXS |
25 | 1 | 0.069 | 0.11 | 0.11 | 0.14 | 0.14 | 0.18 | 0.24 | ||||
32 | 1 1/4 | 0.16 | 0.19 | 0.19 | 0.25 | 0.25 | 0.31 | 0.43 | ||||
40 | 1 1/2 | 0.23 | 0.27 | 0.27 | 0.36 | 0.36 | 0.48 | 0.63 | ||||
50 | 2 | 0.39 | 0.48 | 0.48 | 0.66 | 0.66 | 0.98 | 1.18 | ||||
65 | 2 1/2 | 0.89 | 0.95 | 0.95 | 1.26 | 1.26 | 1.65 | 2.26 | ||||
80 | 3 | 1.30 | 1.48 | 1.48 | 2.01 | 2.01 | 2.80 | 3.64 | ||||
90 | 3 1/2 | 1.76 | 2.09 | 2.09 | 2.87 | 2.87 | ||||||
100 | 4 | 2.28 | 2.83 | 2.83 | 3.93 | 3.93 | 4.99 | 5.91 | 7.23 | |||
125 | 5 | 4.78 | 4.78 | 6.80 | 6.80 | 8.84 | 10.08 | 12.6 | ||||
150 | 6 | 7.42 | 7.42 | 11.1 | 11.2 | 14.2 | 17.7 | 20.8 | ||||
200 | 8 | 11.7 | 12.9 | 14.9 | 14.9 | 18.6 | 22.7 | 22.7 | 26.6 | 31.7 | 39.0 | 37.9 |
250 | 10 | 18.3 | 22.4 | 26.5 | 26.5 | 35.8 | 42.1 | 42.1 | 50.3 | 58.4 | 75.6 | 68.1 |
300 | 12 | 26.2 | 34.4 | 38.9 | 42.0 | 57.4 | 69.6 | 69.6 | 84.3 | 98.5 | 126 | 98.5 |
350 | 14 | 41.8 | 50.0 | 50.0 | 58.2 | 78.0 | 97.3 | 97.3 | 120 | 138 | 173 | |
400 | 16 | 54.6 | 65.4 | 65.4 | 86.5 | 112 | 143 | 143 | 172 | 201 | 256 | |
450 | 18 | 69.3 | 96.6 | 83.0 | 123 | 162 | 201 | 201 | 245 | 287 | 363 | |
500 | 20 | 103 | 136 | 103 | 161 | 218 | 273 | 273 | 335 | 388 | 496 | |
550 | 22 | 125 | 165 | 125 | 284 | 361 | 361 | 436 | 509 | 649 | ||
600 | 24 | 149 | 221 | 149 | 269 | 374 | 466 | 466 | 577 | 675 | 852 | |
650 | 26 | 231 | 174 | |||||||||
700 | 28 | 269 | 334 | 203 | ||||||||
750 | 30 | 309 | 385 | 233 | ||||||||
800 | 32 | 352 | 439 | 265 | 482 | |||||||
850 | 34 | 398 | 496 | 300 | 545 | |||||||
900 | 36 | 446 | 555 | 336 | 664 | |||||||
950 | 38 | 374 | ||||||||||
1000 | 40 | 415 | ||||||||||
1050 | 42 | 458 | ||||||||||
1100 | 44 | 503 | ||||||||||
1150 | 46 | 550 | ||||||||||
1200 | 48 | 599 | ||||||||||
1300 | 52 | 738 | ||||||||||
1400 | 56 | 854 | ||||||||||
1500 | 60 | 983 | ||||||||||
1600 | 64 | 1116 | ||||||||||
1700 | 68 | 1264 | ||||||||||
1800 | 72 | 1418 | ||||||||||
1900 | 76 | 1581 | ||||||||||
2000 | 80 | 1751 |
