Shape Type: Equal and Reducing
Size Range: 1/2" - 80" / DN15 - 2000
Thickness Schedule: SCH 10 - SCH 160, XXS
Standard: ANSI / ASME B16.9
| Quantity: | |
|---|---|
ASME B16.9 Steel Pipe Cross Fittings are designed and manufactured according to international standard of ASME B16.9. The common used material are carbon steel and stainless steel. It may have one inlet and three outlets or three inlets and one outlet.
The steel pipe cross dimension and specification is designed as standard of ANSI/ASME B16.9, it can be equal or redcuing. It has same function as butt weld tee that provide branch for connection, but less common used because the cost is higher and manufacture technology.

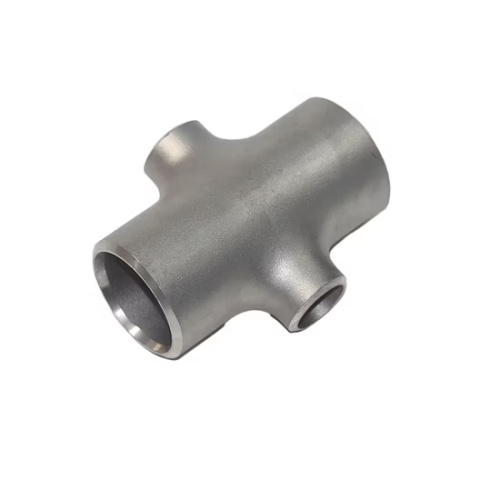

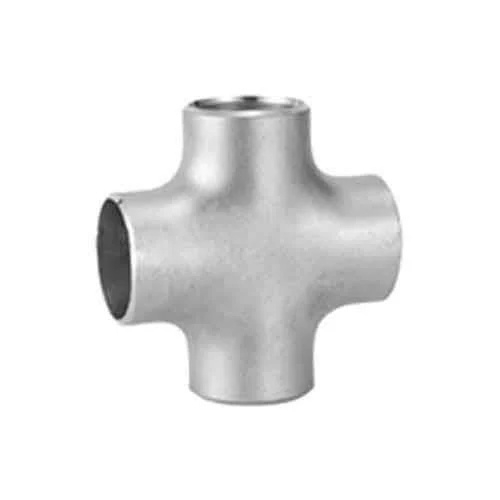

Steel Pipe Equal Cross Steel Pipe Reducing Cross
Buttwelding Fittings are used in a piping system to change direction or function of media, to branch off, reduce pipe size or attach auxiliary equipment. They are availbale in multiple types as elbow, tee, cap, reducer, stub end and oelt, that produced in cold and hot forming based on ASTM A403 and ASTM A234 specification.
ASTM A403 is representative standard speciciation for stainless steel buttweld fittings, the common used grades are SS304, SS316, SS321 and SS310S. It is the abbreviation of stainless acid-resistant steel, and resistant to weak corrosive media such as air, steam, water or others.
ASTM A234 WPB is common used grade in carbon steel material, and matched with ASTM A106B / API 5L B / A53B pipes and ASTM A105 flanges in the pipeline system. It has good properties with lower cost.
Specification of ASME B16.9 Cross Pipe Fittings
| Shape Type | Equal and Reducing Cross Tee |
| Size Range | 1/2” - 80” / DN15 - 2000 |
| Thickness Schedule | SCH 10, SCH 40, SCH 80, SCH 160, XXS |
| Carbon Steel Material | ASTM A234 WPB/WPC, ASTM A420 WPL6, A860 WPHY 42 / 46 / 56 / 60 / 65 |
| Alloy Steel Material | ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-515CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5 |
| Stainless Steel Material | ASTM A403 WP304/304L/304H, 316/316L, 310S, 317, 347, 904L, A815 S32205, S31803, 32750, 32760 |
ASME B16.9 Steel Pipe Cross Fittings Drawing & Dimensions
| Nominal Size | Outside Diameter at Bevel | Center to End | ||
| DN | NPS | OD1×OD2 | C | M |
| 15 | 1/2 | 21.3 | 25 | 25 |
| 20 | 3/4 | 26.7 | 29 | 29 |
| 25 | 1 | 33.4 | 38 | 38 |
| 32 | 11/4 | 42.2 | 48 | 48 |
| 40 | 11/2 | 48.3 | 57 | 57 |
| 50 | 2 | 60.3 | 64 | 64 |
| 65 | 21/2 | 73.0 | 76 | 76 |
| 80 | 3 | 88.9 | 86 | 86 |
| 90 | 31/2 | 101.6 | 95 | 95 |
| 100 | 4 | 114.3 | 105 | 105 |
| 125 | 5 | 141.3 | 124 | 124 |
| 150 | 6 | 168.3 | 143 | 143 |
| 200 | 8 | 219.1 | 178 | 178 |
| 250 | 10 | 273.0 | 216 | 216 |
| 300 | 12 | 323.8 | 254 | 254 |
| 350 | 14 | 355.6 | 279 | 279 |
| 400 | 16 | 406.4 | 305 | 305 |
| 450 | 18 | 547.0 | 343 | 343 |
| 500 | 20 | 508.0 | 381 | 381 |
| 550 | 22 | 559.0 | 419 | 419 |
| 600 | 24 | 610.0 | 432 | 432 |
| 650 | 26 | 660.0 | 495 | 495 |
| 700 | 28 | 711.0 | 521 | 521 |
| 750 | 30 | 762.0 | 559 | 559 |
| 800 | 32 | 813.0 | 597 | 597 |
| 850 | 34 | 864.0 | 635 | 635 |
| 900 | 36 | 914.0 | 673 | 673 |
| 950 | 38 | 965.0 | 711 | 711 |
| 1000 | 40 | 1016.0 | 749 | 749 |
| 1050 | 42 | 1067.0 | 762 | 711 |
| 1100 | 44 | 1118.0 | 813 | 762 |
| 1150 | 46 | 1168.0 | 851 | 800 |
| 1200 | 48 | 1219.0 | 889 | 838 |
| 1300 | 52 | 1321.0 | 965 | 914 |
| 1400 | 56 | 1422.0 | 1041 | 965 |
| 1500 | 60 | 1524.0 | 1118 | 1016 |
| 1600 | 64 | 1626.0 | 1194 | 1092 |
| 1700 | 68 | 1727.0 | 1270 | 1168 |
| 1800 | 72 | 1829.0 | 1320 | 1245 |
| 1900 | 76 | 1930.0 | 1422 | 1320 |
| 2000 | 80 | 2032.0 | 1499 | 1397 |
Notes
1) Besides the above mentioned standards, the standards of GB/T 10752 SH 3408 SH 3409 HG/T 21635 HG/T 21631 SY/T 0510 DL/T 695 EN 10253 etc.are also applied.
2) For the straight crosses with DN≥650(NPS 26)and the reducing crosses with DN≥350(NPS 14 , the outlet sizes are recommended to use (that mean the other sizes may be applied).
3) For the crosses with the sizes larger than that listed in the above table,they will be supplied subject to the sized agreed by purchaser and manufacturer or according to manufacturer's size.
