Shape: Equal and Reducing Tee
Size Range: 1/8” – 4” / DN6 - DN100
Pressure Rating: Class 2000 lbs, 3000 lbs, 6000 lbs
| Quantity: | |
|---|---|

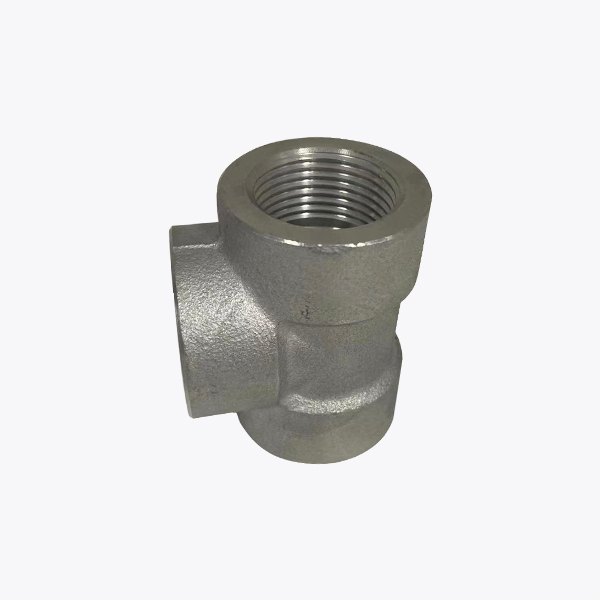

ASME B16.11 forged threaded tee fitting can be divided into equal and reducing tee, both of them are in three pressure ratings of Class 2000, 3000 and 6000. They are mainly used for small pipe size whose nominal diameter is NPS 2 and smaller. It is forging manufacturing process and has three holes that named as one inlet and two outlests or two inlets and one outlet.ASME B16.11 threaded tees are suitable for piping systems to transport two phase fluid mixtures.
Forged steel pipe fittings are produced according to standards of ASME B16.11, BS3799, MSS-SP-79 / 83 / 95 / 97. These threaded fittings and socket weld fittings are made by ASTM 105 and ASTM A182.
| Type | Equal Tee and Reducing Tee |
| Size | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" |
| Class | 2000, 3000, 6000, 2M, 3M, 6M |
| Grade | ASTM A105, A350 LF2, A182 F304 / F316 / F51, F53, F11, F22 |
Wrapping PVC on the threaded tee fitting.
Packing stainless steel threaded tee into carton.
Marking and recording the list for each carton.
Putting all cartons into wooden box in line.
Sticking shipping marking on the wooden box.
| DN | NPS | A | H | ||||
| 2000LB | 3000LB | 6000LB | 2000LB | 3000LB | 6000LB | ||
| 6 | 1/8 | 21 | 21 | 25 | 22 | 22 | 25 |
| 8 | 1/4 | 21 | 25 | 28 | 22 | 25 | 33 |
| 10 | 3/8 | 25 | 28 | 33 | 25 | 33 | 38 |
| 15 | 1/2 | 28 | 33 | 38 | 33 | 38 | 46 |
| 20 | 3/4 | 33 | 38 | 44 | 38 | 46 | 56 |
| 25 | 1 | 38 | 44 | 51 | 46 | 56 | 62 |
| 32 | 1 1/4 | 44 | 51 | 60 | 56 | 62 | 75 |
| 40 | 1 1/2 | 51 | 60 | 64 | 62 | 75 | 84 |
| 50 | 2 | 60 | 64 | 83 | 75 | 84 | 102 |
| 65 | 2 1/2 | 76 | 83 | 95 | 92 | 102 | 121 |
| 80 | 3 | 86 | 95 | 106 | 109 | 121 | 146 |
| 100 | 4 | 106 | 114 | 114 | 146 | 152 | 152 |
| NOMINAL SIZE | THREADED PIPE TEE WEIGHT | |||
| DN | NPS | 2000 | 3000 | 6000 |
| 6 | 1/8 | 0.13 | 0.22 | 0.35 |
| 8 | 1/4 | 0.13 | 0.22 | 0.57 |
| 10 | 3/8 | 0.16 | 0.40 | 0.66 |
| 15 | 1/2 | 0.35 | 0.58 | 1.15 |
| 20 | 3/4 | 0.45 | 0.90 | 1.80 |
| 25 | 1 | 0.66 | 1.46 | 2.25 |
| 32 | 1-1/4 | 1.00 | 1.90 | 3.95 |
| 40 | 1-1/2 | 1.40 | 3.40 | 4.87 |
| 50 | 2 | 2.20 | 3.80 | 8.89 |
| 65 | 2-1/2 | 4.20 | 7.20 | 12.8 |
| 80 | 3 | 6.15 | 10.7 | 21.6 |
| 100 | 4 | 14.7 | 17.9 | 29.5 |
BSPP: British Standard Pipe Parallel
BSPT: British Standard Pipe Tapered
NPT: American National Standard Pipe Tpaer
High Quality
Fast Delivery
Reasonable Price
ISO 9001 Certified
Photo in Record
Sample for Free
Strong Package
Strictly Inspection
Professional Service
