Shape: Hex Head, Square Head and Round Head.
Thread Type: NPT, PT, BSPP, BSPT, PF
Size Range: 1/8" - 4" / DN6 - DN100
| Quantity: | |
|---|---|

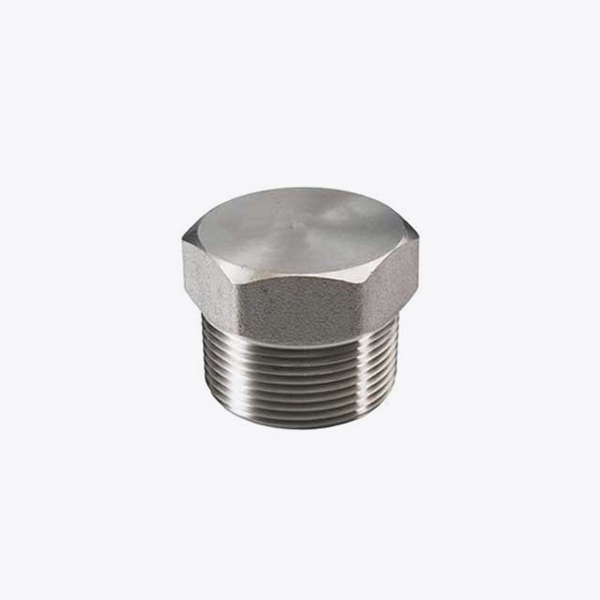

There are 3 types of ASME/ANSI B16.11 threaded plug that hex head, round head and square head.Pipe plugs are used as end caps for fractional pipes in many industries. These pipe plugs are available in carbon steel & stainless steel and used by inserting them into the end of the pipe to block the flow.
Threaded plug function is the same as the function of the ASME B16.9 Steel Pipe Cap and ASME B16.11Socket Weld Cap.
All forged ASME/ANSI B16.11 threaded plugs have two parts that one male thread for connecting and one head for sealing off. It is economical solution to closing off comparing with caps and blind. And easy to tighten and loosen.
Since these are small and forging, we will pack them in suitable carton and wooden box for sea or air shipping. Each product and package has marking or list.
Threaded pipe fittings come in a variety of sizes and shapes and can provide an effective seal for pipes transporting liquids, gas and steam. They twist onto pipe using various male and female thread connections including NPT or BSP.
| Size Range | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1-1/2", 2", 2-1/2", 3", 4" |
| Pressure Rating | Class 3000/6000lbs |
| Carbon Steel Grades | ASTM A105 / A105N, ASTM A350 LF2/LF3 |
| Alloy Steel Grades | ASTM A182 F11 / F12 / F5 / F9 / F91 / F92 / F22 |
| Stainless Steel Grades | ASTM A182 F304/304L/304H, F316/316L, F310S, F317, F347, F904L,F321 |
| Duplex Stainless Steel Grades | ASTM A182 F51, F53, F44 |
| Nominal Size | Length | Square Height | Width Height | Head Diameter | Length | Hex Height | Hex Height | Hex Width Flats | |
DN | NPS | Amin | Bmin | Cmin | Enom | Dmin | Hmin | Gmin | Fnom |
| 6 | 1/8 | 10 | 6 | 7 | 10 | 35 | 6 | - | 11 |
| 8 | 1/4 | 11 | 6 | 10 | 14 | 41 | 6 | 3 | 16 |
| 10 | 3/8 | 13 | 8 | 11 | 18 | 41 | 8 | 4 | 18 |
| 15 | 1/2 | 14 | 10 | 14 | 21 | 44 | 8 | 5 | 22 |
| 20 | 3/4 | 16 | 11 | 16 | 27 | 44 | 10 | 6 | 27 |
| 25 | 1 | 19 | 13 | 21 | 33 | 51 | 10 | 6 | 36 |
| 32 | 11/4 | 21 | 14 | 24 | 43 | 51 | 14 | 7 | 46 |
| 40 | 11/2 | 21 | 16 | 28 | 48 | 51 | 16 | 8 | 50 |
| 50 | 2 | 22 | 18 | 32 | 60 | 64 | 18 | 9 | 65 |
| 65 | 21/2 | 27 | 19 | 36 | 73 | 70 | 19 | 10 | 75 |
| 80 | 3 | 28 | 21 | 41 | 89 | 70 | 21 | 10 | 90 |
| 100 | 4 | 32 | 25 | 65 | 114 | 76 | 25 | 13 | 115 |
| DN | NPS | SQUARE HEAD PLUG | HEX HEAR PLUG | ROUND HEAD PLUG |
| 6 | 1/8 | 0.01 | 0.02 | 0.02 |
| 8 | 1/4 | 0.02 | 0.03 | 0.05 |
| 10 | 3/8 | 0.03 | 0.05 | 0.08 |
| 15 | 1/2 | 0.06 | 0.08 | 0.08 |
| 20 | 3/4 | 0.10 | 0.14 | 0.20 |
| 25 | 1 | 0.18 | 0.25 | 0.34 |
| 32 | 1-1/4 | 0.30 | 0.49 | 0.59 |
| 40 | 1-1/2 | 0.41 | 0.65 | 0.73 |
| 50 | 2 | 0.67 | 1.16 | 1.44 |
| 65 | 2-1/2 | 1.11 | 1.83 | 2.36 |
| 80 | 3 | 1.69 | 2.92 | 3.5 |
| 100 | 4 | 3.48 | 5.50 | 6.08 |
There are 3 types of ASME/ANSI B16.11 threaded plug that hex head, round head and square head.Pipe plugs are used as end caps for fractional pipes in many industries. These pipe plugs are available in carbon steel & stainless steel and used by inserting them into the end of the pipe to block the flow.
Threaded plug function is the same as the function of the ASME B16.9 Steel Pipe Cap and ASME B16.11Socket Weld Cap.
All forged ASME/ANSI B16.11 threaded plugs have two parts that one male thread for connecting and one head for sealing off. It is economical solution to closing off comparing with caps and blind. And easy to tighten and loosen.
Since these are small and forging, we will pack them in suitable carton and wooden box for sea or air shipping. Each product and package has marking or list.
Threaded pipe fittings come in a variety of sizes and shapes and can provide an effective seal for pipes transporting liquids, gas and steam. They twist onto pipe using various male and female thread connections including NPT or BSP.
| Size Range | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1-1/2", 2", 2-1/2", 3", 4" |
| Pressure Rating | Class 3000/6000lbs |
| Carbon Steel Grades | ASTM A105 / A105N, ASTM A350 LF2/LF3 |
| Alloy Steel Grades | ASTM A182 F11 / F12 / F5 / F9 / F91 / F92 / F22 |
| Stainless Steel Grades | ASTM A182 F304/304L/304H, F316/316L, F310S, F317, F347, F904L,F321 |
| Duplex Stainless Steel Grades | ASTM A182 F51, F53, F44 |
| Nominal Size | Length | Square Height | Width Height | Head Diameter | Length | Hex Height | Hex Height | Hex Width Flats | |
DN | NPS | Amin | Bmin | Cmin | Enom | Dmin | Hmin | Gmin | Fnom |
| 6 | 1/8 | 10 | 6 | 7 | 10 | 35 | 6 | - | 11 |
| 8 | 1/4 | 11 | 6 | 10 | 14 | 41 | 6 | 3 | 16 |
| 10 | 3/8 | 13 | 8 | 11 | 18 | 41 | 8 | 4 | 18 |
| 15 | 1/2 | 14 | 10 | 14 | 21 | 44 | 8 | 5 | 22 |
| 20 | 3/4 | 16 | 11 | 16 | 27 | 44 | 10 | 6 | 27 |
| 25 | 1 | 19 | 13 | 21 | 33 | 51 | 10 | 6 | 36 |
| 32 | 11/4 | 21 | 14 | 24 | 43 | 51 | 14 | 7 | 46 |
| 40 | 11/2 | 21 | 16 | 28 | 48 | 51 | 16 | 8 | 50 |
| 50 | 2 | 22 | 18 | 32 | 60 | 64 | 18 | 9 | 65 |
| 65 | 21/2 | 27 | 19 | 36 | 73 | 70 | 19 | 10 | 75 |
| 80 | 3 | 28 | 21 | 41 | 89 | 70 | 21 | 10 | 90 |
| 100 | 4 | 32 | 25 | 65 | 114 | 76 | 25 | 13 | 115 |
| DN | NPS | SQUARE HEAD PLUG | HEX HEAR PLUG | ROUND HEAD PLUG |
| 6 | 1/8 | 0.01 | 0.02 | 0.02 |
| 8 | 1/4 | 0.02 | 0.03 | 0.05 |
| 10 | 3/8 | 0.03 | 0.05 | 0.08 |
| 15 | 1/2 | 0.06 | 0.08 | 0.08 |
| 20 | 3/4 | 0.10 | 0.14 | 0.20 |
| 25 | 1 | 0.18 | 0.25 | 0.34 |
| 32 | 1-1/4 | 0.30 | 0.49 | 0.59 |
| 40 | 1-1/2 | 0.41 | 0.65 | 0.73 |
| 50 | 2 | 0.67 | 1.16 | 1.44 |
| 65 | 2-1/2 | 1.11 | 1.83 | 2.36 |
| 80 | 3 | 1.69 | 2.92 | 3.5 |
| 100 | 4 | 3.48 | 5.50 | 6.08 |
