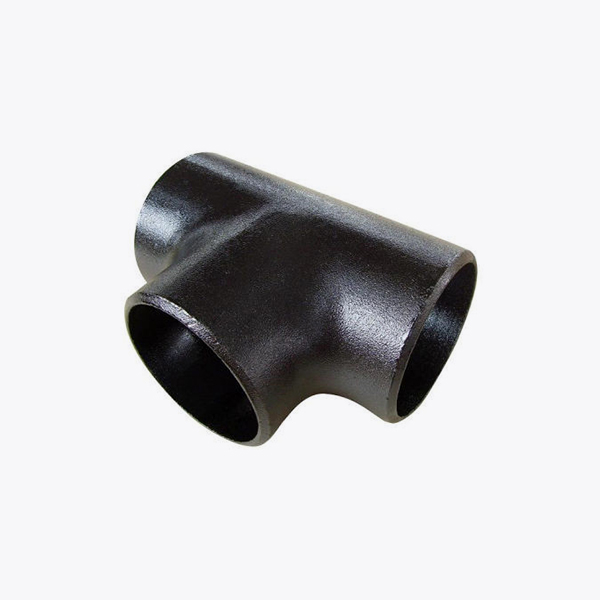

ASME B16.9 steel pipe tee is T-shaped or Y-shaped with three outlets in same or different size and named as equal tee and reducing tee, the connecting ends are in same sizes, it is equal tee, while brach size is smaller than run pipe size, we call it as reducing tee. Buttwelding tee is widely used in petroleum, chemical industry, power plant and other industrial pipelines. The common used material are carbon steel A234 WPB and stainless steel 316.

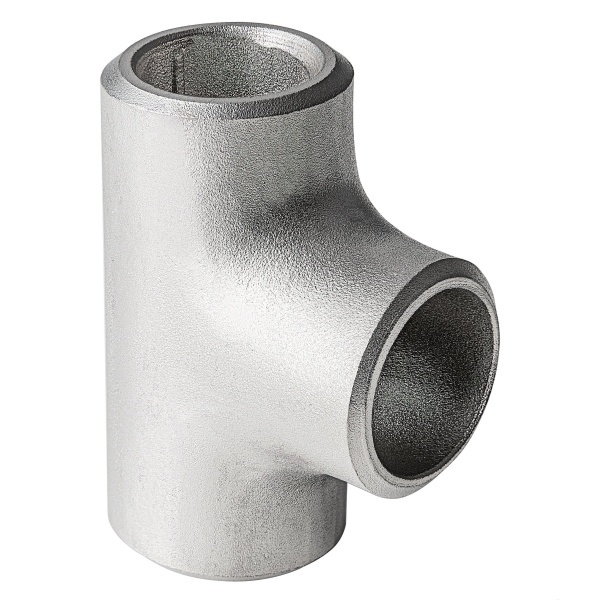

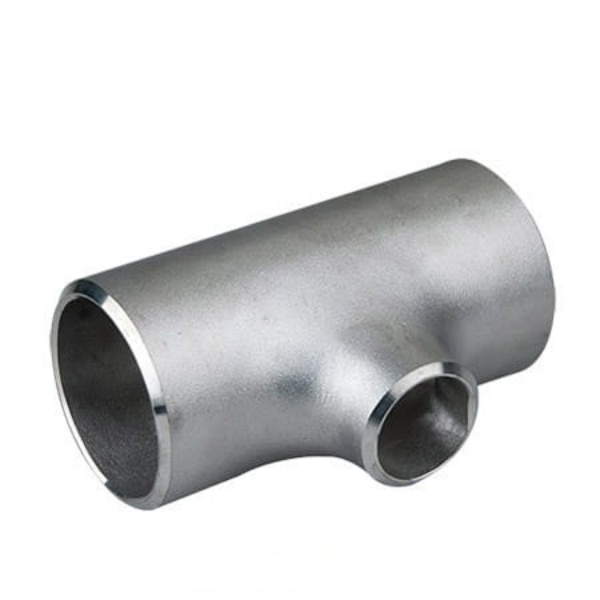

equal tee reducing tee
Table Of Content |

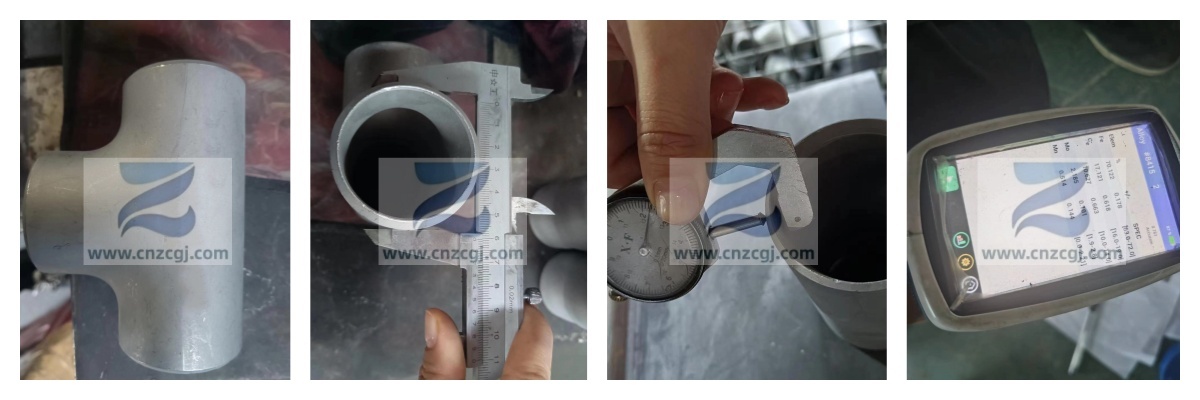

We will measure the wall thickness and length of tee, in order to ensure the quality of products。
Tee products less than 8”will be neatly arranged inside the wooden box, larger than 8” will be plastic packaging and then put on the wooden base.
ASME B16.9 standard covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought buttwelding fittings in sizes NPS 1 ∕ 2 through NPS 48 (DN 15 through DN 1200). It covers fittings of any producible wall thickness.
Buttwelding fittings are used in a piping system to change direction or function of media, to branch off, reduce pipe size or attach auxiliary equipment. They are availbale in multiple types as elbow, tee, cap, reducer, stub end and oelt, that produced in cold and hot forming based on ASTM A403 and ASTM A234 specification.
304 & 316 stainles steel buttweld fittings are designed in ASTM A403 WP Grades based on ASME or MSS standard dimensions. They could be seamless or welded type.
ASTM A403 specification covers shapes of stainless steel pipe elbow, tee, cross, reducer and cap. They have different function in the piping system and widely used to weld on the pipe or fittings.
ASTM A234 WPB is the most common and representive grade in carbon steel pipe fittings. We manufacture them in types of semaless and welded according to standard of ASME B16.9 & MSS-SP-43. These buttwelding fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures.
| Shape Type | Equal Tee and Reducing Tee |
| Size Range | 1/2" - 80" / DN15 - 2000 |
| Thickness Schedule | SCH 10 - SCH 160, XXS |
| Standard | GB/T12459, GB/T13401, HG/T21635/21631, SH3408/3409， ANSI / ASME B16.9, MSS SP 43, JIS B2311/2312/2313, DIN2605/2615/2616/2617, EN10253 |
| Carbon Steel | Q235, 20#, 35#, 45#, 20G,Q345B, 16Mn, ASTM A234 WPB/WPC, A420 WPL6 |
| API 5L Grades | ASTM A860 WPHY 42 / 46 / 56 / 60 / 65 |
| Alloy Steel | ASTM A234 WP11 / WP12 / WP 5 / WP9 / WP91 / WP92,15CrMoG, 12Cr1MoVG, 12Cr5Mo, 1Cr5Mo, Cr9Mo, 10CrMo910, 12CrMo4-5 |
| Stainless Steel | ASTM A403 WP304/304L/304H, 316/316L, 310S, 317,347, 904L, A815 S32205, S31803, 32750, 32760 |
| Nominal Size | Outside Diameter at Bevel | Center to End | ||
| DN | NPS | OD1×OD2 | C | M |
| 15 | 1/2 | 21.3 | 25 | 25 |
| 20 | 3/4 | 26.7 | 29 | 29 |
| 25 | 1 | 33.4 | 38 | 38 |
| 32 | 11/4 | 42.2 | 48 | 48 |
| 40 | 11/2 | 48.3 | 57 | 57 |
| 50 | 2 | 60.3 | 64 | 64 |
| 65 | 21/2 | 73.0 | 76 | 76 |
| 80 | 3 | 88.9 | 86 | 86 |
| 90 | 31/2 | 101.6 | 95 | 95 |
| 100 | 4 | 114.3 | 105 | 105 |
| 125 | 5 | 141.3 | 124 | 124 |
| 150 | 6 | 168.3 | 143 | 143 |
| 200 | 8 | 219.1 | 178 | 178 |
| 250 | 10 | 273.0 | 216 | 216 |
| 300 | 12 | 323.8 | 254 | 254 |
| 350 | 14 | 355.6 | 279 | 279 |
| 400 | 16 | 406.4 | 305 | 305 |
| 450 | 18 | 457.0 | 343 | 343 |
| 500 | 20 | 508.0 | 381 | 381 |
| 550 | 22 | 559.0 | 419 | 419 |
| 600 | 24 | 610.0 | 432 | 432 |
| 650 | 26 | 660.0 | 495 | 495 |
| 700 | 28 | 711.0 | 521 | 521 |
| 750 | 30 | 762.0 | 559 | 559 |
| 800 | 32 | 813.0 | 597 | 597 |
| 850 | 34 | 864.0 | 635 | 635 |
| 900 | 36 | 914.0 | 673 | 673 |
| 950 | 38 | 965.0 | 711 | 711 |
| 1000 | 40 | 1016.0 | 749 | 749 |
| 1050 | 42 | 1067.0 | 762 | 711 |
| 1100 | 44 | 1118.0 | 813 | 762 |
| 1150 | 46 | 1168.0 | 851 | 800 |
| 1200 | 48 | 1219.0 | 889 | 838 |
| 1300 | 52 | 1321.0 | 965 | 914 |
| 1400 | 56 | 1422.0 | 1041 | 965 |
| 1600 | 64 | 1626.0 | 1194 | 1092 |
| 1700 | 68 | 1727.0 | 1270 | 1168 |
| 1800 | 72 | 1829.0 | 1320 | 1245 |
| 1900 | 76 | 1930.0 | 1422 | 1320 |
| 2000 | 80 | 2032.0 | 1499 | 1397 |
Notes
1) Besides the above mentioned standards, the standards of GB/T 10752 SH 3408 SH 3409 HG/T 21635 HG/T 21631 SY/T 0510 DL/T 695 EN 10253 etc.are also applied.
2) For the straight tees with DN≥650(NPS 26)and the reducing tees with DN≥350(NPS 14 , the outlet sizes are recommended to use (that mean the other sizes may be applied).
3) For the tees and crosses with the sizes larger than that listed in the above table,they will be supplied subject to the sized agreed by purchaser and manufacturer or according to manufacturer's size.
| Nominal Size | BUTT WELD TEE WEIGHT | ||||||||||||
| DN | NPS | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2 | - | 0.15 | 0.16 | 0.16 | - | 0.20 | 0.20 | - | - | - | 0.25 | 0.35 |
| 20 | 3/4 | - | 0.18 | 0.20 | 0.20 | - | 0.30 | 0.30 | - | - | - | 0.35 | 0.45 |
| 25 | 1 | - | 0.27 | 0.28 | 0.28 | - | 0.45 | 0.45 | - | - | - | 0.54 | 0.77 |
| 32 | 1 1/4 | - | 0.46 | 0.55 | 0.55 | - | 0.70 | 0.70 | - | - | - | 0.91 | 1.26 |
| 40 | 1 1/2 | - | 0.68 | 0.78 | 0.78 | - | 1.25 | 1.25 | - | - | - | 1.39 | 1.83 |
| 50 | 2 | - | 0.96 | 1.17 | 1.17 | - | 1.61 | 1.61 | - | - | - | 2.39 | 2.89 |
| 65 | 2 1/2 | - | 2.06 | 2.21 | 2.21 | - | 2.92 | 2.92 | - | - | - | 3.81 | 5.21 |
| 80 | 3 | - | 2.87 | 3.23 | 3.23 | - | 4.42 | 4.42 | - | - | - | 6.17 | 8.01 |
| 90 | 3 1/2 | - | 3.65 | 4.33 | 4.33 | - | 5.95 | 5.95 | - | - | - | - | - |
| 100 | 4 | - | 4.56 | 5.68 | 5.68 | - | 7.88 | 7.88 | - | 10.0 | - | 11.8 | 14.5 |
| 125 | 5 | - | - | 9.08 | 9.08 | - | 12.9 | 12.9 | - | 16.8 | - | 20.5 | 24.0 |
| 150 | 6 | - | - | 13.6 | 13.6 | - | 20.5 | 20.5 | - | 26.1 | - | 32.5 | 38.1 |
| 200 | 8 | 17.5 | 22.0 | 25.5 | 25.5 | 31.8 | 38.7 | 38.7 | 45.4 | 54.1 | 60.4 | 66.6 | 64.6 |
| 250 | 10 | 28.0 | 37.1 | 44.8 | 44.8 | 59.2 | 59.2 | 69.7 | 83.3 | 96.6 | 113 | 125 | 113 |
| 300 | 12 | 42.6 | 55.7 | 63.1 | 68.1 | 93.0 | 83.2 | 112 | 137 | 160 | 178 | 204 | 160 |
| 350 | 14 | 64.5 | 76.3 | 76.3 | 88.7 | 119 | 101 | 148 | 183 | 211 | 238 | 264 | - |
| 400 | 16 | 78.2 | 95.7 | 95.7 | 126 | 164 | 126 | 191 | 252 | 294 | 342 | 375 | - |
| 450 | 18 | 102 | 141 | 121 | 179 | 237 | 160 | 269 | 357 | 419 | 471 | 529 | - |
| 500 | 20 | 168 | 198 | 150 | 235 | 317 | 190 | 365 | 489 | 566 | 651 | 724 | - |
| 550 | 22 | 185 | 241 | 182 | - | 414 | 241 | 482 | 636 | 743 | 846 | 947 | - |
| 600 | 24 | 222 | 305 | 205 | 340 | 516 | 272 | 589 | 796 | 930 | 1046 | 1174 | - |
| 650 | 26 | 340 | - | 254 | - | - | 337 | - | - | - | - | - | - |
| 700 | 28 | 390 | 478 | 289 | - | - | 383 | - | - | - | - | - | - |
| 750 | 30 | 420 | 549 | 332 | - | - | 441 | - | - | - | - | - | - |
| 800 | 32 | 480 | 627 | 379 | 631 | - | 503 | - | - | - | - | - | - |
| 850 | 34 | 540 | 709 | 429 | 714 | - | 569 | - | - | - | - | - | - |
| 900 | 36 | 610 | 796 | 481 | 872 | - | 639 | - | - | - | - | - | - |
| 950 | 38 | - | - | 537 | - | - | 713 | - | - | - | - | - | - |
| 1000 | 40 | - | - | 598 | - | - | 791 | - | - | - | - | - | - |
| 1050 | 42 | - | - | 636 | - | - | 846 | - | - | - | - | - | - |
| 1100 | 44 | - | - | 712 | - | - | 946 | - | - | - | - | - | - |
| 1150 | 46 | - | - | 779 | - | - | 995 | - | - | - | - | - | - |
| 1200 | 48 | - | - | 850 | - | - | 1080 | - | - | - | - | - | - |
| 1300 | 52 | - | - | 917 | - | - | - | - | - | - | - | - | - |
| 1400 | 56 | - | - | 1065 | - | - | - | - | - | - | - | - | - |
| 1500 | 60 | - | - | 1226 | - | - | - | - | - | - | - | - | - |
| 1600 | 64 | - | - | 1398 | - | - | - | - | - | - | - | - | - |
| 1700 | 68 | - | - | 1580 | - | - | - | - | - | - | - | - | - |
| 1800 | 72 | - | - | 1740 | - | - | - | - | - | - | - | - | - |
| 1900 | 76 | - | - | 1980 | - | - | - | - | - | - | - | - | - |
| 2000 | 80 | - | - | 2290 | - | - | - | - | - | - | - | - | - |
