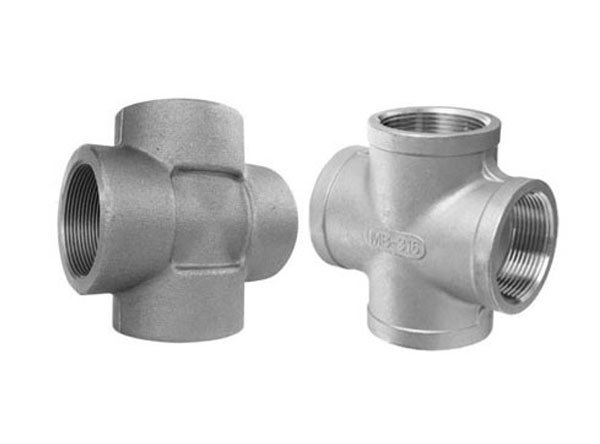

What is ASME B16.11 Threaded Cross
ASTM A16.11 threaded cross may be a kind of pipe fitting that be utilized within the put where four pipes meet together. The screw threaded cross may have one channel and three outlets, or their gulfs and one outlet. The distance across the outlet and inlet can be the same and can too be diverse. That's to say, straight cross and reducing cross are both available.
There are mainly two two different standards for threaded pipe fittings, ASME B 16.11 and BS3799. Stainless steel threaded cross fittings we should always apply ASME B16.11 standards, it includes ratings, dimensions, tolerances, markings and material requests for all forged fittings which was made by America government in 1992.
Threaded Cross Specification
Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
Size | 1/8″~4″ (DN6~DN100) |
Class | 3000 LBS, 6000 LBS, 9000 LBS |
Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
Form | Threaded Cross, Threaded Pipe Cross, Threaded Equal Cross |
Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
ASME | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
DIN | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
EN | EN10253-1, EN10253-2 |
Material of NPT Cross
Carbon Steel Threaded Equal Cross | ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80) |
Stainless Steel Threaded Equal Cross | ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409 |
Alloy Steel Threaded Equal Cross | ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91 |
Titanium Threaded Equal Cross | ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5 |
Inconel Threaded Equal Cross | ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 Threaded Equal Cross |
Hastelloy Threaded Equal Cross | ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges |
Monel Threaded Equal Cross | ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
Alloy 20 Threaded Equal Cross | ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3 |
Nickel Threaded Equal Cross | ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC |
Duplex Threaded Equal Cross | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
Super Duplex Threaded Equal Cross | S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
Incoloy Threaded Equal Cross | ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges |

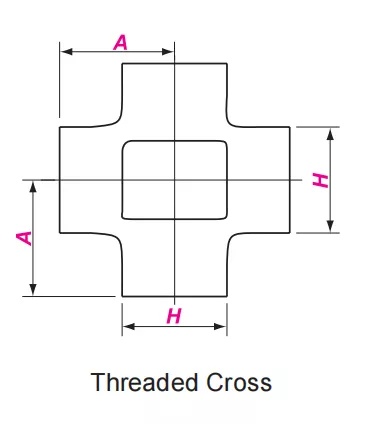

ASME B16.11 Threaded Cross Dimensions
NPS | Min Length of Thread | Outside Dia of Band D | Center to End A | Min WT | |
B | J | ||||
1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
2 | 19 | 19.2 | 75 | 60 | 4.27 |
2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
4 | 27.7 | 33 | 146 | 106 | 6.55 |
Threaded Equal Cross Class 3000 Dimensions NPS 1/2 to 4
NPS | Min Length of Thread | Outside Dia of Band D | Center to End A | Min WT | |
B | J | ||||
1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
1.1/4 | 17 | 18 | 62 | 51 | 5.28 |
1.1/2 | 17.8 | 18.4 | 75 | 60 | 5.56 |
2 | 19 | 19.2 | 84 | 64 | 7.14 |
2.1/2 | 23.6 | 28.9 | 102 | 83 | 7.65 |
3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
4 | 27.7 | 33 | 152 | 114 | 11.18 |
Threaded Cross Dimensions NPS 1/2 to 4 Class 6000
NPS | Min Length of Thread | Outside Dia of Band D | Center to End A | Min WT | |
B | J | ||||
1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
1 | 14.7 | 17.3 | 62 | 51 | 9.9. |
1.1/4 | 17 | 18 | 75 | 60 | 10.59 |
1.1/2 | 17.8 | 18.4 | 84 | 64 | 11.07 |
2 | 19 | 19.2 | 102 | 83 | 12.09 |
2.1/2 | 23.6 | 28.9 | 121 | 95 | 15.29 |
3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
4 | 27.7 | 33 | 152 | 114 | 18.67 |
Package of ASME B16.11 Threaded Cross
Pack into suitable cartons for various items.
Label list onto cartons and wrap them.
Put all packed cartons into wooden box.
Make packing list for each wooden box.
