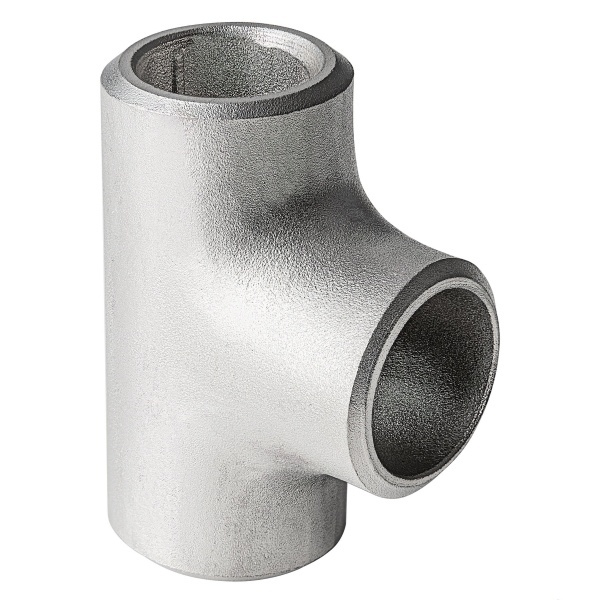

We are a manufacturer, supplier and exporter of ASME B16.9 butt weld equal and reducing tee in China.

ANSI / ASME B16.9 steel pipe tee dimensions and weight chart is free for you.

0
0

Shape Type: Equal and Reducing

Size Range: 1/2" - 80" / DN15 - 2000

Thickness Schedule: SCH 10 - SCH 160, XXS

Standard: ANSI / ASME B16.9

0
0

Type: Long Pattern (LP) and Short Pattern (SP)

Size Range: 1/2” - 24” / DN15 - 600

Thickness Schedule: SCH 10 - SCH 160, XXS

0
0

Size Range: 3/4" - 60" / DN20 - 1500

Thickness Schedule: SCH 10 - SCH 160, XXS

Standard: ANSI / ASME B16.9 / MSS SP 43

0
0

Size Range: 3/4" - 60" / DN20 - 1500

Thickness Schedule: SCH 10 - SCH 160, XXS

Standard: ANSI / ASME B16.9 & MSS SP-43

0
0

Size Range: 1/2" - 48" / DN15 - 1200

Thickness Schedule: SCH 10 - SCH 160, XXS

Standard: ANSI / ASME B16.9

0
0

Type: 90 Degree and 45 Degree

Shape: Straight and Reducing Elbow

Size: 1/8” – 4” / DN6 - DN100

0
0

Shape: Equal and Reducing Tee

Size: 1/8"- 4" / DN6 - DN100

Pressure: Class 3000LBS, 6000Lbs, 9000lbs.

Standard: ASME B16.11, BS3799

0
0

Shape: Equal Cross Tee and Reducing Cross Tee

Size Range: 1/8” – 4” / DN6 - DN100

Pressure Rating: Class 3000lbs, 6000lbs, 9000lbs.

Standard: GB/T 14383, ASME B16.11, BS3799

0
0

Type: Full Coupling and Half Coupling

Shape: Straight Coupling and Reducing Coupling

Size Range: 1/8” – 4” / DN6 - DN100

Pressure Rating: Class 3000lbs, 6000lbs, 9000lbs

0
0

Size Range: 1/8” - 3” / DN6 - DN80

Pressure Rating: Class 3000lbs


Standard: MSS SP-83

0
0

Type: 90 Degree and 45 Degree Elbow

Shape: Straight and Reducing Elbow

Thread Type: NPT, PT, BSPP, BSPT, PF

0
0

Shape: Equal and Reducing Tee

Size Range: 1/8” – 4” / DN6 - DN100



Pressure Rating: Class 2000 lbs, 3000 lbs, 6000 lbs

0
0

Shape: Equal and Reducing

Size: 1/8" -  4" / DN6 - DN100



Pressure: Class 2000 lbs, 3000 lbs, 6000 lbs

0
0

Type: Full and Half Coupling

Shape: Straight and Reducing Coupling

Thread Type: NPT, PT, BSPP, BSPT, PF

0
0

Size Range: 1/8” – 4” / DN6 - DN100

Pressure Rating: Class 3000lbs, 6000lbs



Standard: ASME B16.11, BS3799, EN 10241

0
0

Size Range: 1/8” - 3” / DN6 - DN80

Pressure Rating: Class 3000lbs



Standard: MSS SP-83

0
0

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Threadolet

Size Range: 1/8" - 4" / DN6 - DN100

Pressure Rating: Class 3000lbs, 6000lbs

Standard: MSS SP-97

Thread Type: NPT, PT, BSPP, BSPT, PF

Availability:
Quantity:

Threadolet have a female thread connection in its bore section that screwed to the fittings, it is manufactured as standard MSS MS-97. It typically is in the size range of 1/2″ to 2” and is welded over a hole either drilled or burned in the pipe.


Branch outlet pipe fittings are providing an outlet from a larger pipe to a smaller one. They are used to instead of connected fittings such as reducing tees, reinforcing plates, and reinforced pipe sections.


There are many types based on the varity piping connected methods that weldolet, thredolet, sockolet, latrolet, elbolet, nipolet, sweepolet and flangolet. Why they are popular, because its outstanding advantages, such as safety, reliability, low cost and simple construction.

Threadolet Fitting Size Chart


Size Range 1/8" - 4" / DN6 - DN100
Pressure Rating Class 3000lbs, 6000lbs
Standard MSS SP-97
Thread Type NPT, PT, BSPP, BSPT, PF
Carbon Steel ASTM A105 / A105N
Low Temp Carbon Steel ASTM A350 LF2 / LF3
Alloy Steel ASTM A182 F11 / 12 / 5 / 9 / 91 / 92 / 22
Pipeline Steel ASTM A694 F42 / 46 / 56 / 60 / 65
Stainless Steel A STM A182 F304/304L/304H, 316/316L, 310S, 317 ,347, 904L, 321
Duplex Stainless Steel ASTM A182 F51, F53, F44


ASME MSS SP 97 Threadolet Dimensions


Threadolet Drawing

DN
NPS DN NPS A D1 D2 L d1
3000 6000 3000 6000 3000 6000 3000 6000
8~900 1/4~36 6 1/8 19 - 27 - 22 - 6.7 16 -
10~900 3/8~36 8 1/4 19 - 27 - 22 - 10.2 16 -
15~900 1/2~36 10 3/8 21 - 30 - 25 - 10.4 19 -
20~900 3/4~36 15 1/2 25 32 38 45 33 42 13.6 24 19
25~900 1~36 20 3/4 27 37 47 52 39 48 13.9 30 25
32~900 11/4~36 25 1 33 40 56 63 48 58 17.3 36 33
40~900 11/2~36 32 11/4 33 41 66 72 58 67 18.0 45 38
50~900 2~36 40 11/2 35 43 75 83 64 77 18.4 51 49
65~900 21/2~36 50 2 38 52 90 104 77 93 19.2 65 59
80~900 3~36 65 21/2 46 - 105 - 94 - 28.9 76 -
100~900 4~36 80 3 51 - 124 - 114 - 30.5 94 -
125~900 5~36 100 4 57 - 154 - 140 - 33.0 121

-


Threadolet Weight Chart in KG


Threadolet Weight Chart
